Functional Description
NITX-315/NITX-315-ET Installation and Use (6806800L71D)
60
4.4
PCI-E Port
There are a total of four x1 PCI-E Gen1 ports in the TNC. The following figure displays the PCI-
E ports configuration:
4.5
SATA
Two SATA ports are routed to the connector from the Topcliff, the SATA rate is 3Gbps and
supports AHCI. One port is a 7-pin SATA connector, another is a 15-power+7signals connector
which is used for "Slim Lite SSD".

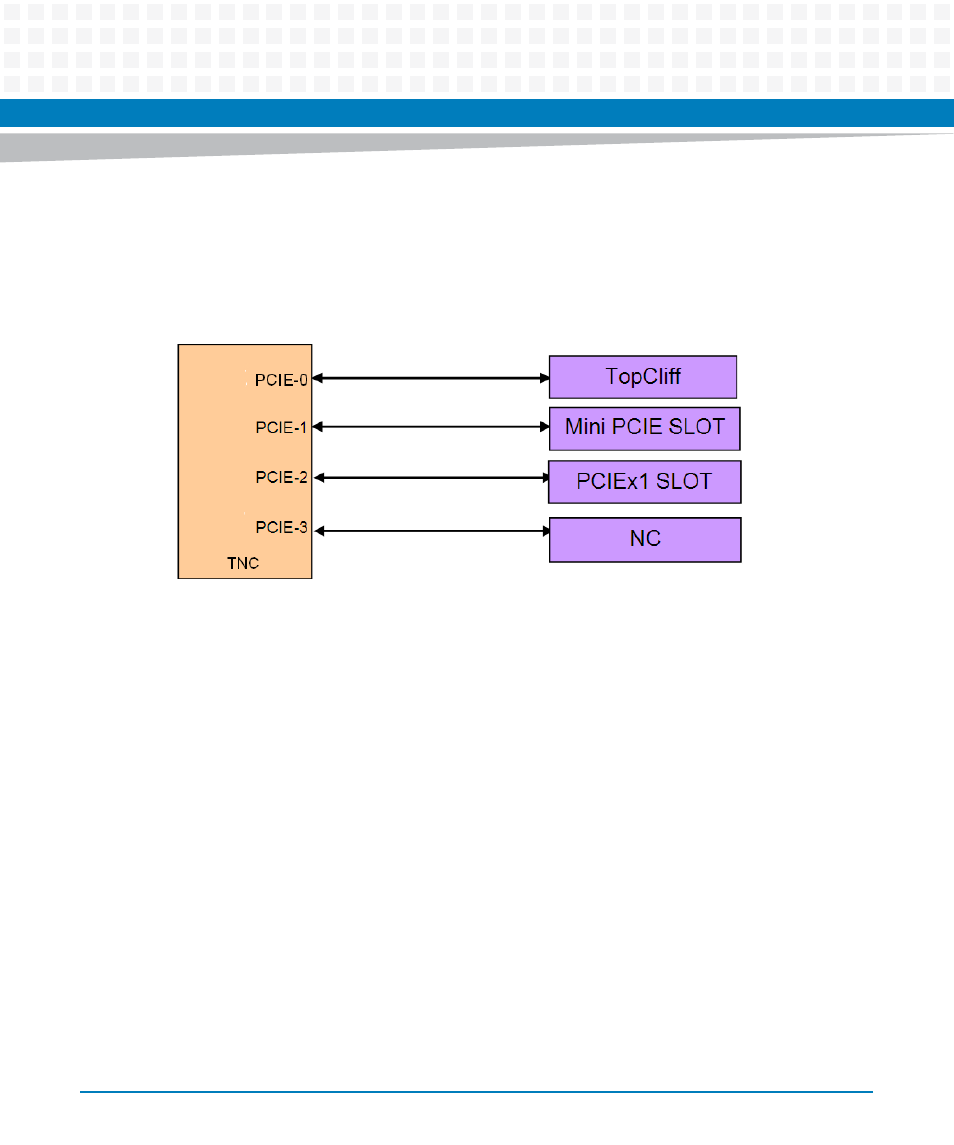

Figure 4-2
PCI-E Connection Diagram
