Controls, LEDs and Connectors

ATCA-F120 Installation and Use (6806800D06J)

53

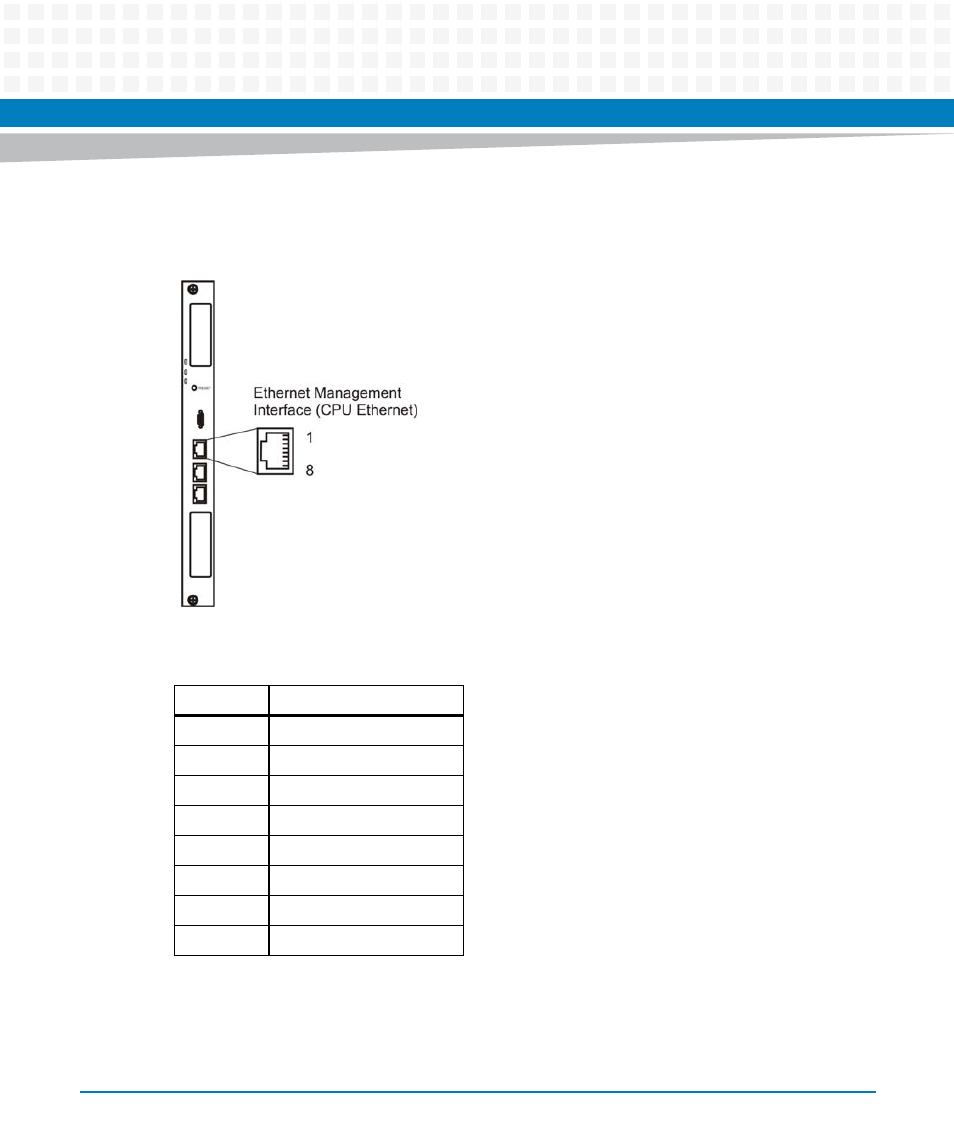

Figure 3-4

Location of Ethernet Management Interface

Table 3-2 Ethernet Management Connector Pinout

Pin

Signal (1000Base-T)

1

ETH_DA+

2

ETH_DA-

3

ETH_DB+

4

ETH_DC+

5

ETH_DC-

6

ETH_DB-

7

ETH_DD+

8

ETH_DD-
