Installing the MoCA Adapters
SBM1000 SMART Video Adapter Kit • User Guide
36
590631-001-a

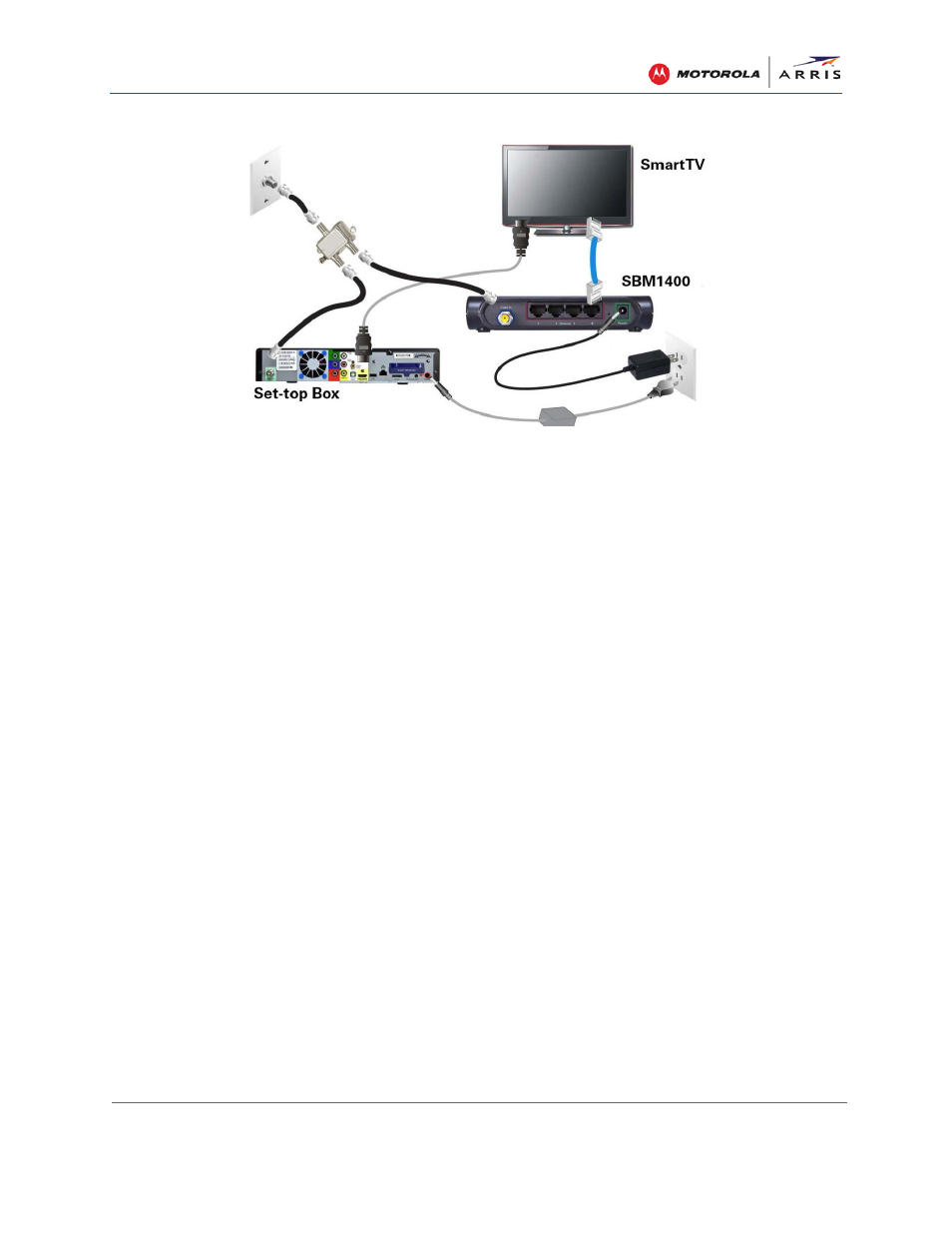

Figure 31 – Room 1: SBM1400 Adapter Installation
4. Connect a second coaxial cable (included) to the Coax In connector on the SBM1400 and
one of the OUT connectors on the RF splitter (included), see Figure 31.
Note
: You can use either OUT connector on the RF splitter (included) for this installation.
5. Connect a third coaxial cable (included) to the coaxial connector on the TV or ATA set-top box
and the other OUT connector on the RF splitter.
6. Connect one of the Ethernet cables (included) to one of the Ethernet ports on the SBM1400
and the Ethernet/Network port on your Smart TV or other Smart device.
Repeat for each additional SBM1400 Ethernet connection with other networked audio-visual
devices, if applicable.
7. Connect one of the power adapters (included) to the Power port on the SBM1400 and plug it
into the electrical wall outlet.
Install the SBM1100 (see Room 2 in Figure 30).
8. Connect the coaxial cable (included) to the Coax In connector on the SBM1100 and the RF
port on the cable wall outlet.
9. Connect one of the Ethernet cables (included) to one of the Ethernet LAN ports on your
gateway and the Ethernet port on the rear of the SBM1100.
10. Connect one of the power adapters (included) to the Power port on the SBM1100 and plug it
into an electrical wall outlet.
ο The Coax LEDs on both MoCA adapters should turn ON within five minutes to indicate
that a secure coaxial link was established between the two adapters.
ο If the Coax LED does not turn ON within five minutes, disconnect the power adapter
from both MoCA adapters and then reconnect them, if the COAX LEDs still fail to turn
ON, see
11. Power ON your Smart TV, set-top box, laptop, and any other Ethernet-connected devices.
You can now configure your Smart TV and other Ethernet-enabled devices for Internet access
through their related user interfaces.
