Installing the MoCA Adapters
SBM1000 SMART Video Adapter Kit • User Guide
32
590631-001-a

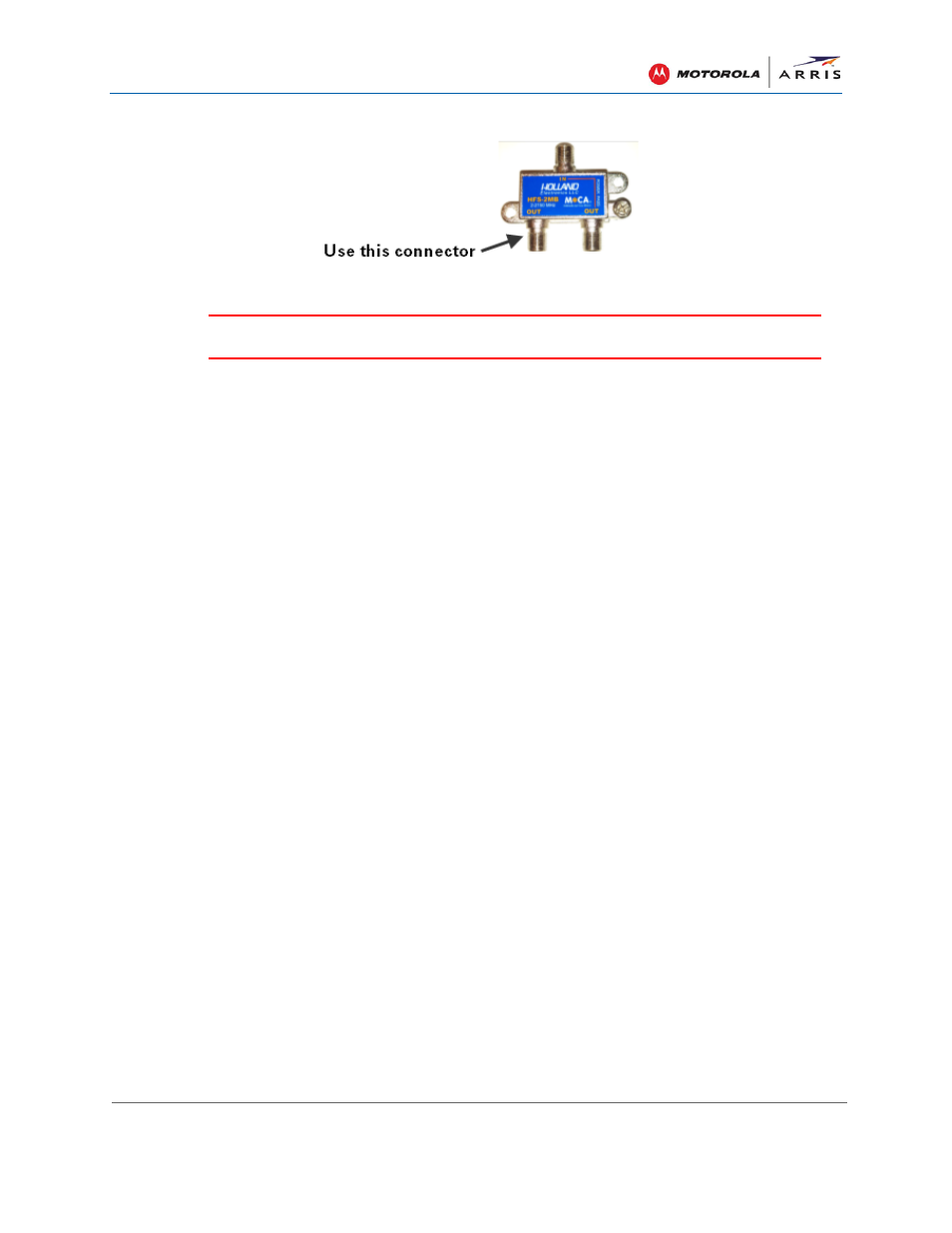

5. Connect a second coaxial cable (included) to the Coax In connector on the SBM1400 and to
the OUT connector that is NOT marked with a red line on the RF splitter (see figure above).
WARNING!
Connecting the MoCA adapter to the wrong OUT connector on the RF
splitter may damage the MoCA adapter.
6. Connect one of the Ethernet cables (included) to one of the Ethernet ports on the SBM1400
and the Ethernet/Network port on your Smart TV or other Smart device (see Figure 27).
Repeat for each additional SBM1400 Ethernet connection with other networked audio-visual
devices, if applicable.
7. Connect one of the power adapters (included) to the Power port on the SBM1400 and plug it
into the electrical wall outlet.
To install the SBM1100 (see Room 2 in Figure 27):
8. Disconnect the coaxial cable from the In port on your Satellite receiver and connect it to the
IN connector on one of the RF splitters (included).
Note
: If Room 2 does not include a Satellite receiver, then skip steps 9 and 10 and connect a
coaxial cable to the Satellite coaxial wall outlet and the Coax In connector on the SBM1100.
9. Connect one of the coaxial cables (included) to the In port on the Satellite receiver and the
OUT connector marked with a
red
line on the RF splitter.
10. Connect a second coaxial cable to the Coax In connector on the SBM1100 and one of the
OUT connectors on the RF splitter (included) that is NOT marked with a red line.
11. Connect one of the Ethernet cables (included) to the Ethernet port on the SBM1100 and one
of the LAN Ethernet/network ports on your gateway/router.
12. Connect one of the power adapters (included) to the Power port on the SBM1100 and plug it
into an electrical wall outlet.
ο The Coax LEDs on both MoCA adapters should turn ON within five minutes to indicate
that a secure coaxial connection was established between the two adapters.
ο If the Coax LED does not turn ON within five minutes, disconnect and then reconnect
the power adapters on the SBM1100 and SBM1400. If the Coax LEDs still fail to turn
ON, see
13. Power ON your Smart TV, set-top box, laptop, and any other Ethernet-connected devices.
You can now configure your Smart TV and other Ethernet-enabled devices for Internet access
through their related user interfaces.
