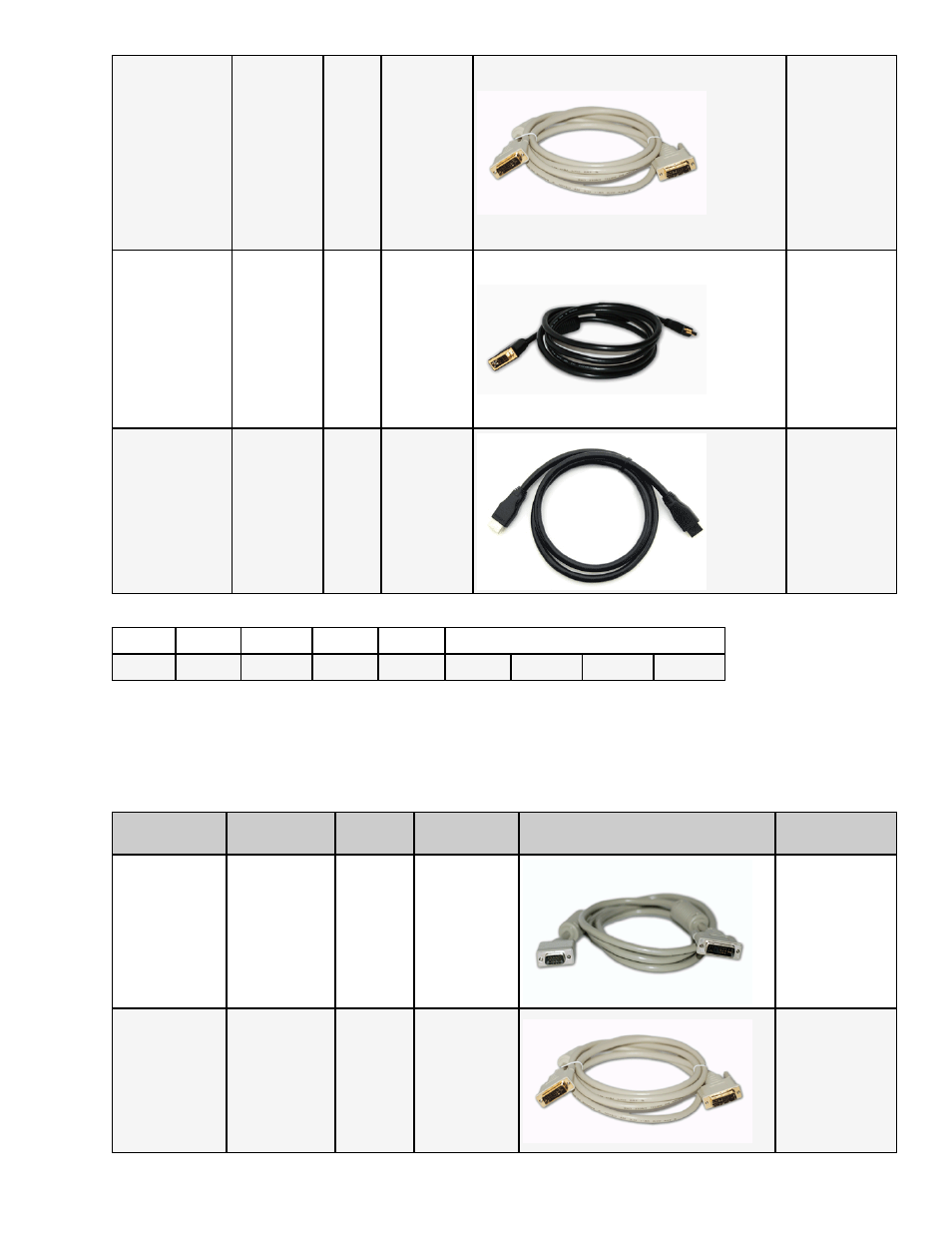

DVI
Single Link
DVI digital
YCrCb or
RGB
Provides only
video. For
audio, use
separate
SPDIF, RCA (l
/r) or
unbalanced
audio cable
depending on
the Adtec
Device.
DVI
Single Link
HDMI digital
YCrCb or
RGB
Provides only
video. For
audio, use
separate
SPDIF, RCA (l
/r) or unblanced
audio cable
depending on
the Adtec
Device.
HDMI (Soloist
HD Pro,
mediaHUB HD
Pro and
mediaHUB-HD
422 Only)
HDMI digital
YCrCb or
RGB Provides audio
and video
Display Targets
NTSC NTSC-J PAL PAL-M 720P24 720P50
720P59 720P60 1080P24 1080I50 1080I59 1080I60 1080P50 1080P59 1080P60
PC Monitor Standards
If you are connecting your device to a PC Monitor or to a monitor that supports PC Graphic Standards, you should use one of
the following Connections and display targets.
Compatible Connections
Connector on
Adtec Device
Connector on
Display
Signal Colorspace Image Notes
DVI
Single Link
VGA (DB15) analog RGB
Provides only
video. For audio,
use separate
SPDIF, RCA (l /r)
or unbalanced
audio cable
depending on the
Adtec Device.
DVI
Single Link
DVI
digital or
analog
RGB
Provides only
video. For audio,
use separate
SPDIF, RCA (l /r)
or unbalanced
audio cable
depending on the
Adtec Device.
