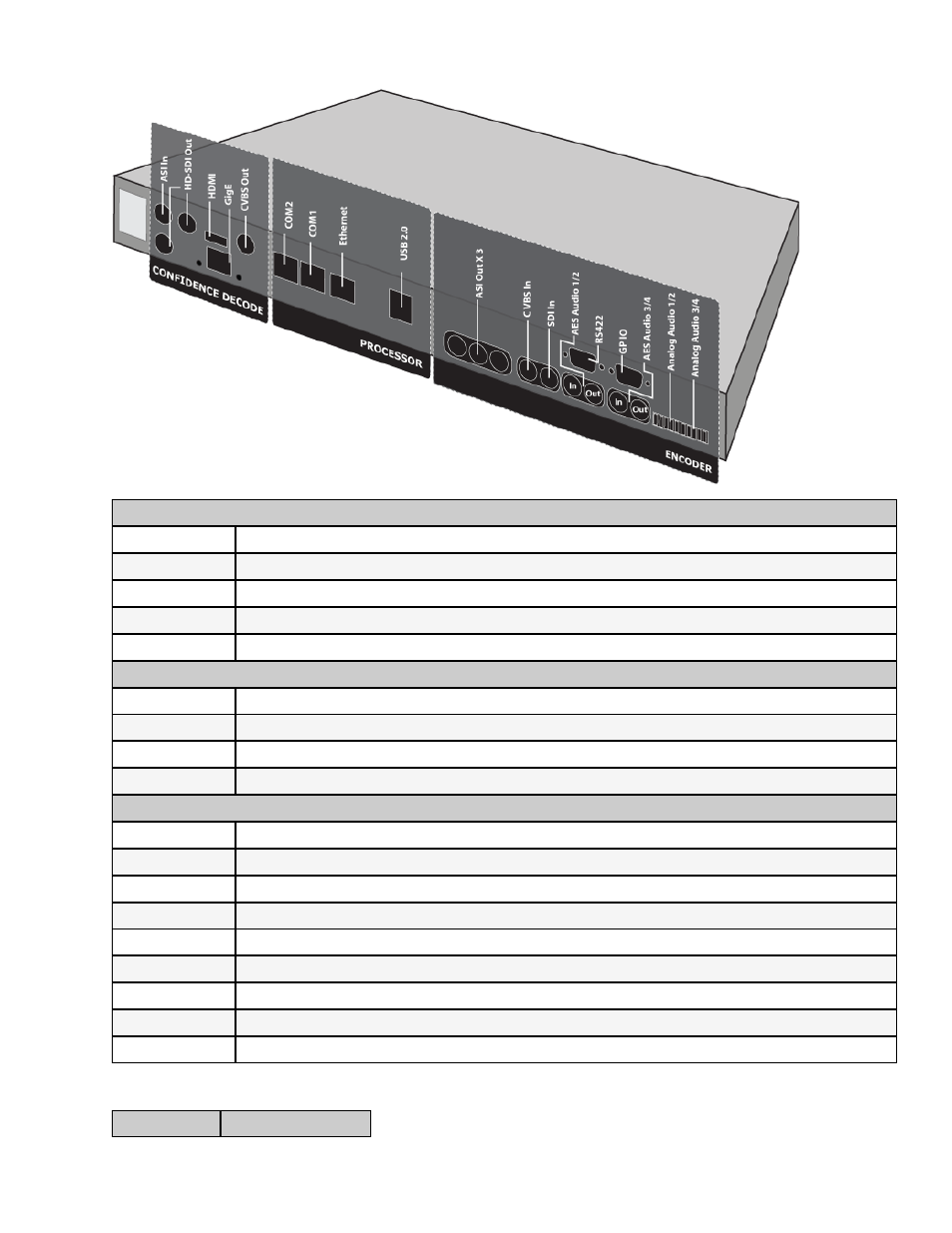

Back Panel
Confidence Decode
ASI In
88 Byte MPEG2 Transport input
HD-SDI Out
HD and SD User-defined resolutions
HDMI
HD and SD User-defined resolutions
GigE
MPEG2 Transport Stream via UDP/RTP or FTP file transfer or SMB mount
CVBS Out
analog video output (Composite); SD only. NTSC and PAL.
Processor
COM2
RS232 Control
COM1
RS232 Terminal
Ethernet
Ethernet 10/100 management
USB 2.0
not currently supported
Encoder
ASI OUT ( x 3)
3 mirrored 188 Byte MPEG2 Transport Out up to 211 Mbs
CVBS In
analog video input; SD only
SDI In
Auto sensing 270MB/1.4GB/3.0GB
AES Audio 1/2
Compressed or uncompressed terminating (75 Ohm) digital audio outputs.
RS422
Connect to media source.9-pin master or slave mode for Sony Protocol control.
GP IO
Parallel IO interface for Start, Stop, Status, Alarm, and general purpose interfacing to control systems.
AES Audio 3/4
Compressed or uncompressed terminating (75 Ohm) digital audio outputs.
Analog Audio 1/2
Analog Balanced (600 Ohm) audio input. Stereo pairs (ch1 and ch2)
Analog Audio 3/4
Analog Balanced (600 Ohm) audio input. Stereo pairs (ch3 and ch4)
Supported SDI Standards:
Standard
Used For
