The Service Tab
The Service Tab is used to set and view configuration options related to transmitting and capture rules.

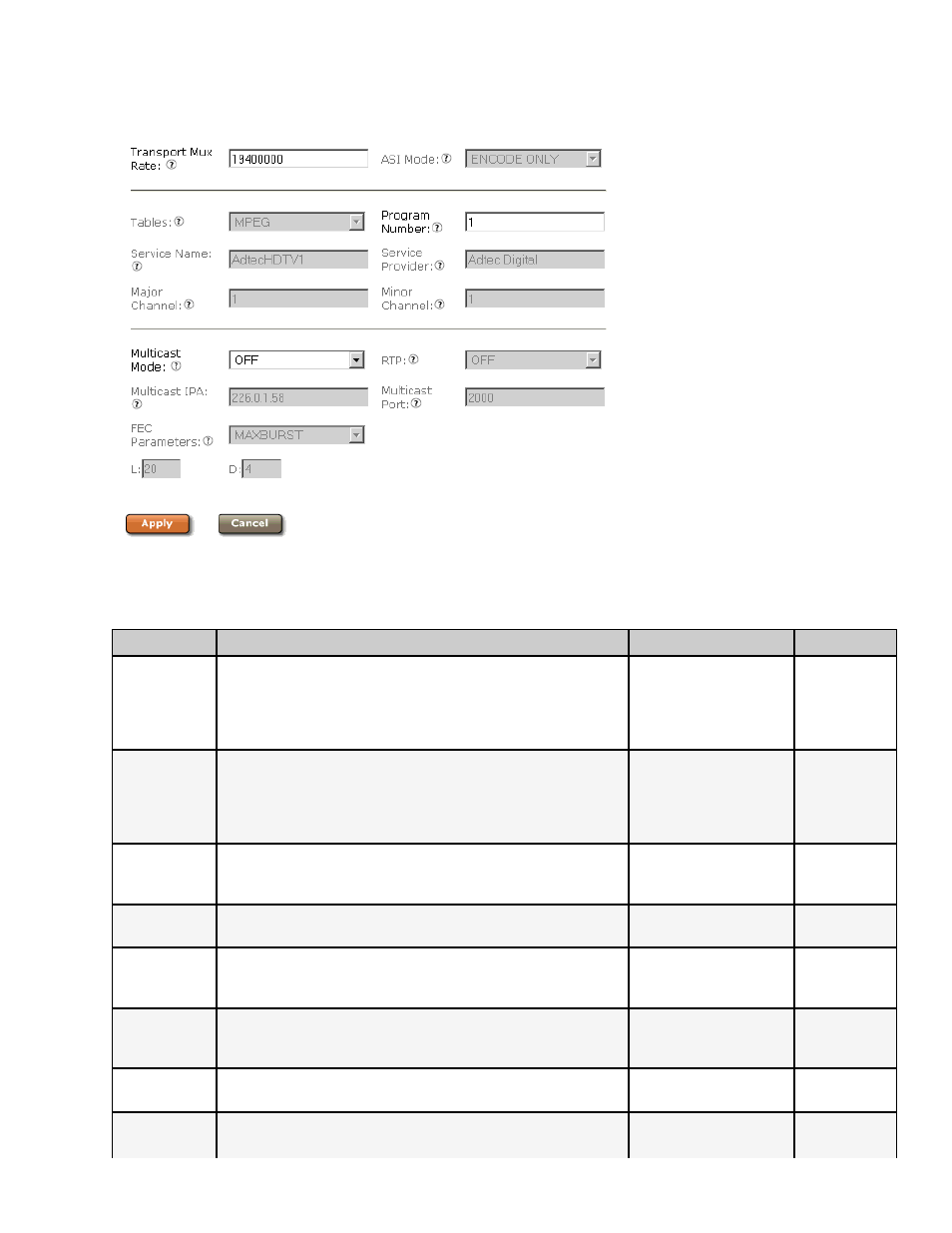

Image reduced for clarity
Controls
Control
Function
Options/Variables
Adtec API
Transport Mux
Rate
desired egress rate of the bitstream in bits per second
range is 1,000,000 - 80,000,000 bits per second
As a shortcut, the value can be entered as Mbps and the
application will convert it on the fly. Example: Entering 19.4 in
the text field will submit 19400000.
text field
*.ECMD TMR
ASI Mode
tell unit to send data constantly through ASI ports or cut off
during periods when unit is idling
When using this application for studio encoding, the ASI Mode is
forced to Encode Only. Studio encoding is enabled when the
Controller Interface is set to RS422 on the Studio Tab.
Continuous = 0
Encode Only = 1
*.ECMD ASM
[option]
Tables
table format for the stream
DVB = [0]
MPEG =[1]
ATSC = [2]
*.ECMD TON
[var]
Service
Name
name of the program or event, carried in the SDT table of a
transport stream
text field; 20-character
limit (incl. spaces)
*.ECMD SNA
Major
Channel
Major Channel Number is carried in the ATSC Static PSIP table
of a transport stream.
Field is active when Tables control is set to ATSC.
text field; 1-99
n/a
Service
Number
The Service Number or Program Number in PAT & PMT packets
identifies which program is associated with which Video & Audio
PIDs.This value should be entered in decimal format
text field
*.ECMD PNU
Service
Provider
name of the party offering the program or event, carried in the
SDT table of a transport stream
text field; 20-character
limit (incl. spaces)
*.ECMD SPR
Minor Channel Minor Channel Number is carried in the ATSC Static PSIP table
of a transport stream.
text field; 0-999
n/a
