10.4 Aligning the WES2HT units
For each WES2HT radio in the system, carry out the following steps:
Upon proper power via PIM or PSE device, the WES2HT unit’s power LED should
be green, ensure that the cable into the LAN port is seated properly.
Align the Client unit(s) to the Host unit so that they are pointing directly towards
each other.
The RSSI level of the link needs to be between 40 – 50dB if possible; to check
this either:
o Look on the back side of the WES2HT unit to determine the RSSI LED
status and re-position if necessary to obtain the best RSSI signal strength,
or
o On the Client unit in the ‘Status’ page of the GUI click on the
button to determine the RSSI level and re-position as necessary. For
further information see Section 11.2.1.5 Align.

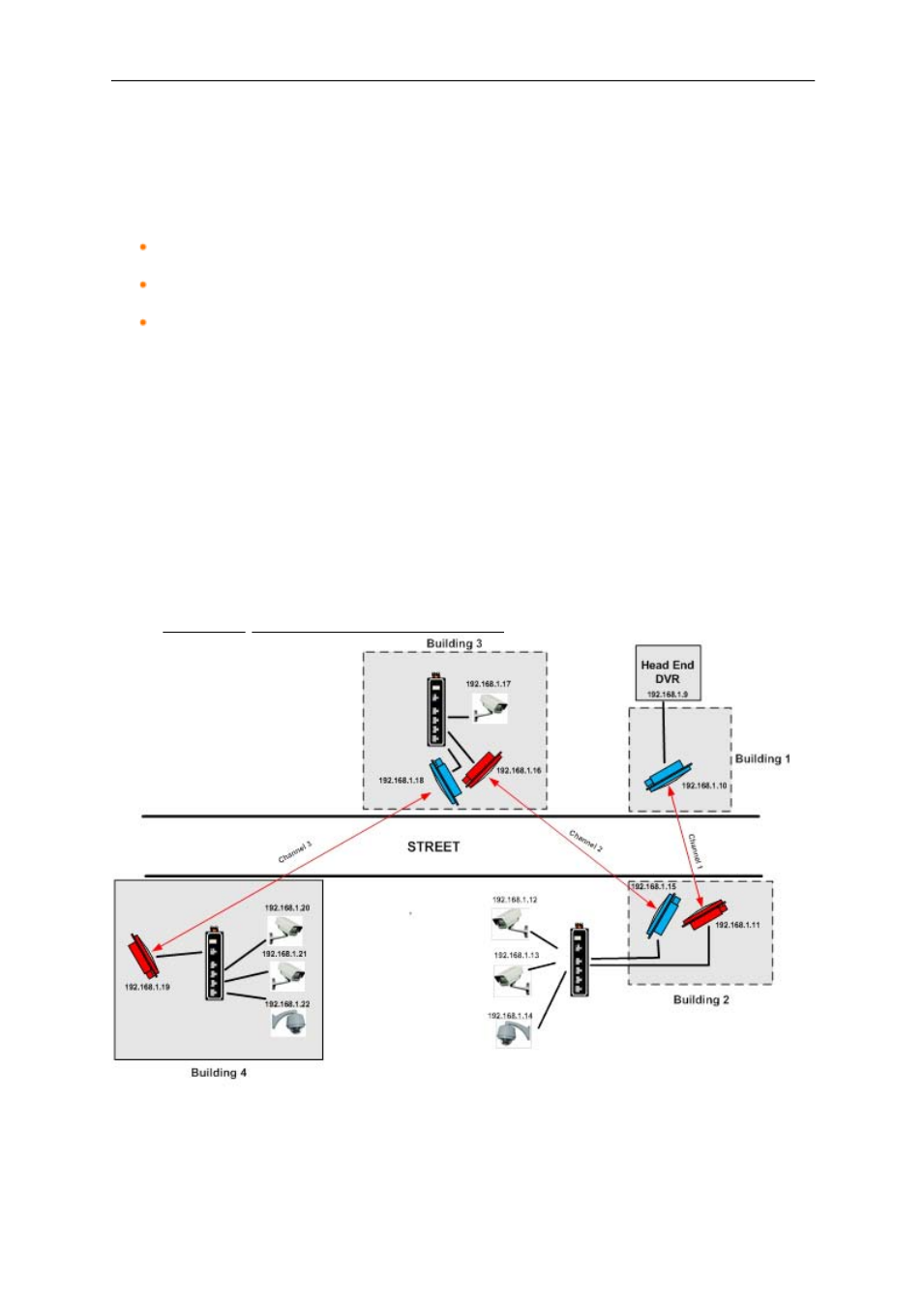

10.5 Configuring IP addresses on a site
When installing multiple point-to-point or point-to-multipoint groups on one site, it is
important to ensure that each piece of equipment has a unique IP address. To change
the WES2HT unit’s IP addresses from their default (192.168.1.200 – Host, 192.168.1
201 – Client) see Section 11.2.6.1 Manual setting.
