6. Connections
6.1 Physical Connections

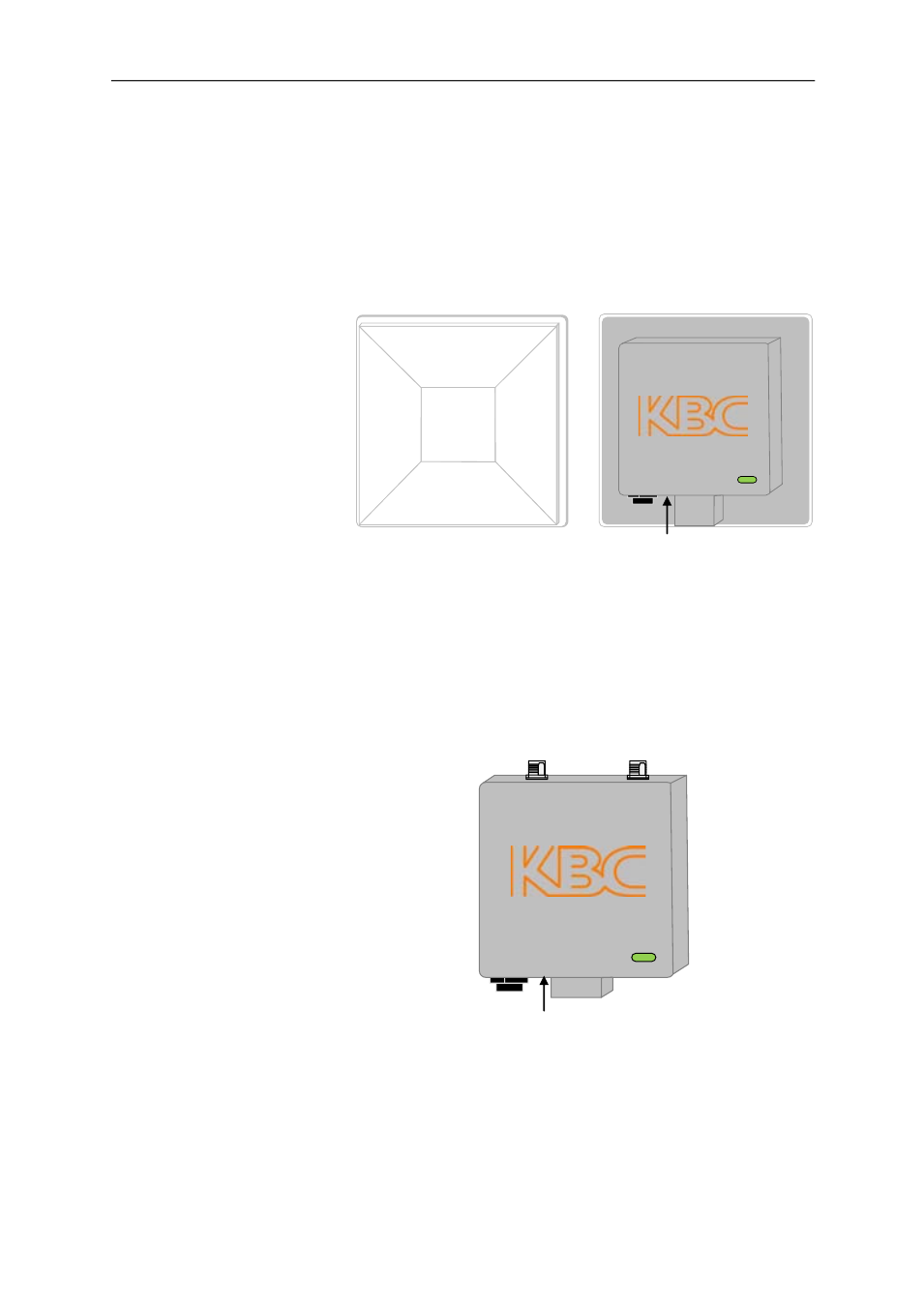

6.1.1 Integrated Patch Antenna Chassis
6.1.2 External Antenna Chassis
Rear view
Note: See Section 11.2.2.3 for details of how to perform a hard reset to default settings.
2
4
5 6
1
Front view Rear view
1. Patch antenna cover
2. Serial number label
3. Internal RF module
enclosure
4. Status LEDs
5. LAN port (RJ45)
6. Mounting block
7. Reset to default button
1 1
3
4
5
6
1. Antenna ports, attach screw down
omni-directional antennas (for directional
antennas, connect jumper LMR-200 cable)
2. Serial number label
3. Internal RF module enclosure
4. Status LEDs
5. LAN port (RJ-45)
6. Mounting block
7. Reset to default button
3
1. Patch antenna cover 2. Serial Number label 3. Internal RF module
enclosure
4. Status LEDs (see page X for description) 5. LAN port (RJ-45) 6. Mounting block
2
1. Patch antenna cover 2. Serial Number label 3. Internal RF module
enclosure
4. Status LEDs (see page X for description) 5. LAN port (RJ-45) 6. Mounting block
