KBC Networks WES2HT - Manual (Page 114)

WES2HT User Manual
Manual-WES2HT-Rev1407-1
Copyright © KBC Networks 2013 Page 113 of 142 www.kbcnetworks.com

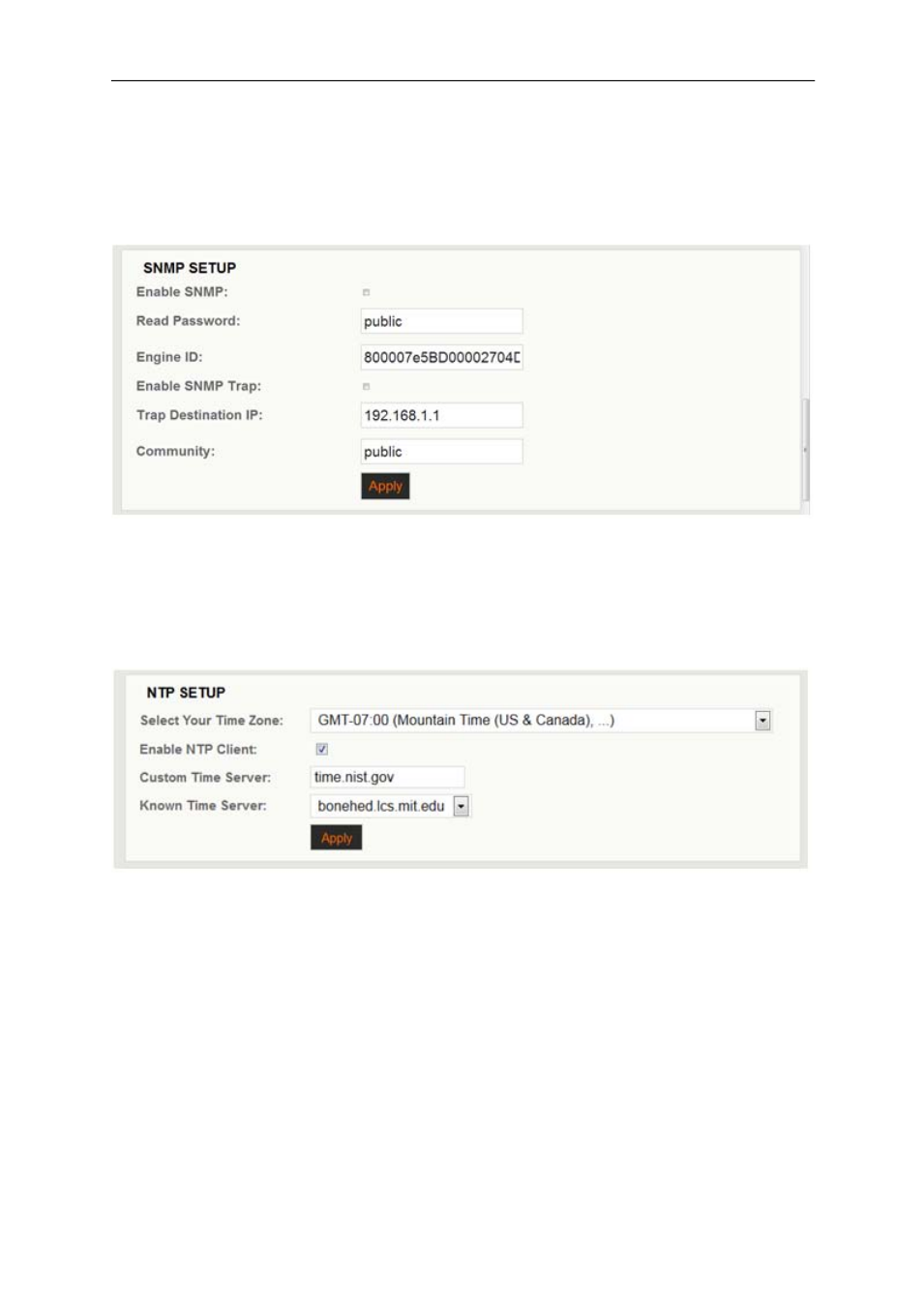

11.2.2.6 Services: SNMP SET UP
The system is compatible with SNMP version 2. This menu option allows you to set up
the SNMP instructions so that the WES2HT unit can communicate with externally
supplied SNMP devices.
11.2.2.7 Services: NTP SETUP
This menu option is used to set the system to Network Time Protocol which allows
synchronization over a network. The node must be connected to the internet for the NTP
set up to take place. Each node connected via the WES2HT link can also be set to the
same NTP by using the identical NTP server and gateway IP.
Select the time zone of the node deployment and check the ‘Known Time Server’ box.
Ensure that all the nodes connected are using the same Known Time Server. Select
and to initiate the NTP set up.
