10.3 Cable lengths when installing WES2HT units

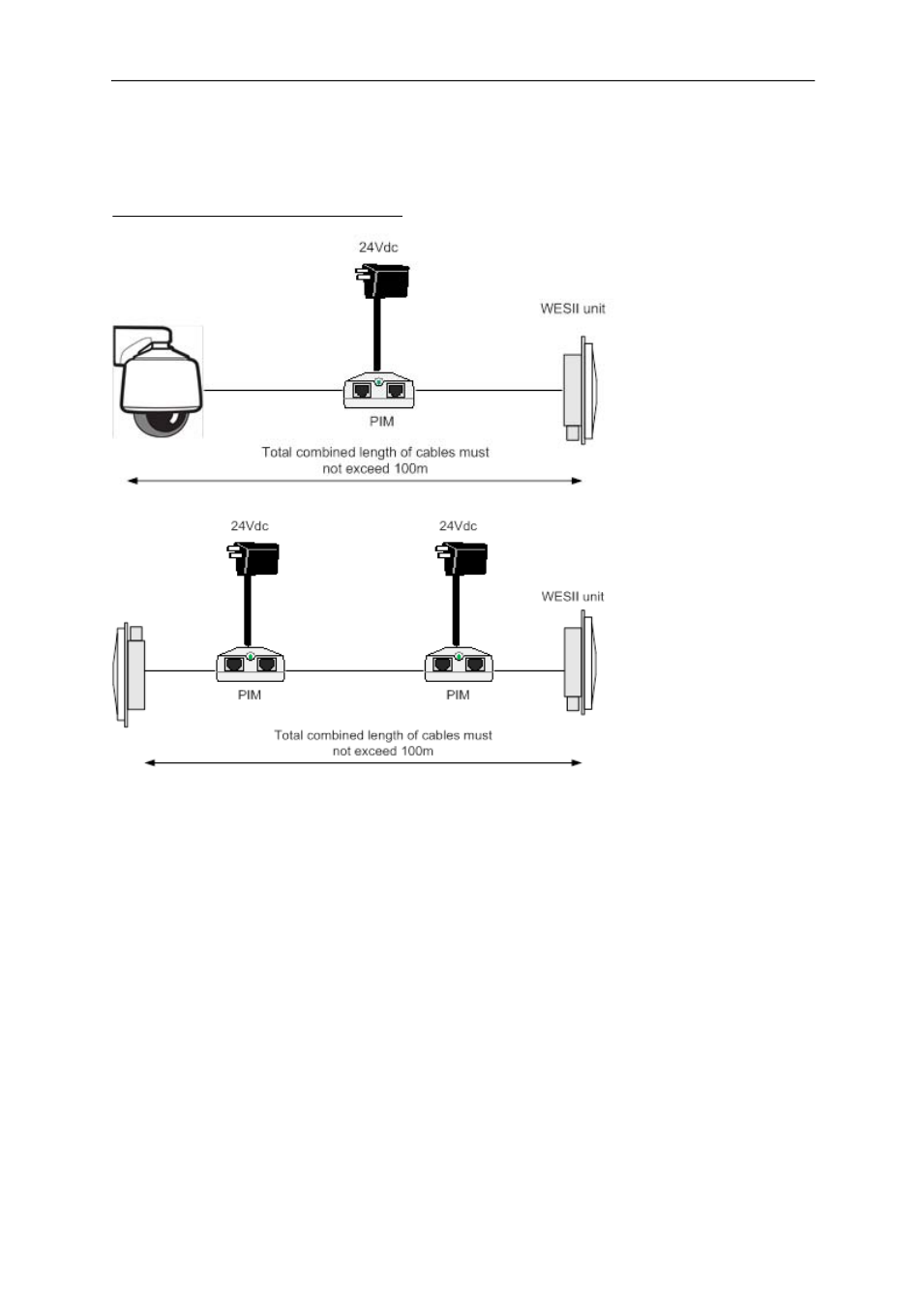

When installing the WES2HT units the total combined length of cables for any
configuration must not exceed 100m.
Note:
The type of Cat5 configuration may be determined by the LAN port of the Ethernet
device. If the port is a 10/100 port, you may require a crossover cable. A crossover
cable is not necessary if the two PIMs connect into an Ethernet switch.
Most cables used to connect the WES2HT system are configured using a straight-through
color code.
