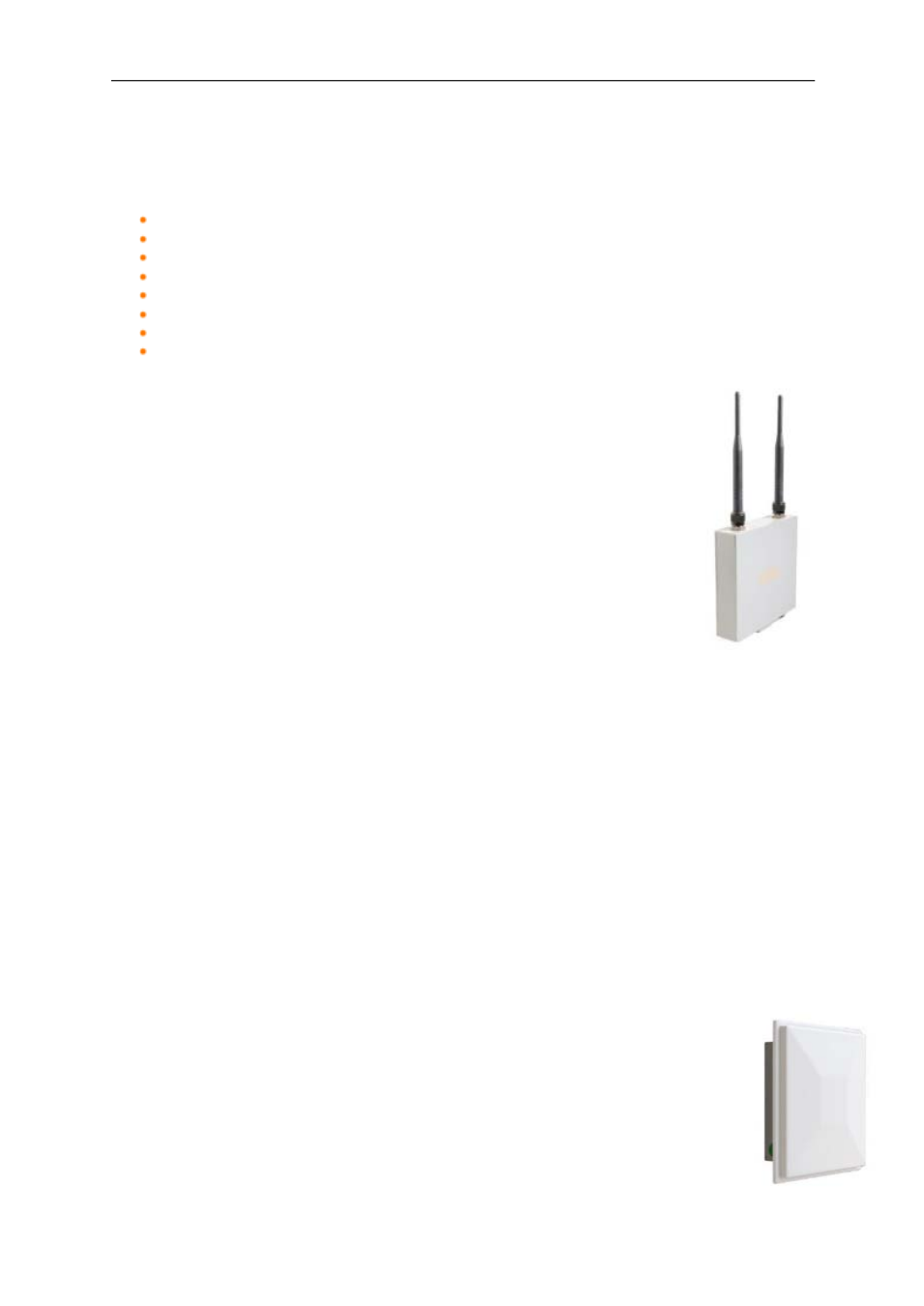

3. Antenna Options
The WES2HT units are available with the following antennas:
2dBi/5dBi dual rated omni-directional antenna for 2.4GHz/4.9GHz & 5GHz
11dBi/13dBi dual rated omni-directional antenna for 2.4GHz/4.9GHz & 5GHz
9dBi integral patch antenna for 4.9GHz & 5GHz operation
11dBi integral patch antenna for 2.4GHz operation
17dBi integral patch antenna 4.9GHz 5GHz operation
9dBi external patch antenna for 4.9GHz & 5GHz operation
11dBi external patch antenna for 2.4GHz operation
17dBi external patch antenna for 4.9GHz & 5GHz operation
3.1 Omni-directional options
3.1.1 2dBi/5dBi
This is a dual frequency rated omni-directional antenna for 2.4GHz,
4.9GHz & 5GHz operation. At 2.4GHz the antenna has a gain of
2dBi and at 4.9GHz & 5GHz the antenna has a gain of 5dBi. The
beamwidth of the antenna is 360°. The WES2HT unit will need two
of these antennae but no connecting cable is necessary.
3.1.1 11dBi/13dBi
This is a dual frequency rated omni-directional high gain antenna
option for 2.4GHz, 4.9GHz & 5GHz operation. At 2.4GHz the antenna has a gain of 11dBi
and at 4.9GHz & 5GHz the antenna has a gain of 13dBi. The beamwidth of the antenna
is 360°. This antenna has two N-Connectors so only one antenna is needed per WES2HT
unit. Each antenna ships with two 1m connecting cables enabling one omni antenna to
connect to both antenna ports on the WES2HT unit.
Note: This antenna is not included in any of the standard WES2HT model kits. It is
designed to be an available high gain omni option when the included 5dBi antennae will
not achieve the necessary distances and connection signal strengths.
3.2 Integrated directional patch antenna options
3.2.1 9dBi
This is an integral directional patch antenna option for 4.9GHz & 5GHz operation. The
antenna is dual polarized. The beamwidth is:
Azimuth: Horizontal 65°, Vertical 65°; Elevation: Horizontal 33°, Vertical 33°
3.2.2 11dBi
This is an integral directional patch antenna option for 2.4GHz operation. The
antenna is dual polarized. The beamwidth is:
Azimuth: Horizontal 56°, Vertical 62°; Elevation: Horizontal 38°, Vertical 26°
