Ethernet Communication Module DVPEN01-SL
DVP-PLC Application Manual
4
Item
Specification
Vibration/ Shock Resistance
Standard: IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC 68-2-27 (TEST Ea)
Electrical specifications
Item
Specification
Power supply voltage
24VDC (-15% ~ 20%) (Power is supplied by the internal bus of MPU.)
Power consumption
1.5W
Insulation voltage
500V
Weight (g)
92 (g)
2

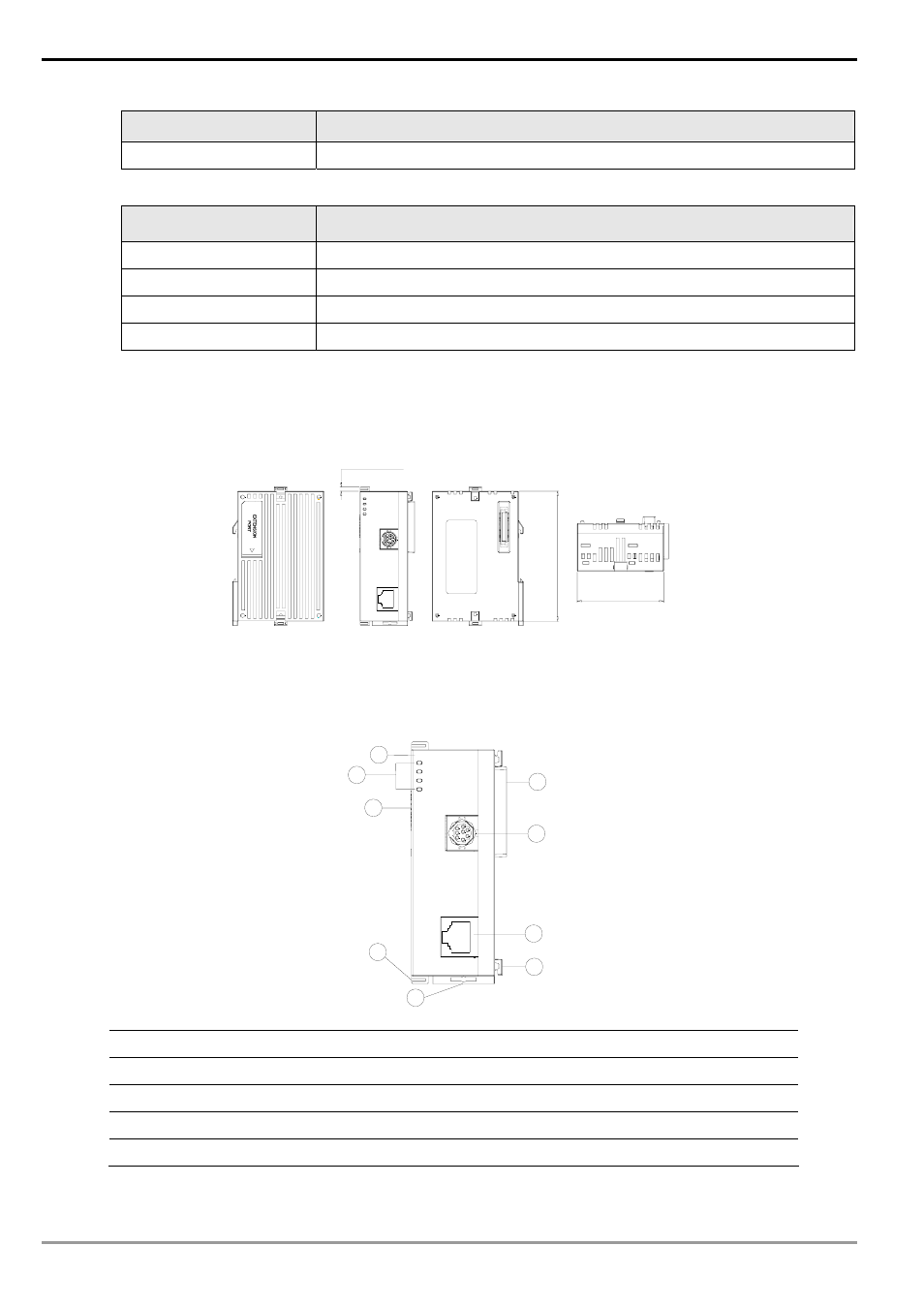

Product Profile & Outline
2.1 Dimension
LAN
RS-232
LINK
DVPEN01
RS-232
POWER
100M
60 [2.362]
90 [3
.543]
3 [0.118]
Unit：mm [inches]
2.2 Product
Profiles
LAN
RS-232
LINK
DVPEN01
RS-232
POWER
100M
1
4
3
7
5
6
9
8
2
1. Model name
6. Fixing tenon for extension unit/module
2. Extension port to connect device
7. Fixing clip for extension unit/module
3. Extension port to connect extension module 8. RS-232 connection port
4. POWER, LINK, RS-232, 100M indicators
9. Ethernet RJ-485 connection port
5. DIN rail clip
