Ethernet Communication Module DVPEN01-SL
DVP-PLC Application Manual
29

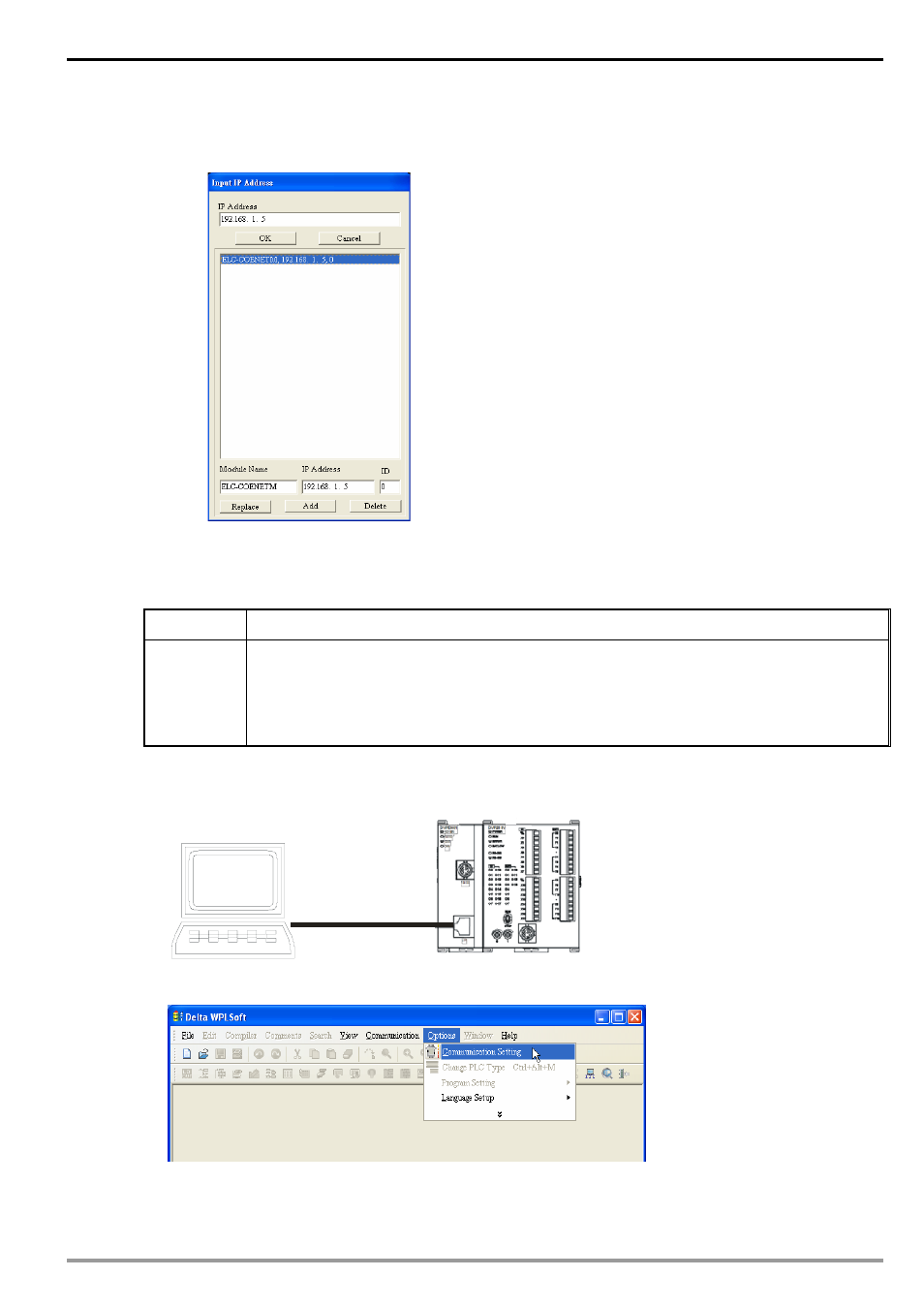

Input IP Address:
Press “Add” to record the IP address of the module into the list.
6 Application
Examples
6.1 Setting up IP and Communicating through WPLSoft
Application
Setting up network parameters of DVPEN01-SL directly on the PC.
Network
requirement
(1) IP of PC executing WPLSoft: 192.168.0.3
(2) Subnet mask: 255.255.255.0; Gateway: 192.168.0.1
(3) IP of DVPEN01-SL: 192.168.0.4
(4) Connect the PC and DVPEN01-SL by RJ-45 cable.
Note:
Both PC and DVPEN01-SL have to adopt static IP.
1. The connection
PC
DVP-PLC
DVPEN01
2. Open "Communication Setting” in WPLSoft.
3. Select “Ethernet” and press "OK”.
