Model scs-101 network interface card, Description, Installing the scs-101 – DMP Electronics Security Control Receiver SCS-1R User Manual

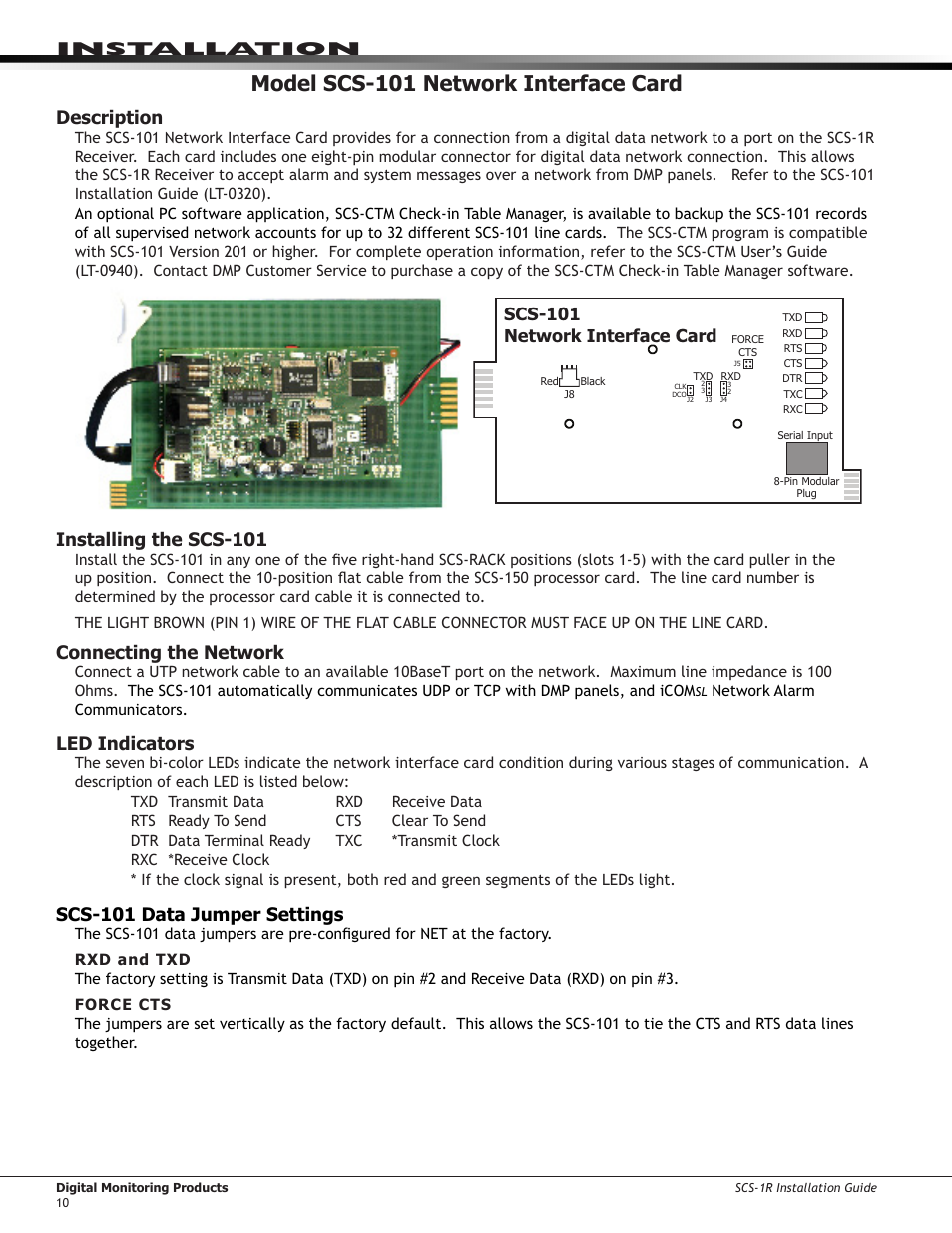

Page 15: Connecting the network, Led indicators, Scs-101 data jumper settings, Rxd and txd, Force cts, Installation, Scs-101 network interface card

Model scs-101 network interface card, Description, Installing the scs-101 | Connecting the network, Led indicators, Scs-101 data jumper settings, Rxd and txd, Force cts, Installation, Scs-101 network interface card | DMP Electronics Security Control Receiver SCS-1R User Manual | Page 15 / 42 Model scs-101 network interface card, Description, Installing the scs-101 | Connecting the network, Led indicators, Scs-101 data jumper settings, Rxd and txd, Force cts, Installation, Scs-101 network interface card | DMP Electronics Security Control Receiver SCS-1R User Manual | Page 15 / 42
