8-8
Examples
Modular Block System: Emergency Stop Circuits
Emergency stop monitoring with automatic start-up, manual start
(operation) and function test, category 4
Block used: SB063/E-STOP
INFORMATION
• The E-STOP in this example is operated to category 4.

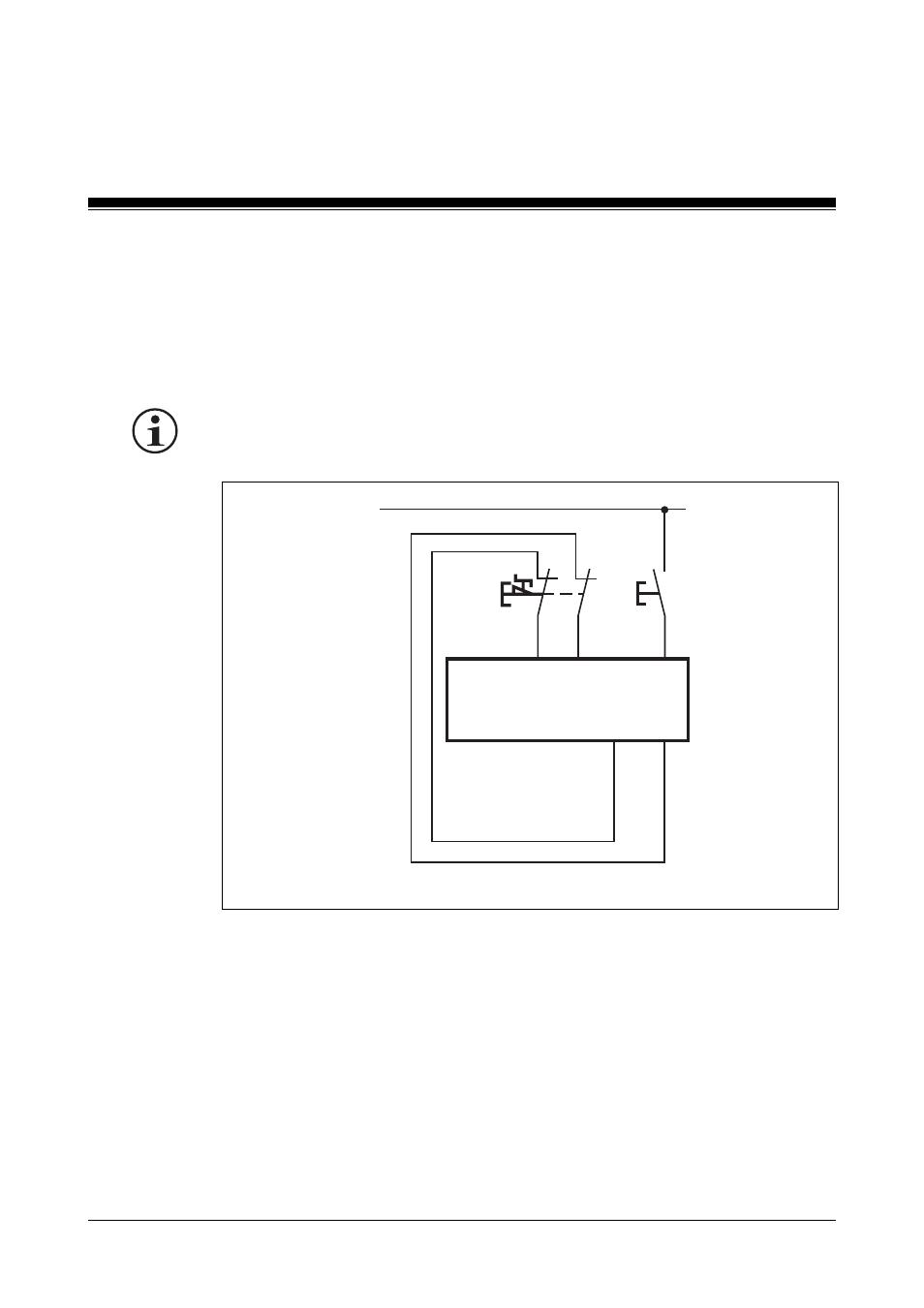

Fig. 8-7: Wiring diagram
24 V
E40.01
PSS
pulsed outputs
E-STOP 1
T0
T1
E40.02 E40.07
RSET
