6-5
6.2 Terminal configuration
6 Wiring
Screw terminals:
PSSu BP 1/12S
PSSu BP 1/12S-T
Cage clamp terminals:
PSSu BP 1/12C
PSSu BP 1/12C-T
Without C-rail:
11: Output Tx+ (send data)
21: Input Rx+ (receive data)
12-22: GND
(12-22-15-25 linked within the base
module)
13-23: Cable shield
(13-23-16-26 linked within the base
module)
14: Output Tx- (send data)
24: Input Rx- (receive data)
15-25: GND
(12-22-15-25 linked within the base
module)
16-26: Cable shield
(13-23-16-26 linked within the base
module)
Screw terminals:
PSSu BP-C 1/12S
PSSu BP-C 1/12S-T
Cage clamp terminals:
PSSu BP-C 1/12C
PSSu BP-C 1/12C-T
With C-rail:
11: Output Tx+ (send data)
21: Input Rx+ (receive data)
12-22: GND
(12-22 linked within the base module)
13-23: C-rail supply,
shield connection
(13-23 linked within the base module)
14: Output Tx- (send data)
24: Input Rx- (receive data)
15-25: GND
(12-22-15-25 linked within the base
module)
16-26: C-rail supply,
cable shield
(13-23-16-26 linked within the base
module)

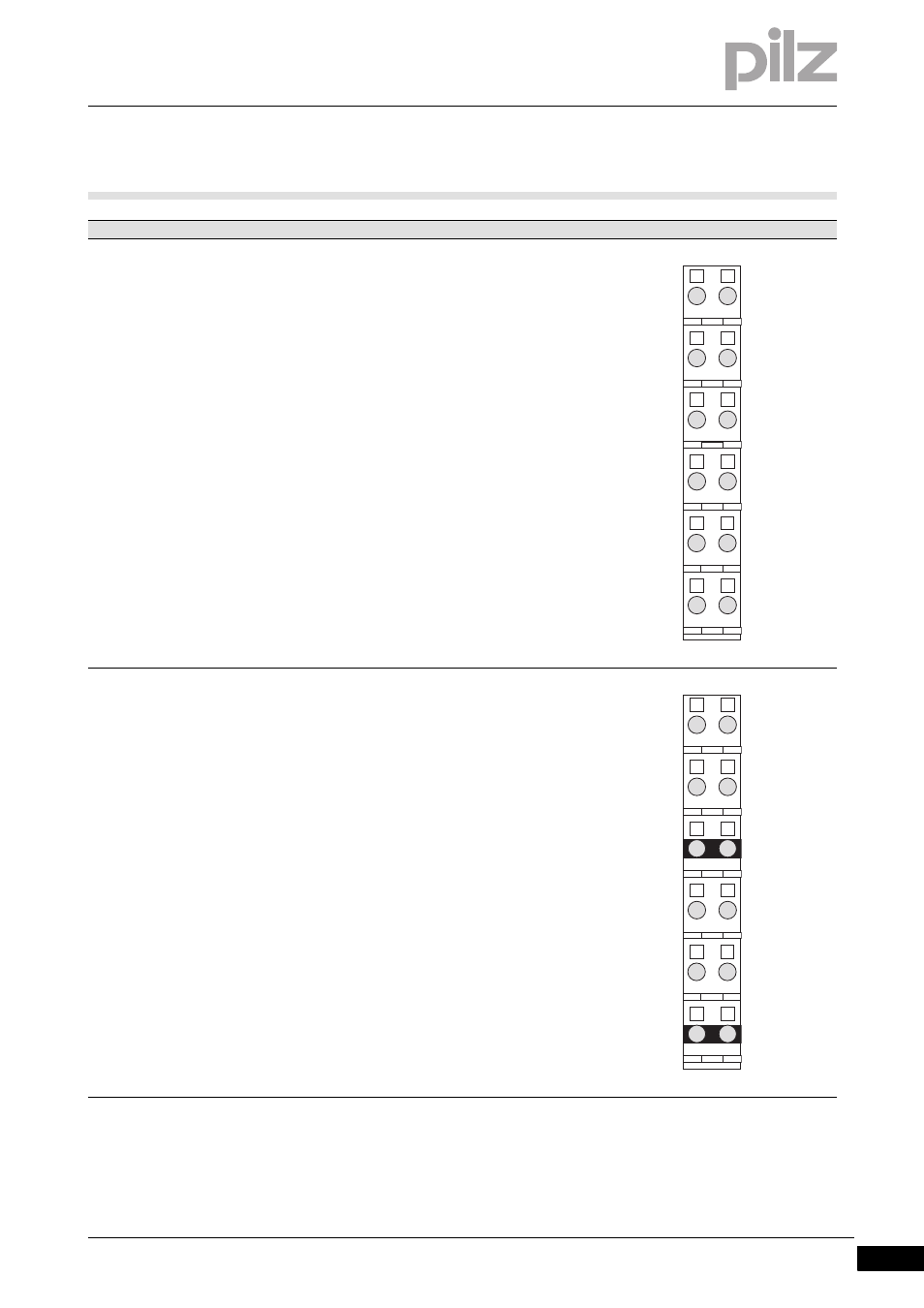

Base module Terminal configuration
21 11
22 12
23 13
24 14
26 16
25 15
21 11
22 12
23 13
24 14
26 16
25 15
