6.2 Terminal configuration
6 Wiring
Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: [email protected]
6-4

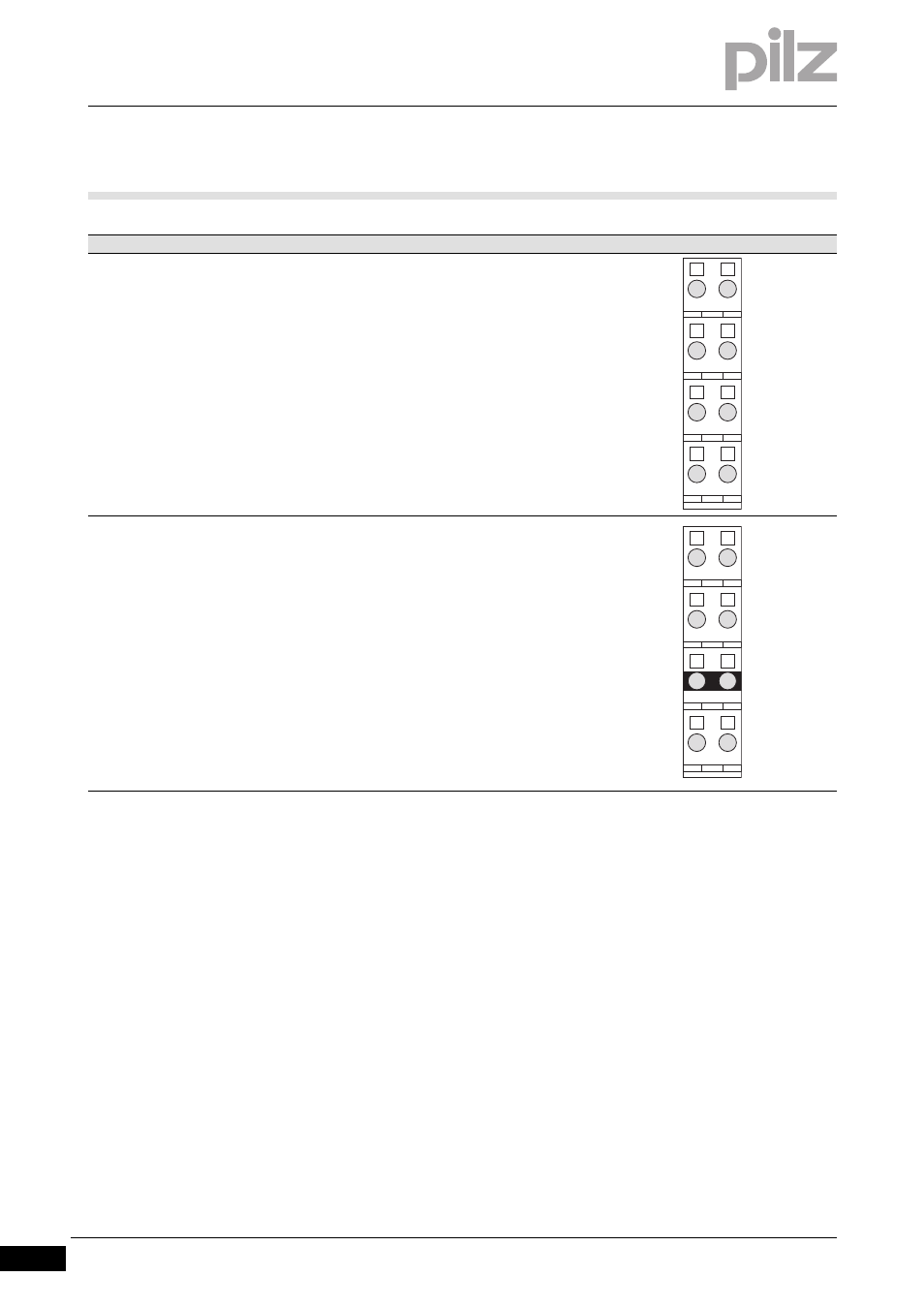

6.2 Terminal configuration 6200 Terminal configuration 6- ][Klemmenbelegung RS485 Ser
Base module Terminal configuration
Screw terminals:
PSSu BP 1/8S
PSSu BP 1/8S-T
Cage clamp terminals:
PSSu BP 1/8C
PSSu BP 1/8C-T
Without C-rail:
11: Output Tx+ (send data)
21: Input Rx+ (receive data)
12-22: GND
(12-22 linked within the base module)
13-23: Shield connection
(13-23 linked within the base module)
14: Output Tx- (send data)
24: Input Rx- (receive data)
Screw terminals:
PSSu BP-C 1/8S
PSSu BP-C 1/8S-T
Cage clamp terminals:
PSSu BP-C 1/8C
PSSu BP-C 1/8C-T
With C-rail:
11: Output Tx+ (send data)
21: Input Rx+ (receive data)
12-22: GND
(12-22 linked within the base module)
13-23: C-rail supply,
shield connection
(13-23 linked within the base module)
14: Output Tx- (send data)
24: Input Rx- (receive data)
21 11
22 12
23 13
24 14
21 11
22 12
23 13
24 14
