5-5
5.3 Inserting and removing an electronic module
5 Installation
5.3.2 Removing an electronic module
Removing an electronic module 5- ][Elektronikmodul ziehen
Procedure:
 Press the locking mechanisms [1] together simultaneously.
 Pull out the electronic module [2].

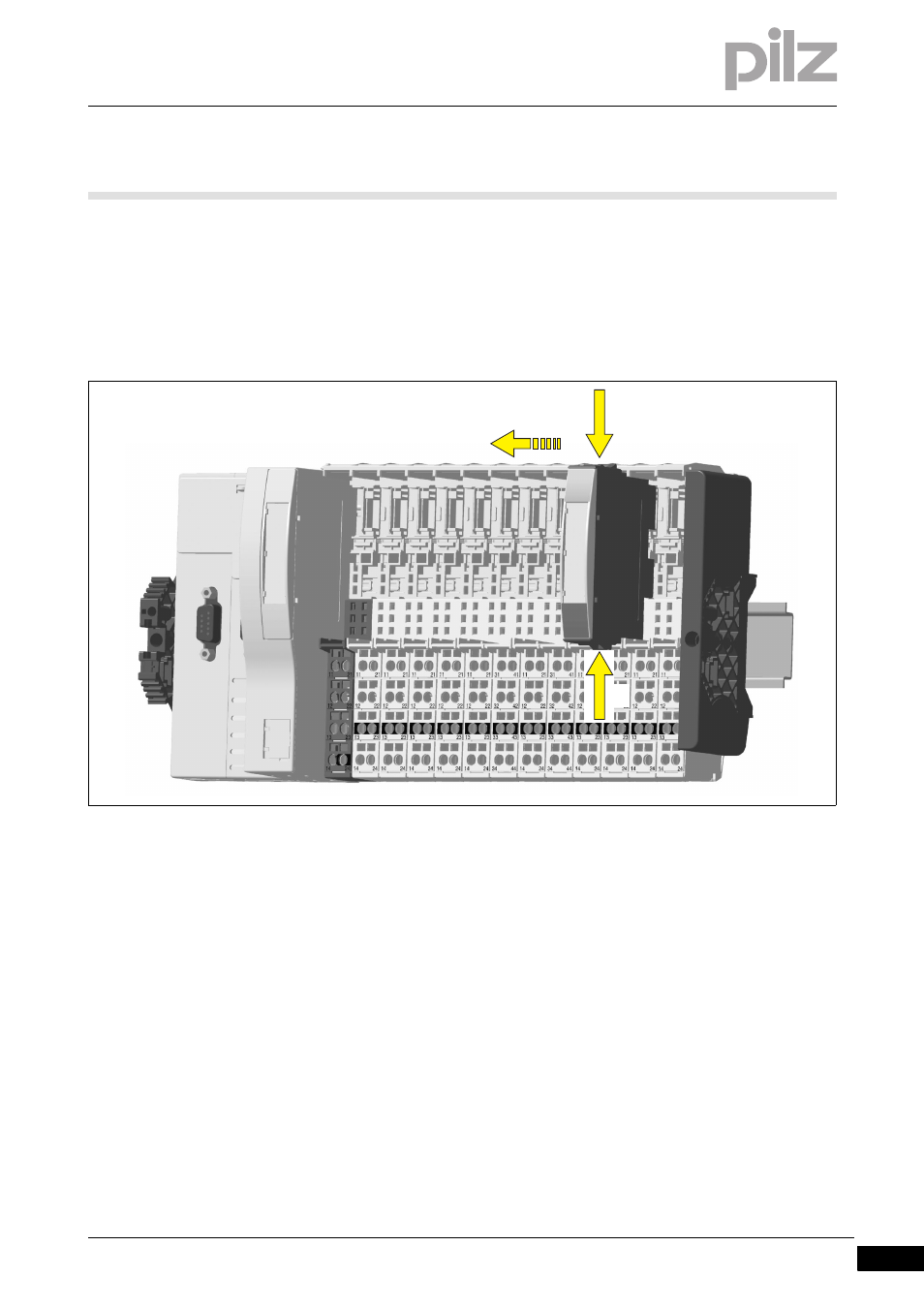

Schematic representation:
5.3.3 Changing an electronic module during operation
Changing an electronic module during operation 5- ][Montage BA Hot Swapping ST
It is possible to change an electronic module during operation. However,
changing an electronic module during operation may cause an ST com-
munication error. The configuration data is retained when a module is
changed.
[1]
[2]
[1]
