6.3 Connecting the module
6 Wiring

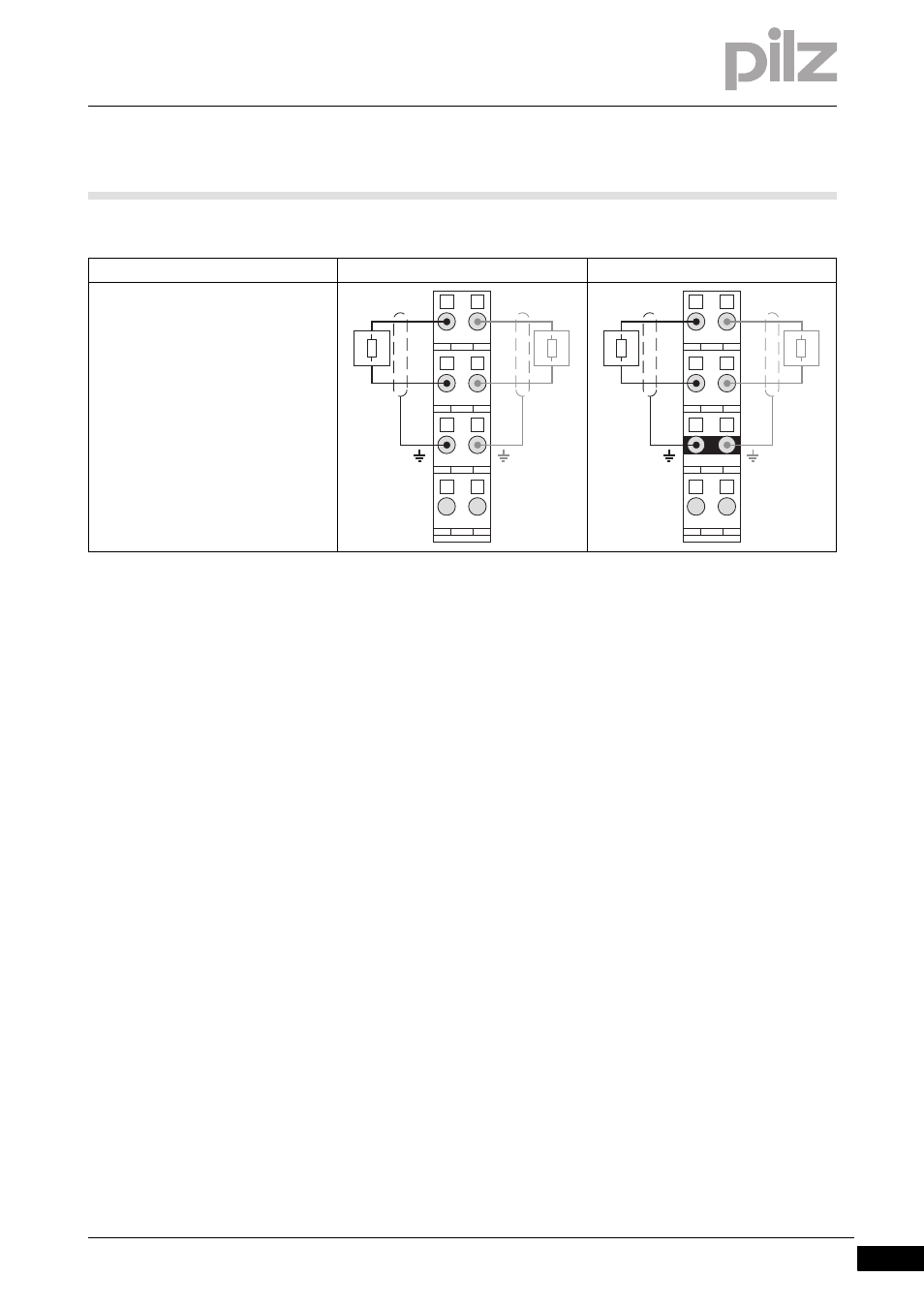

6.3 Connecting the module 6300 Connecting the module 6- ][Anschluss ST-AO 2xI
Output circuit Without C-rail With C-rail
Current range 0 ... 20 mA
Current range 4 ... 20 mA
single-pole, referenced to earth
21 11
22 12
23 13
24 14
0 V
O0 O1
0 V
21 11
22 12
23 13
24 14
0 V
O0 O1
0 V
