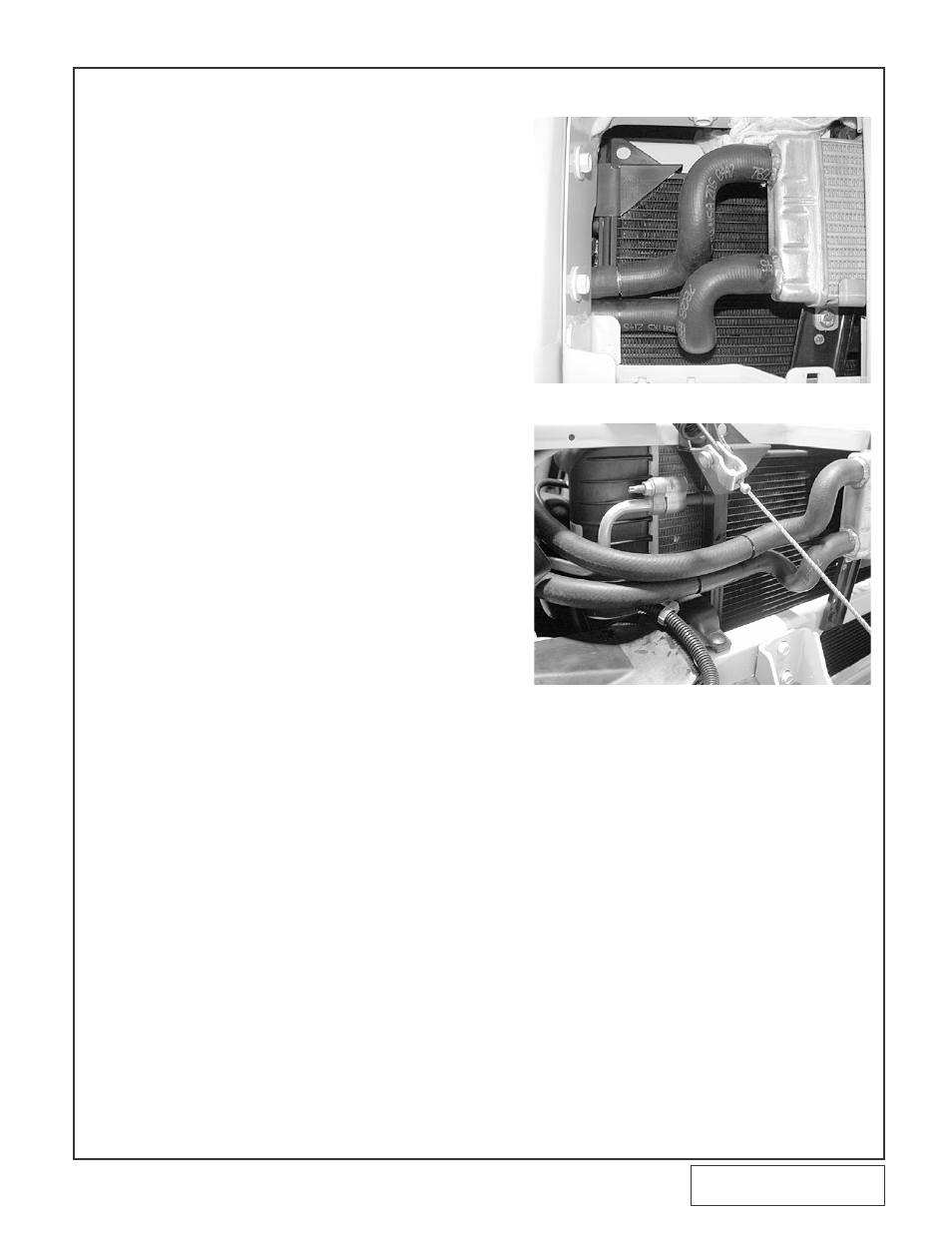

Fig. 18-d
Fig. 18-e
H. Cut a 40" piece of Ø3/4" hose. Connect it to
the formed hose attached to the top fitting of
the front heat exchanger and run it by the
passenger’s side of the radiator and through
the plastic shrouding into the engine compart-
ment. Connect the Ø3/4" hose to the long end
of the 90° molded elbow with the supplied
3/4" hose mender.
I. Secure all hose ends with the supplied nylon
clamps.
18.B H2 HUMMER CHARGE COOLER HOSE ROUTING, cont’d
