13. RADIATOR TUBE INSTALLATION (Denali/Escalade/SS Only)
A. Cut the supplied hose as shown in
Fig. 13-a.
B. Using the two original clamps and the two
supplied #24 hose clamps, attach the previ-
ously trimmed hose pieces to each end of the
supplied radiator tube, radiator and water
pump. (See Figs. 13-a, 13-b.)
C. Orient the radiator tube and hoses for best fit
and tighten all clamps.
D. Use the supplied adel clamp and 1/4-20 x
1/2" screw and washer to secure the radiator
tube to the insert on the large plastic inlet
duct. (See Fig. 13-b.)
E. Refill the coolant reservoir.

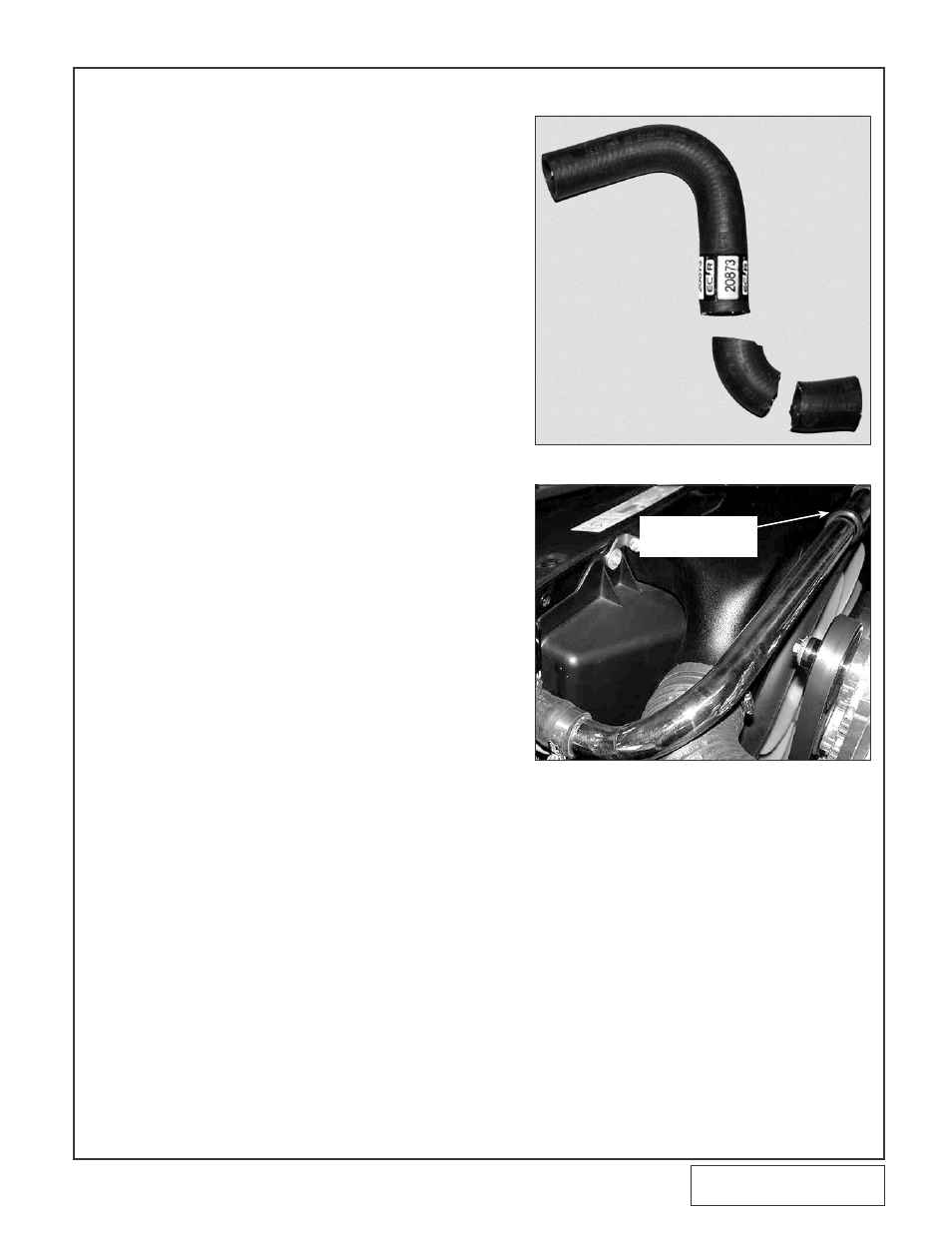

Fig. 13-a
Fig. 13-b
ADEL CLAMP
SECURING RADIATOR
CROSS-OVER TUBE
