*A. Remove the Vortech installed drain fitting
cap and attach the supplied 1/2" oil drain
hose to the supercharger and tighten the
clamp.
B. Loosely install the supercharger onto the
Vortech bracket. Start all five 3/8-16 x
2-1/4" supercharger mounting screws with
washers.
C. Tighten the supercharger mounting
screws in a rotating pattern to 18 ft-lbs
(25 N-m).

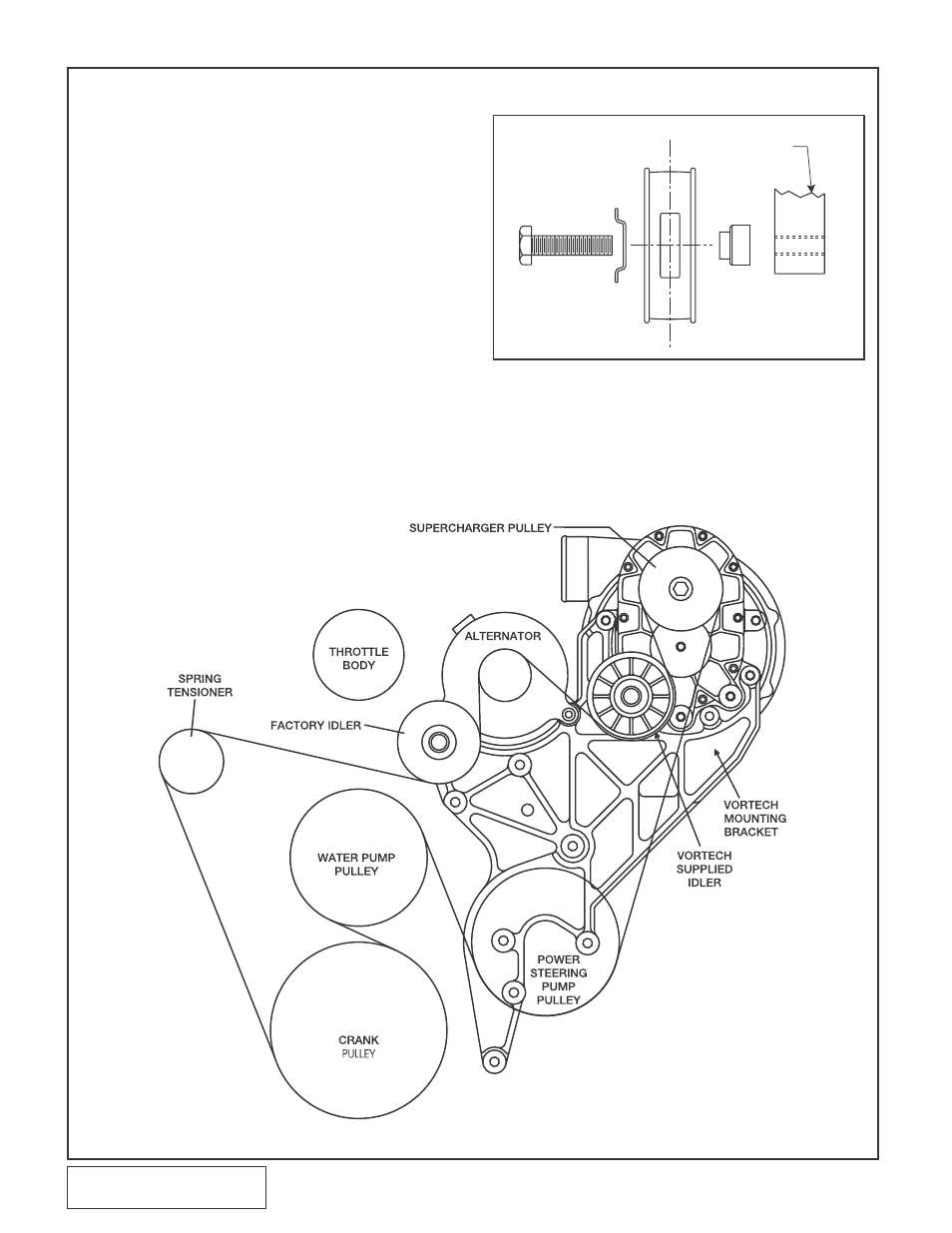

D. Install the Vortech supplied M12 x 50mm
bolt, dust cover, idler pulley and spacer
onto the supercharger cover as shown in
Figs. 5-a, 5-b.
E. Install the supplied supercharger/acces-
sory drive belt per Fig. 5-b.
5.
SUPERCHARGER INSTALLATION
Fig. 5-a
Fig. 5-b
SUPERCHARGER
COVER
* Applies to "engine oil-fed" units only.
V-3 applications skip this step
