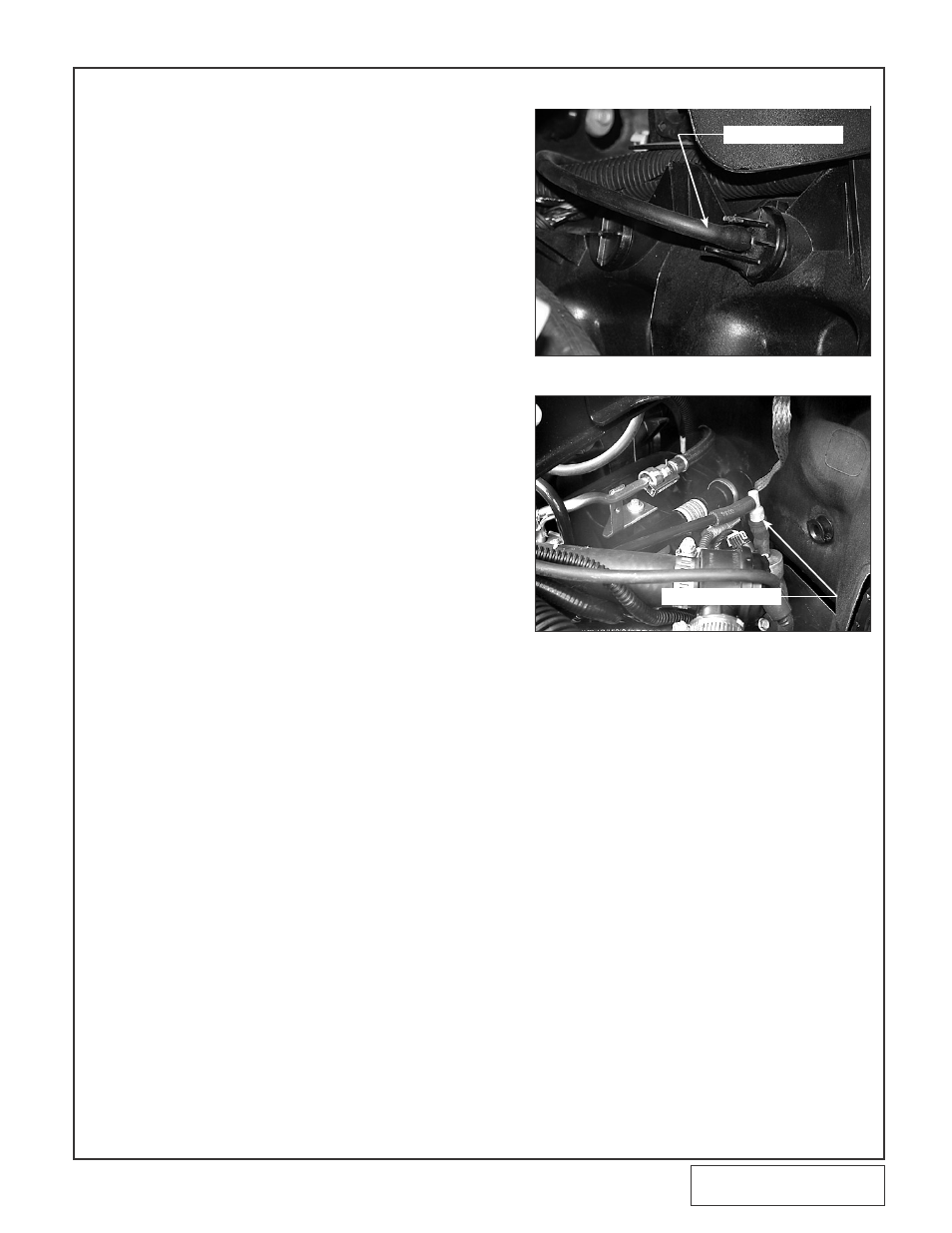

Fig. 15-d / ('04-'06 Models Only)
Fig. 15-e ('04-'06 Models Only)
E.2 '04-'06 Models: Locate the capped-off mani-
fold vacuum port on the passenger’s side of
the intake manifold. Using a file or hacksaw,
remove the tip of the capped-off section.
Using the supplied 5/32" vacuum line, con-
nect the bypass valve pressure port to the
modified pressure port. (See Fig. 15-d.)
F. '04-'06 Models: Locate the hard plastic line
running to the drivers side rear of the engine.
Remove the hard line from the rubber hose.
G. '04-'06 Models: Install the supplied 90° PCV
valve into the rubber hose on the engine.
H. '04-'06 Models: Cut the hard plastic line to
reach the PCV valve and connect them with
the supplied length of 3/8" hose. (See Fig.
15-e.)
15. SUPERCHARGER BYPASS INSTALLATION, cont’d.
SUPPLIED 5/32" HOSE
SUPPLIED PCV VALVE
