26

P/N: 4GL020-015

©2008 Vortech Engineering, LLC

All Rights Reserved, Intl. Copr. Secured

08OCT08 GM Trk/H2(4GL..015v5.0)

16.A ESCALADE/DENALI/SS SURGE AND RESERVOIR TANK INSTALLATION

A. Screw two 3/4" straight brass fitting into the

plastic surge tank. (See Fig. 16.A-a.)

B. Using the supplied 1/4-20 x .50 hardware and

washers attach the surge tank mounting

bracket to the surge tank.

C. Unbolt the two bolts holding the passenger’s

side hood hinge brace at the base of the

windshield. Install the surge tank and bracket

assembly using the stock hardware. (See Fig.

16.A-a.)

D. Remove the two screws holding the front

bumper brace in the passenger’s side fender

well. (See Fig. 16.A-b.)

E. Install the reservoir bracket as shown using

the two factory screws. (See Fig. 16.A-b.)

F. Screw the 3/4" 90° brass fittings into the top

and bottom of the water reservoir.

G. Install the water pump on the reservoir using

the supplied adel clamp, 1/4-20 x .50 screws

and 1/4" washers. Take the short 90° molded

elbow and connect the inlet of the water

pump to the bottom 90° brass fitting. (See

Fig. 16.A-c.)

H. Mount the water pump/reservoir assembly to

the previously installed bracket in the fender-

well using two 1/4-20 x .50" cap screws and

washers. (See Fig. 16.A-d.)

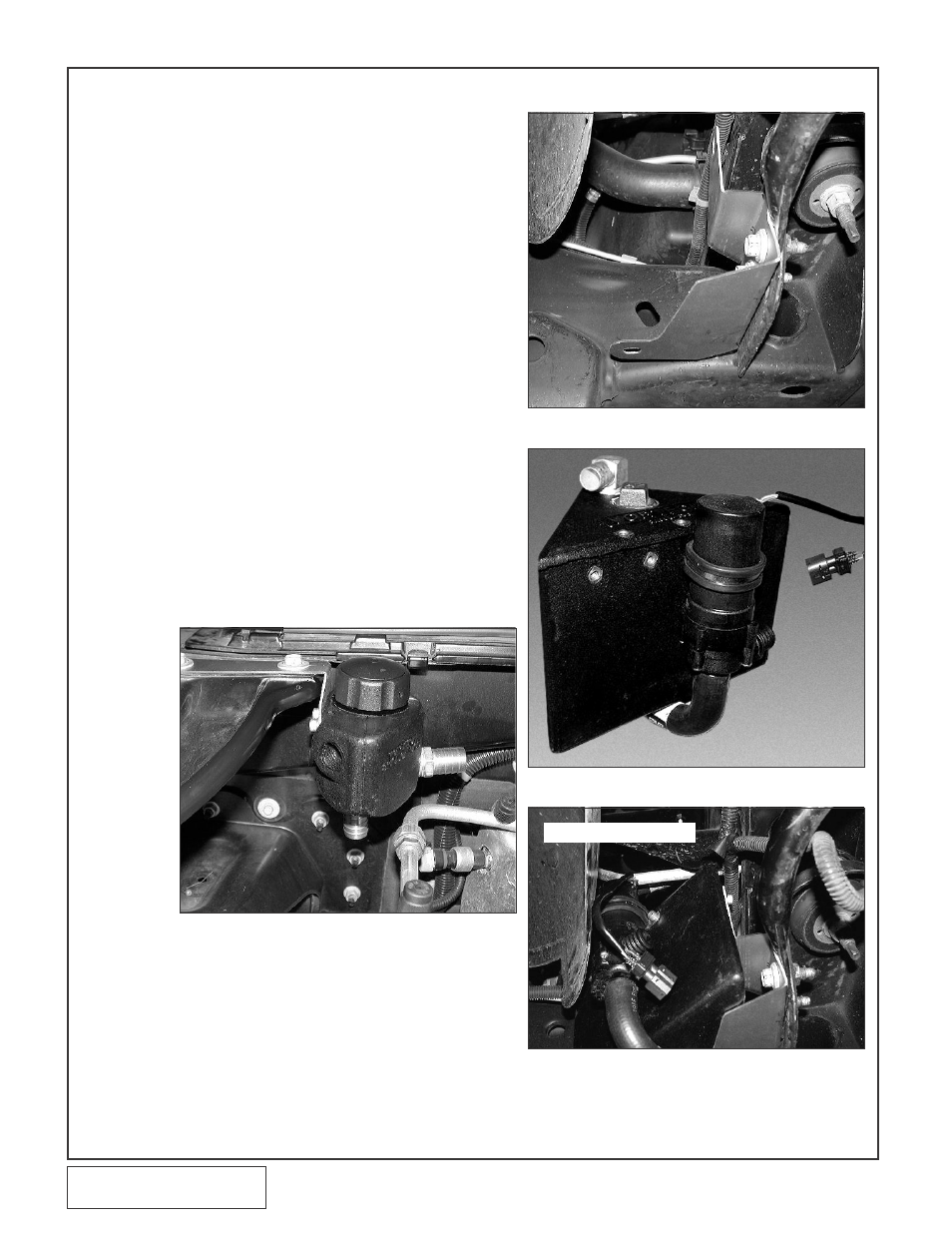

Fig. 16.A-a

Fig. 16.A-b

Fig. 16.A-c

Fig. 16.A-d

ESCALADE/DENALI
