Charge cooler installation, cont’d, View from rear of cooler – Vortech 2003-2004 Chevrolet SS User Manual

Page 41

P/N: 4GL020-015

08OCT08 GM Trk/H2(4GL..015v5.0)

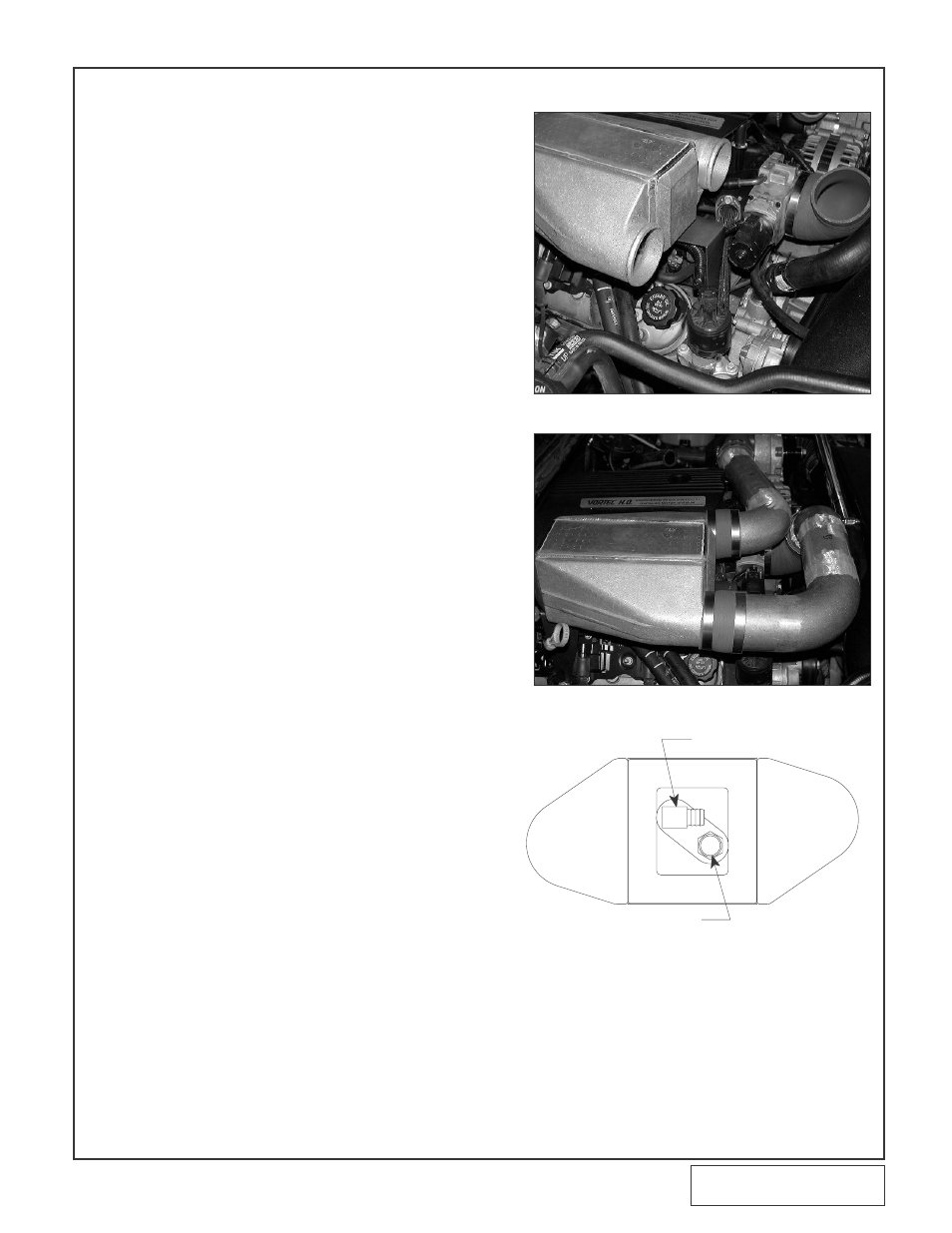

14. CHARGE COOLER INSTALLATION, cont’d.

Fig. 14-c

Fig. 14-d

Fig. 14-e

cooler.

H. Slide the 90° silicone elbow sleeve onto the

throttle body. Slide the 2-3/4" end of the

reducer sleeve onto the outlet side of the

cooler. Using the #48 hose clamps install dis-

charge tube “B” from the 3" end of the 90°

sleeve to the 3" end of the reducer sleeve on

the cooler. Use the #64 hose clamp to secure

the 90° sleeve to the throttle body. Tighten all

clamps. (See Figs. 14-c, 14-d.)

90 BRASS FITTING POINTING

TOWARD SURGE TANK

VIEW FROM REAR OF COOLER

STRAIGHT BRASS FITTING
