12.D 2008 H2 HUMMER INLET DUCT INSTALLATION

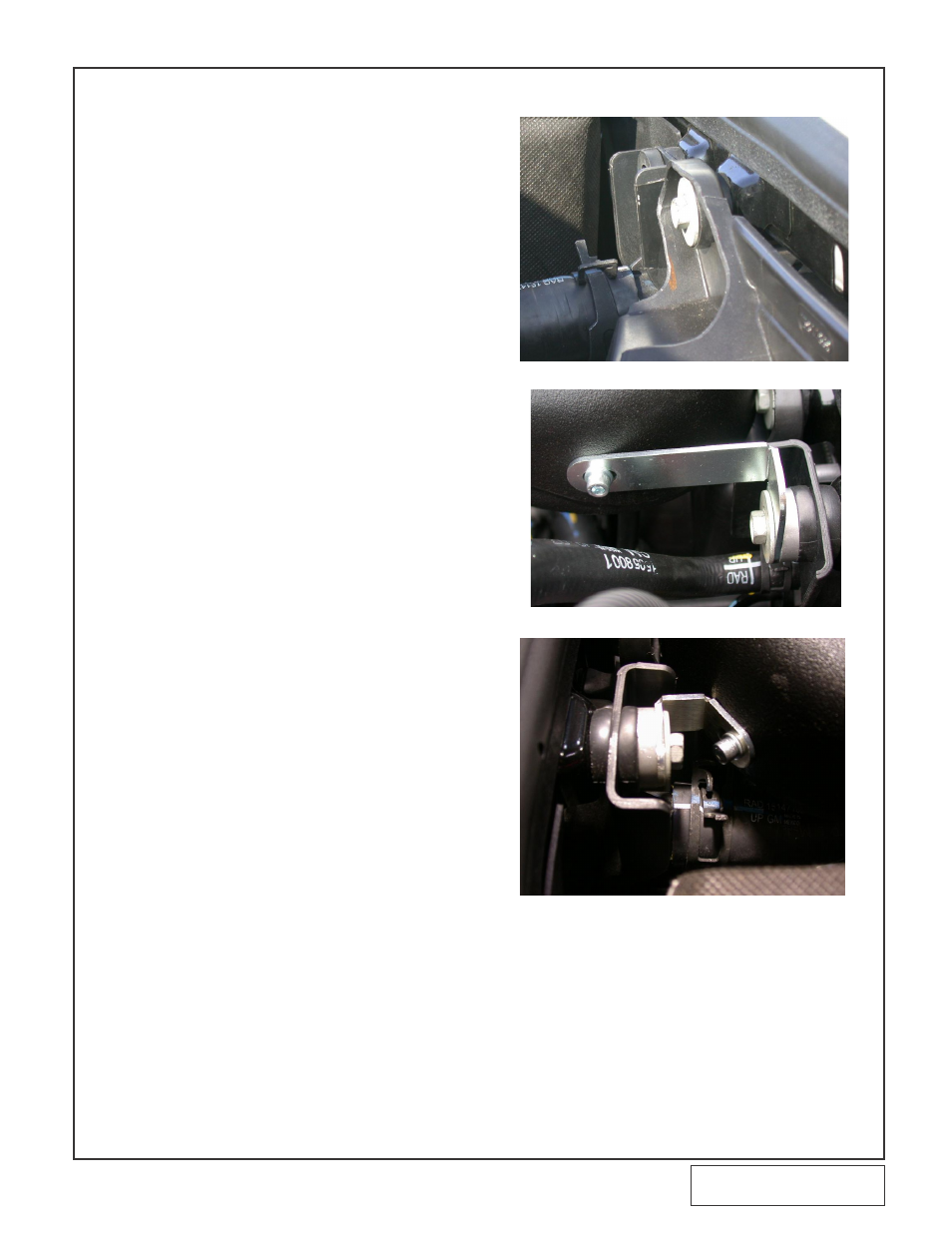

A. Trim fan shroud supports as seen if photos,
to clear molded inlet duct (See Fig 12.D-a).
B. Install inlet duct using factory hardware,
supplied brackets and Ø1.25” x .280” long
spacers. The spacers should be positioned
between the Factory rubber grommets and
the supplied duct mounting brackets (See
Fig 12.D-b Driver side) and Fig 12.D-c pas-
senger side).
Fig. 12.D-a
Fig. 12.D-b
Fig. 12.D-c
