Vortech 2003-2004 Chevrolet SS User Manual

Page 28

P/N: 4GL020-015

08OCT08 GM Trk/H2(4GL..015v5.0)

BRAKE BOOSTER LINE MODIFICATION (2002 Escalade Only)

A. Locate the brake booster hard line running

from the master cylinder down to the lower

left corner of the power steering pump.

Disconnect the line at the master cylinder.

B. With a 3/8" tubing bender, put a 30° bend in

the hard line. (See Fig. 9-a.)

C. Reconnect the line back to the master cylin-

der with its new bend. (See Fig. 9-b.)

D. Bleed the system as follows (The engine

should be off):

1. Raise the front wheels off the ground.

2. Turn the steering wheel full left.

3. Fill the reservoir to the “FULL COLD”

level. Maintain this level thoughout the

procedure.

4. Turn the steering wheel lock to lock at

least 20 times or until the bubbles stop.

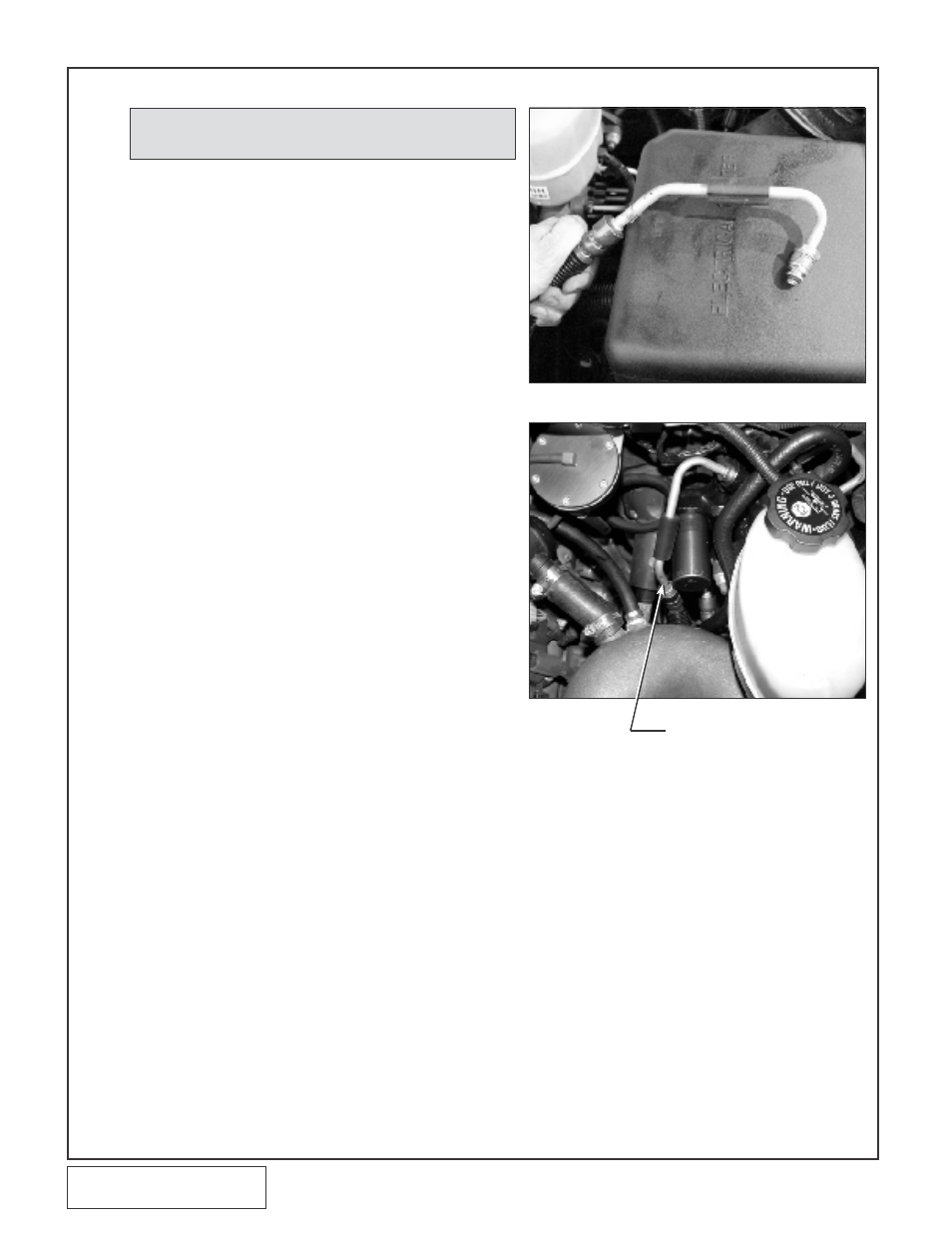

Fig. 9-a

Fig. 9-b

MODIFIED BRAKE BOOSTER HARD
LINE MUST CLEAR INLET DUCT

NOTE: The purpose of Section 9 is to bend the brake booster line

and give it clearance from the supplied inlet duct.
