17.C 2008 H2 HUMMER GRILL INSERT REMOVAL
A. Remove the grill from the vehicle
using a flat bladed screw driver
depress the clips retaining the grill to
the vehicle (see Fig 17.B-i).
B. With the grill on a flat surface depress
the clips retaining the grill opening
extensions and remove the grill
extensions (Note: this will not be
reused). See Fig 17.B-j
C. Reinstall the grill to the vehicle in the
reverse order of removal.

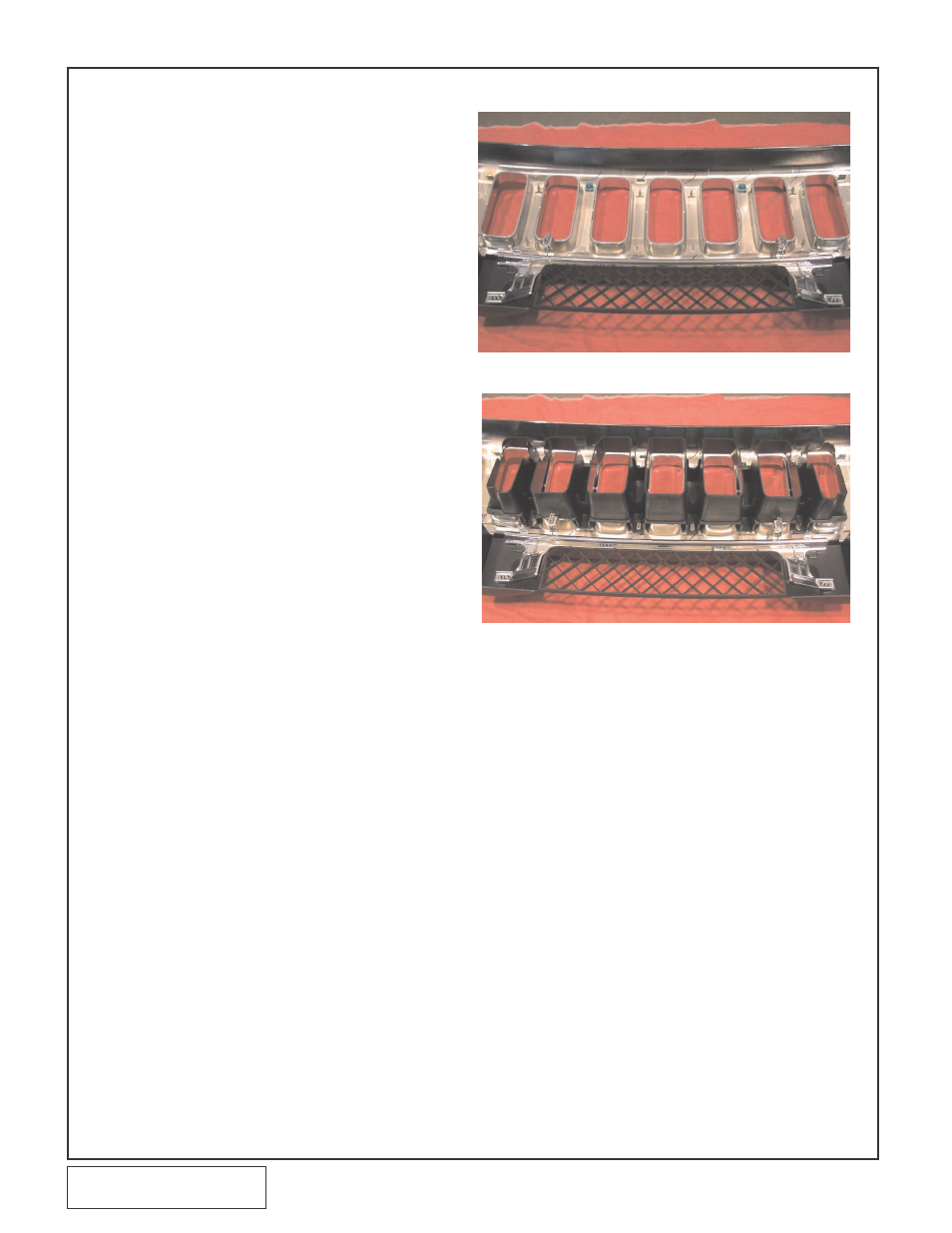

Fig. 17.B-i
Fig. 17.B-j
