DS560/DS570 User's Guide - Rev. A04 StorCase Technology, Inc.
Appendix A - Specifications/Dimensions 47

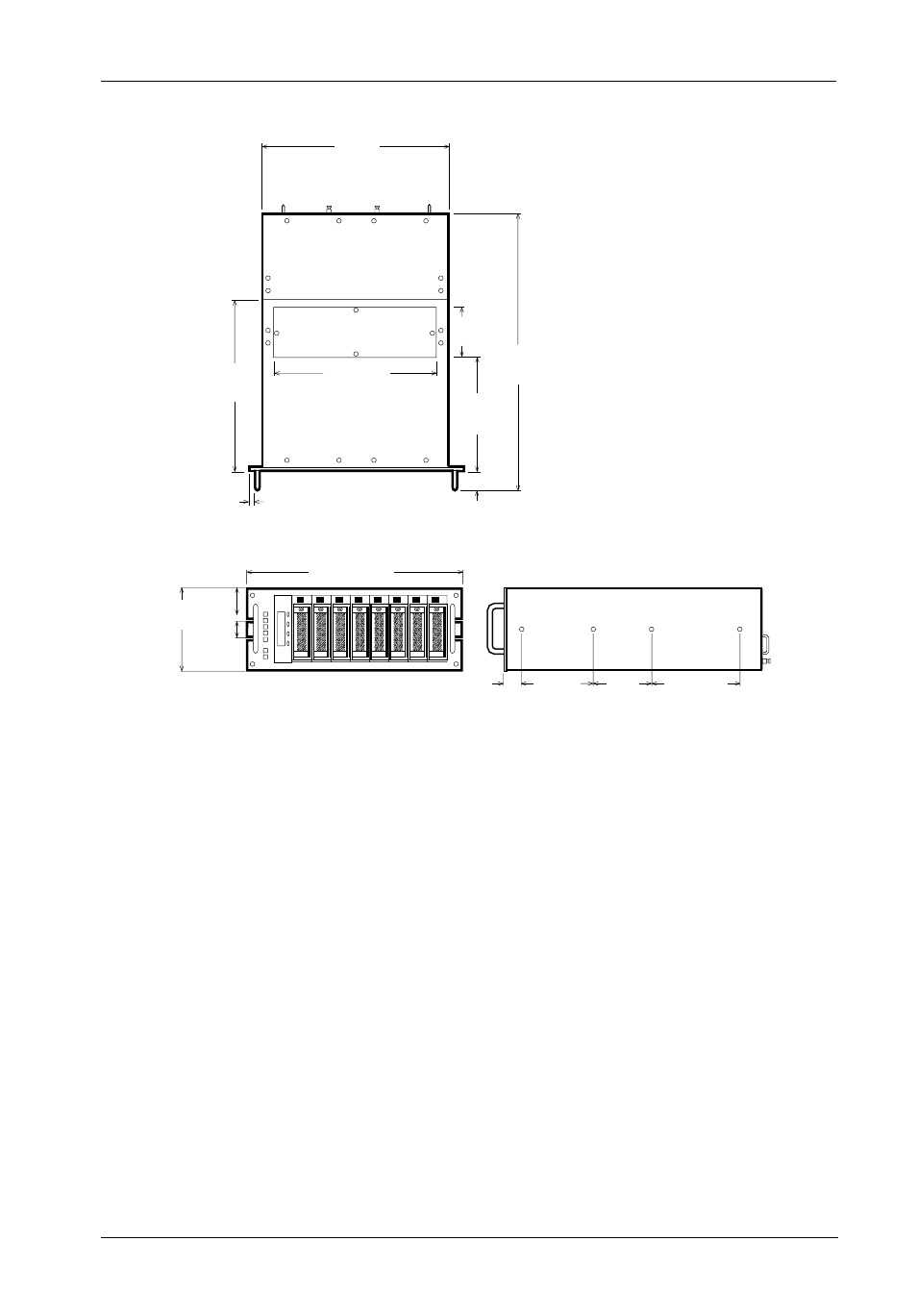

Figure A-1: Physical Dimensions - DS570 Shown
(Dimensions are for reference only)
1.75
(44.5mm)
Top View
Front View
Right Side View
(Mounting Holes for Optional Slide Rail Kit)
6.98
(177.3mm)
6.00
(152.4mm)
4.25
(108.0mm)
7.75
(196.9mm)
0.20
(5.1mm)
1.17
(29.7mm)
8.06
(204.7mm)
23.87
(606.3mm)
4.58
(116.3mm)
15.36
(390.1mm)
13.04
(331.2mm)
16.92
(429.8mm)
19.00
(482.6mm)
2.62
(66.5mm)
1.66
(42.2mm)
S_IDE07
NOTE: The DS560 and DS570 have same physical dimensional measurements.
