8 Introduction
StorCase Technology, Inc. DS560/DS570 User's Guide - Rev. A04

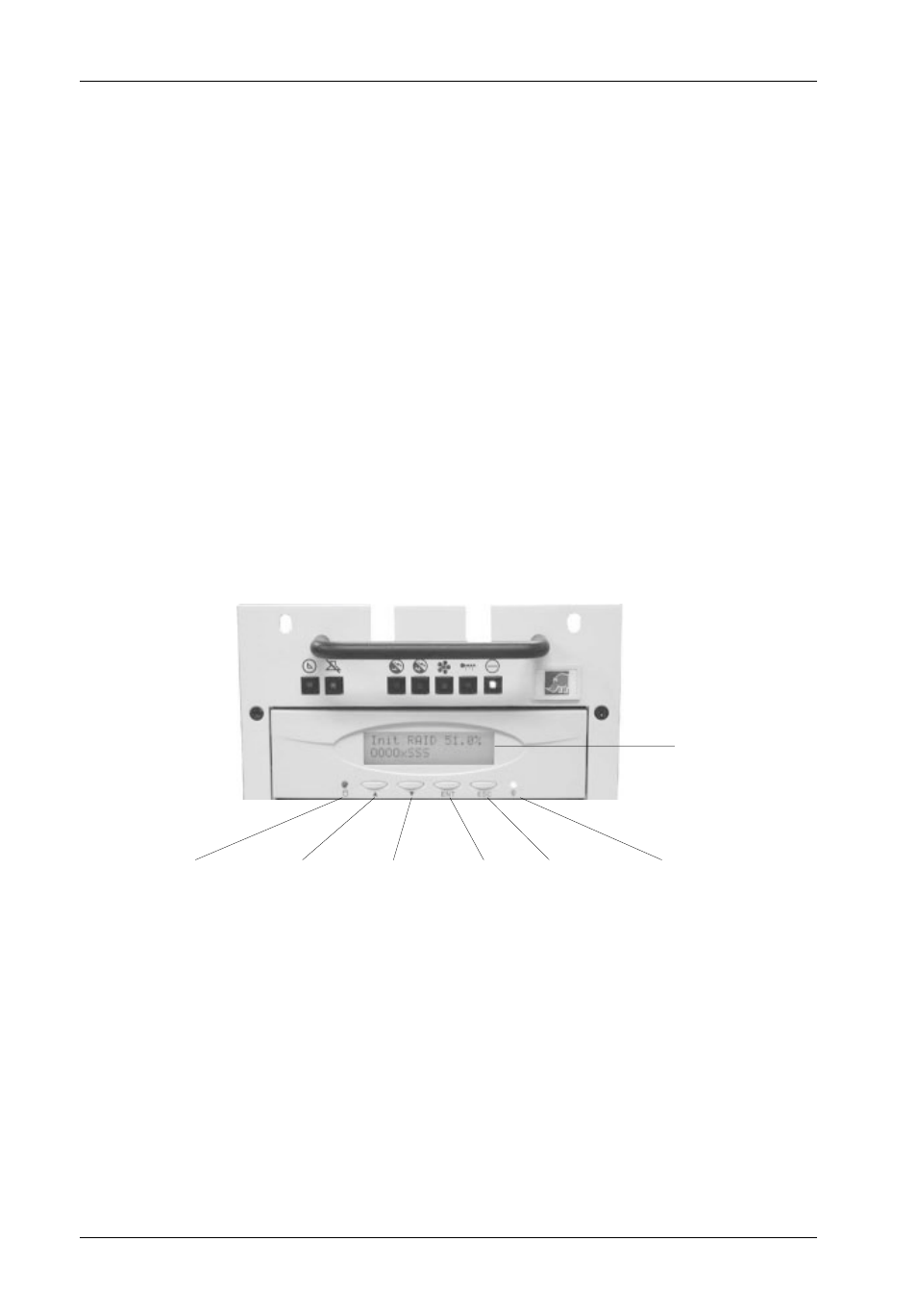

Figure 5: RAID Control Panel
Activity
LED
Scroll UP
Button
Scroll DOWN
Button
Enter
Button
Escape
Button
Power
LED
LCD
Display
S_IDE02
SCSI-to-IDE RAID Control Panel
(Figure 5)
• Activity LED - Indicates that data is being accessed.
• Scroll UP/DOWN Buttons - Used to navigate through the RAID Controller menu.
• Enter Button - Used to select a menu option, open a sub-menu, or select a value.
• Escape Button - Used to exit a sub-menu and return to the previous menu.
• Power LED - Steady glow indicates normal power operation. No glow indicates no
A/C power.
• LCD Display - Displays menu options and messages for configuration.
