Drive Installation (for DS560 model only)
1. Attach the I/O cable from the drive carrier circuit board of the DE90i-A100 to the
drive (Figure 8).
2. Attach the 4-pin DC power cable from the rear distribution board to the drive
(Figure 8). Carefully insert the drive into the drive carrier at an angle, cable-end
first. Make sure none of the cables are pinched. Lower the front of the drive
carefully into place. Fasten the drive into the carrier with the four (4) screws
provided as shown in Figure 8.
3. Install the cable cover (provided) by snapping into place.
Proceed to Step 4 oon page 15.

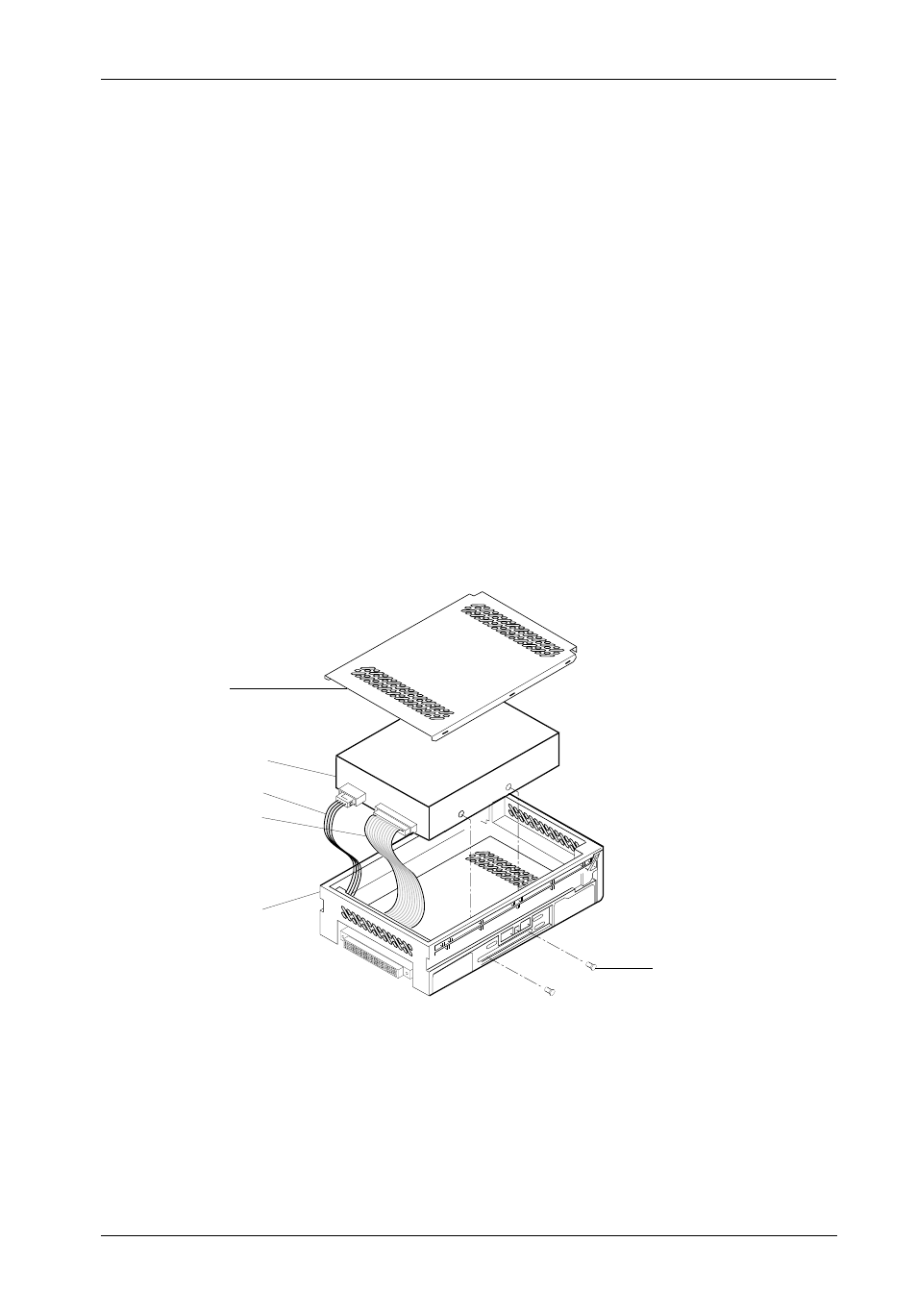

Figure 8: Drive Installation Assembly
(DS560 only)
Drive Carrier
Disk Drive
(Not Included)
Power Cable
I/O Cable
0413a
Drive
Cover
(Provided)
# 6-32 Phillips
F. H. Screw
(4 Total)
