WRVS4400N User Guide 87
Administration Tab
Setting Up and Configuring the Router

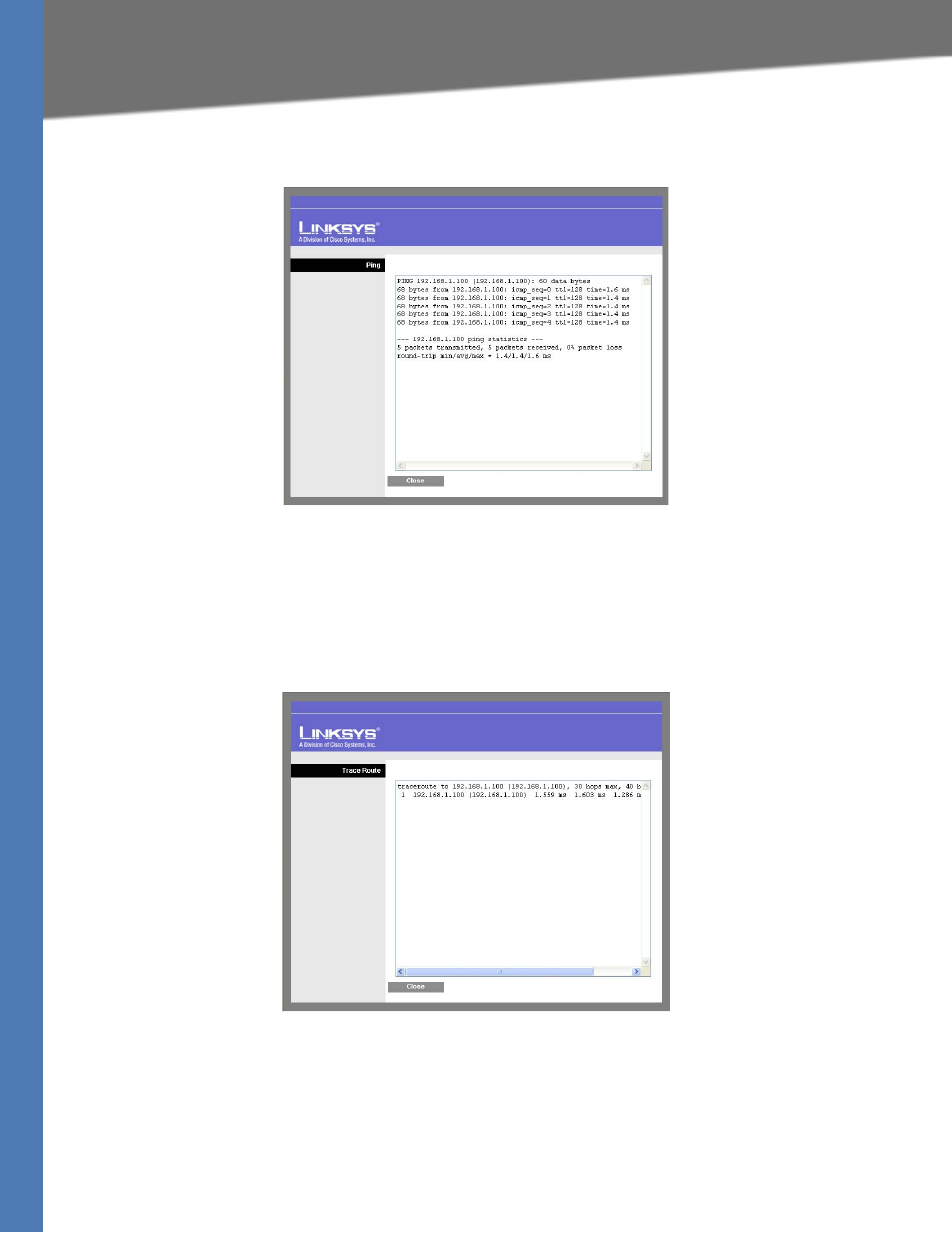

Start Test button—Click this button to begin the test. A new screen appears and display the
test results. A summary of the PING results will be shown on the bottom of this screen.
Ping Result. Displays the Ping status results.
Traceroute Test Parameters
TraceRoute Target—Enter the IP address or Host name to perform the traceroute testing.
Start Test button—Click this button to begin the test. A new screen appears and display the
test results.
Cable Diagnostics
Port—Select the port number from the drop-down menu.
Pair—Identifies a specific pair (A, B, C, or D) in the cable. Each cable consists of 8 pins (4 pairs).
Cable Length—Displays the length of the cable in meters.
