WRVS4400N User Guide 79
QoS Tab
Setting Up and Configuring the Router

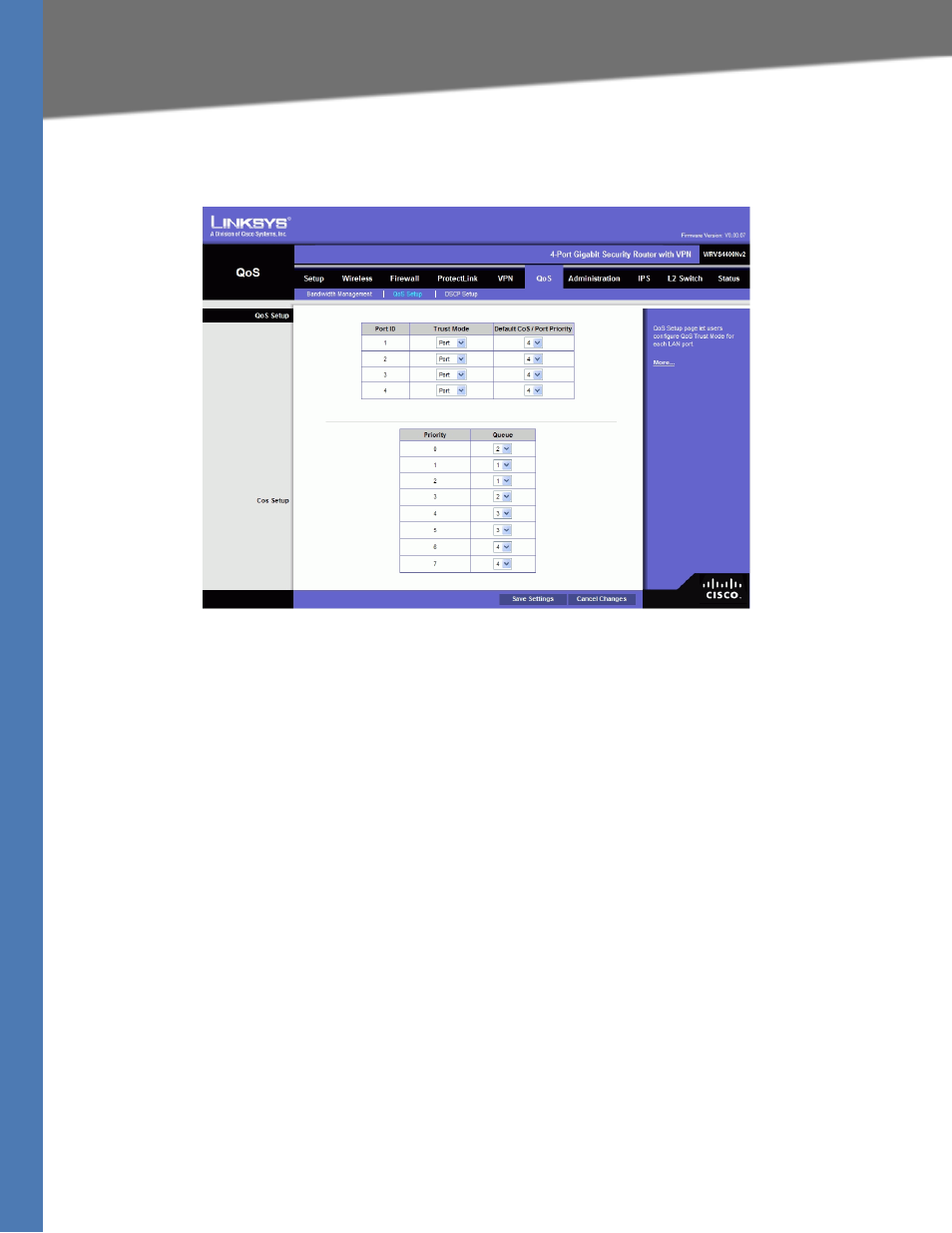

QoS Setup
The QoS Setup screen allows users to configure QoS Trust Mode for each LAN port.
Port ID—The number of the LAN port.
Trust Mode—Select either Port, CoS, or DSCP. The default is Port.
Default CoS/Port Priority—If Trust Mode is set to Port, select the port priority from 1 to 4 from
the drop-down menu. If Trust Mode is set to CoS, select the default CoS priority from 0 to 7 from
the drop-down menu.
CoS Setup
Priority—The CoS priority from 0 to 7.
Queue—Select the traffic forwarding queue, 1 to 4, to which the CoS priority is mapped.
Change these settings as described here and click Save Settings to apply your changes, or click
Cancel Changes to cancel your changes. Help information is displayed on the right-hand side
of the screen, and click More for additional details.
