WRVS4400N User Guide 77
QoS Tab
Setting Up and Configuring the Router

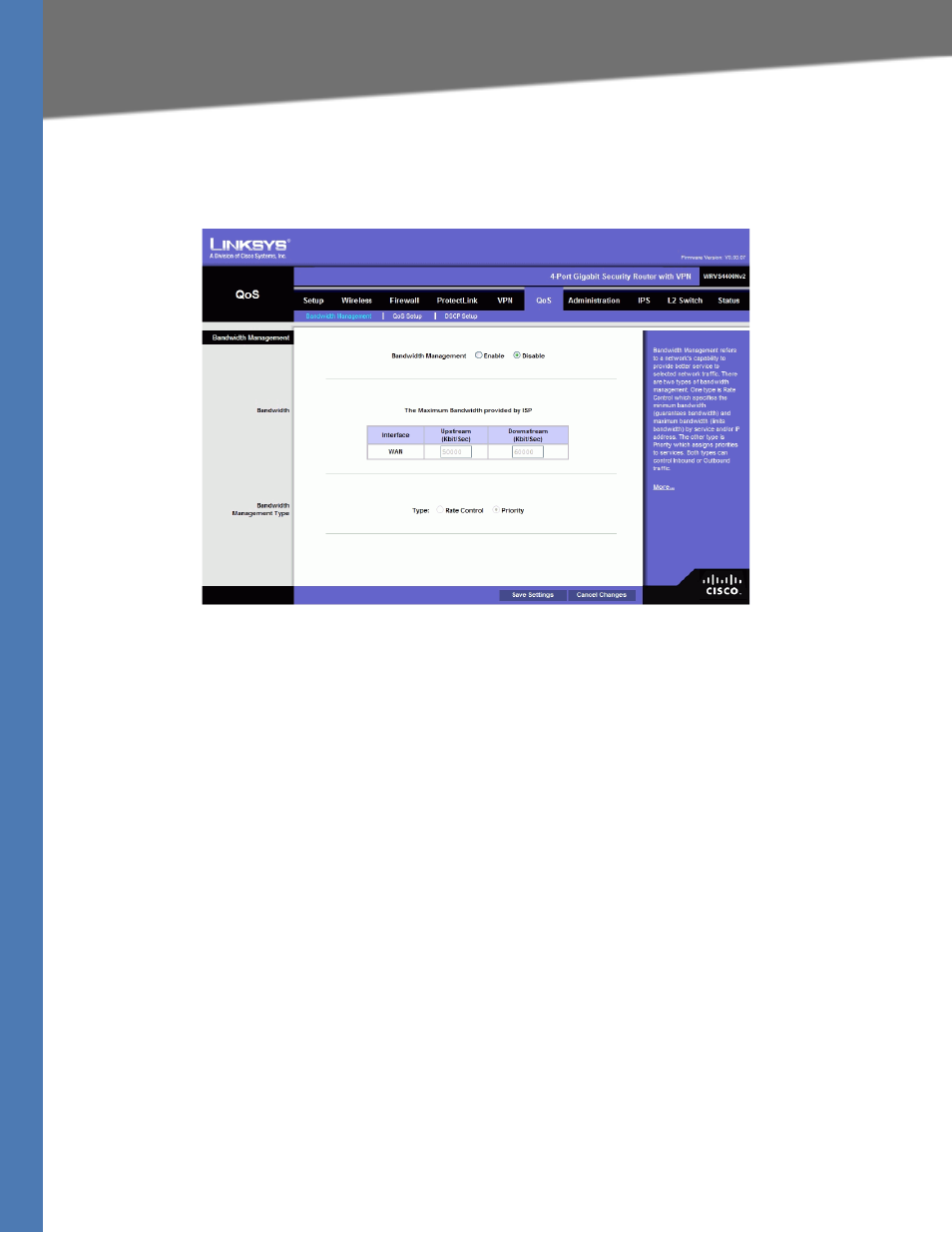

QoS Tab
QoS (Quality of Service) allows you to perform Bandwidth Management, by either Rate Control
or Priority. You can also configure QoS Trust Mode and the DSCP settings.
Bandwidth Management
Bandwidth
Specify the maximum bandwidth provided by the ISP on the WAN interface, for both the
upstream and downstream directions.
Bandwidth Management Type
Type—The desired type of bandwidth management, either Rate Control (default) or Priority.
Depending on your selection, the lower portion of the screen displays either the Rate Control
section or the Priority section.
Rate Control
Service—Select the service from the drop-down menu. If it does not contain the service you
need, click Service Management to add the service.
IP—Enter the IP address or IP range you need to control. The default is zero which includes all
internal IP addresses.
Direction—Select Upstream for outbound traffic or Downstream for inbound traffic.
Mini.Rate—Enter the minimum rate for the guaranteed bandwidth.
Max. Rate—Enter the maximum rate for the guaranteed bandwidth.
