WRVS4400N User Guide 96

L2 Switch Tab

Setting Up and Configuring the Router

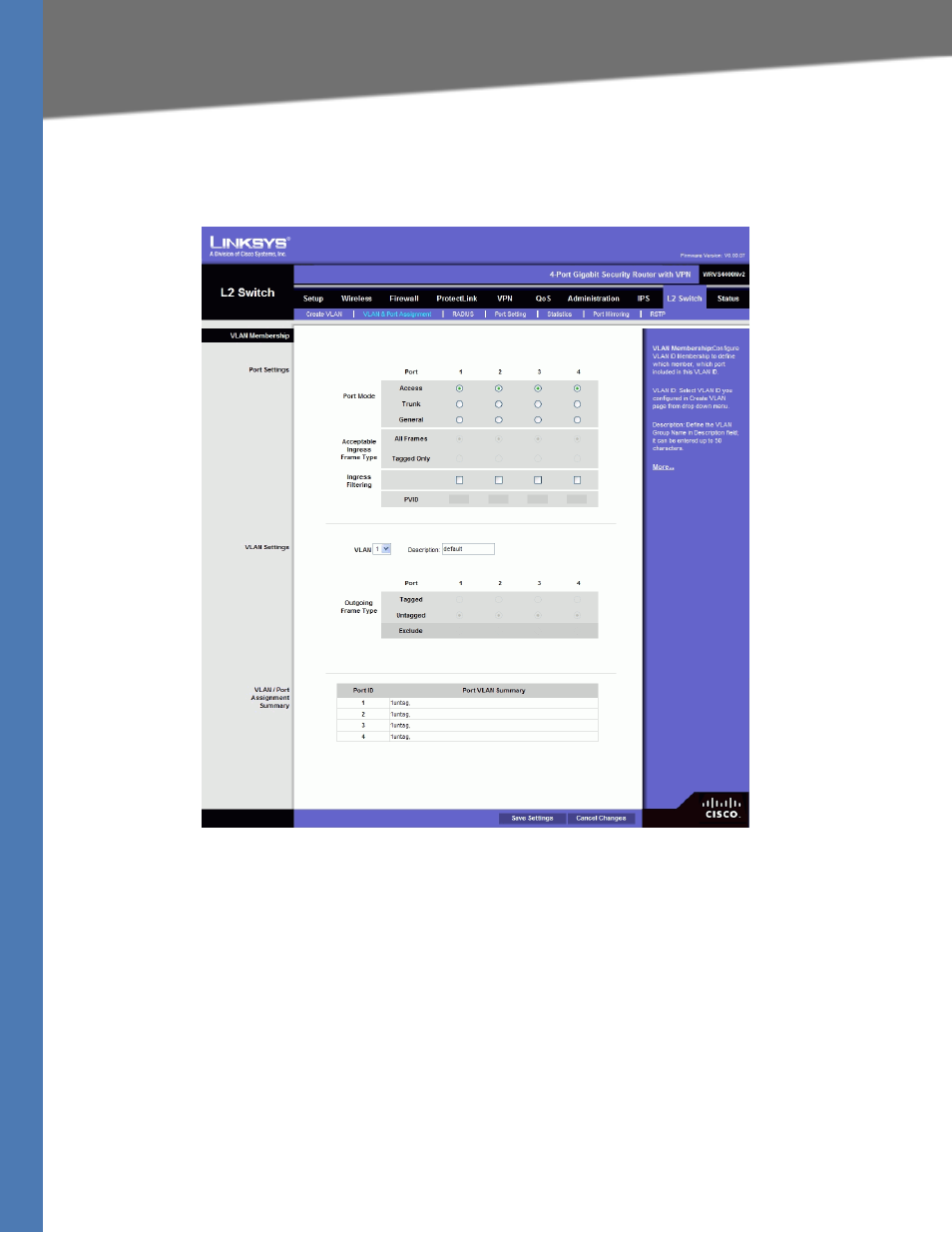

VLAN & Port Assignment

This Tab is a combination of Port settings and VLAN membership tabs in one on this device and
other routers.

The first section is port specific settings regarding the use of VLAN (nothing to do with
individual VLANs). It requires users to specify the port mode for each port. The "acceptable
frame type" and "PVID" options are for "General" port mode only

Port Mode—select one of the three modes:

•

Access—All frames are untagged coming in or going out of the switch port. Wireless
port can be set to this mode only.

•

Trunk—All frames are tagged coming in or going out of the switch except for VLAN ID 1
(called native VLAN or default VLAN in Cisco)
