WRVS4400N User Guide 100
L2 Switch Tab
Setting Up and Configuring the Router

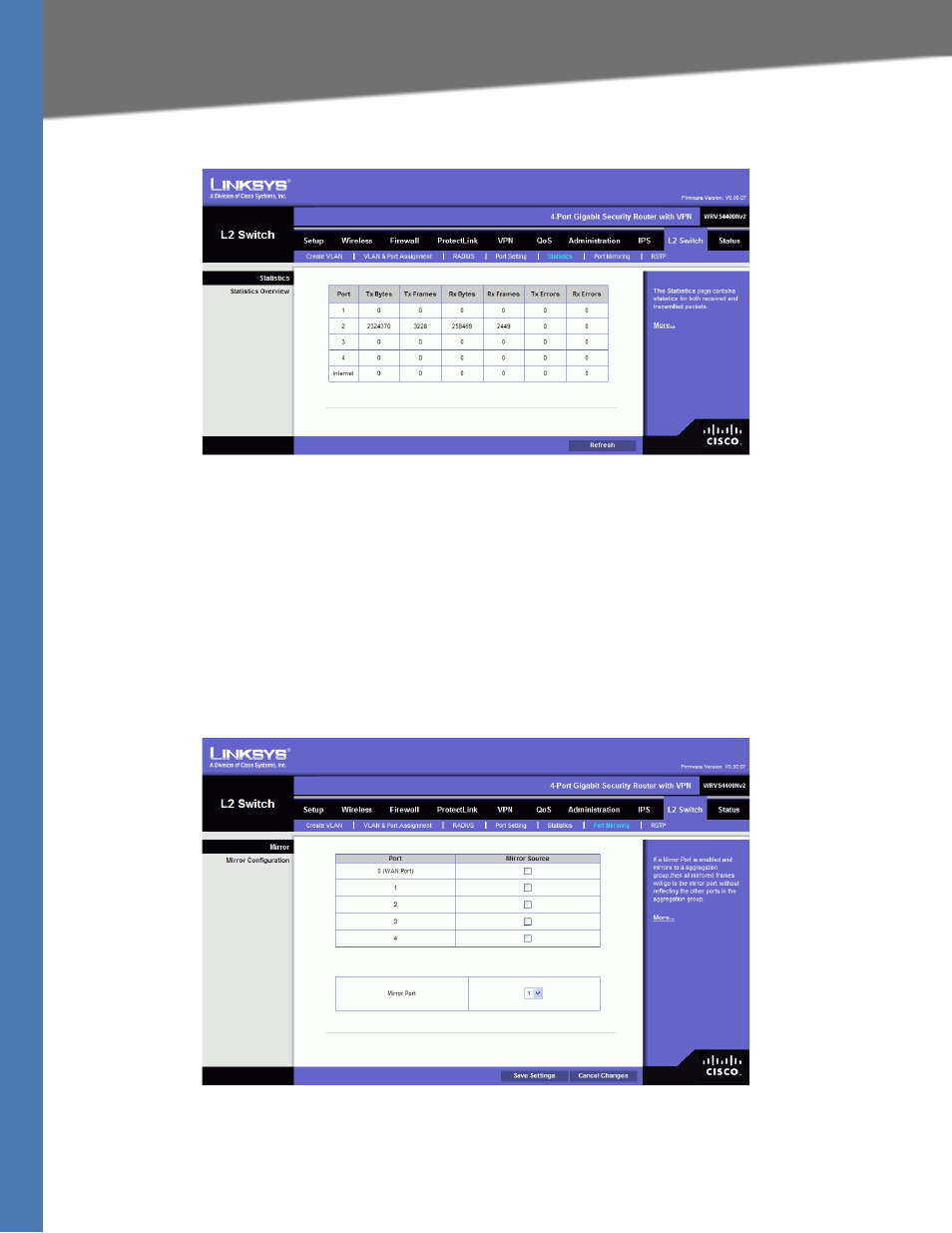

Statistics Overview
Tx Bytes—Displays the number of Bytes transmitted from the selected port.
Tx Frames—Displays the number of Frames transmitted from the selected port.
Rx Bytes—Displays the number of Bytes received on the selected port.
Rx Frames—Displays the number of Frames received on the selected port.
Tx Errors—Displays the number of error packets transmitted from the selected port.
Rx Errors—Displays the number of error packets received from the selected port.
Port Mirroring
Mirror Source—Enable or disable source port mirroring for each port on the Router. To enable
source port mirroring on a port, check the box next to that port. To disable source port
mirroring on a port, leave the box unchecked. The default is disabled.
