WRVS4400N User Guide 63
Firewall Tab
Setting Up and Configuring the Router
Use the settings on this screen to establish an access policy. Selecting a policy from the drop-
down menu will display that policy's settings. You can then perform the following operations:
• Create a Policy—see instructions below.
• Delete the current policy—click the Delete button.

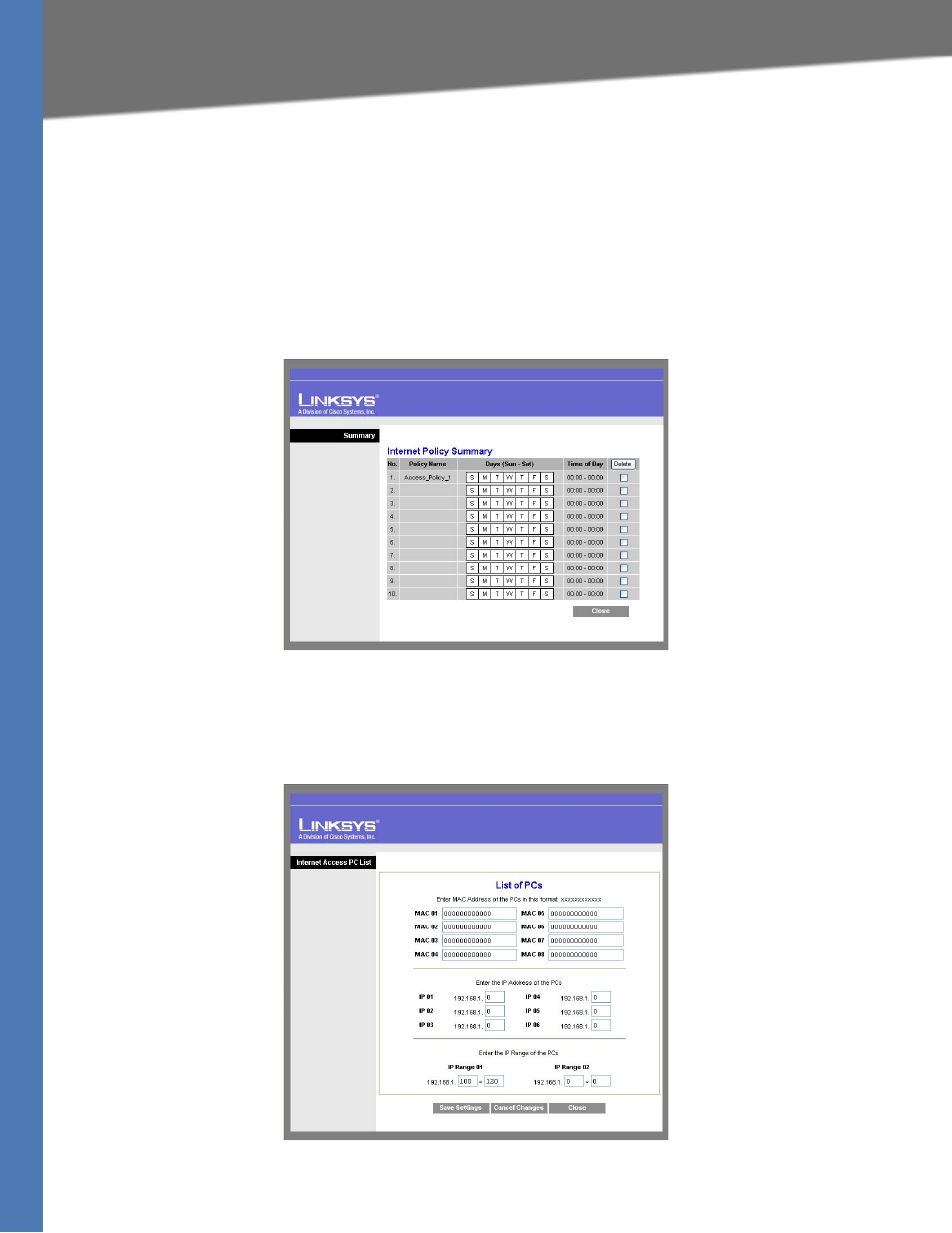

• View all policies—click the Summary button. On the Summary screen, the policies are
listed with the following information: No., Policy Name, Days, Time, and a checkbox to
delete (clear) the policy. To delete a policy, check the checkbox in the Delete column,
and click the Delete button.
• View or change the PCs covered by the current policy—click the Edit List of PCs
button.
On the List of PCs screen, you can define PCs by MAC Address or IP Address. You can also enter
a range of IP Addresses if you want this policy to affect a group of PCs.
