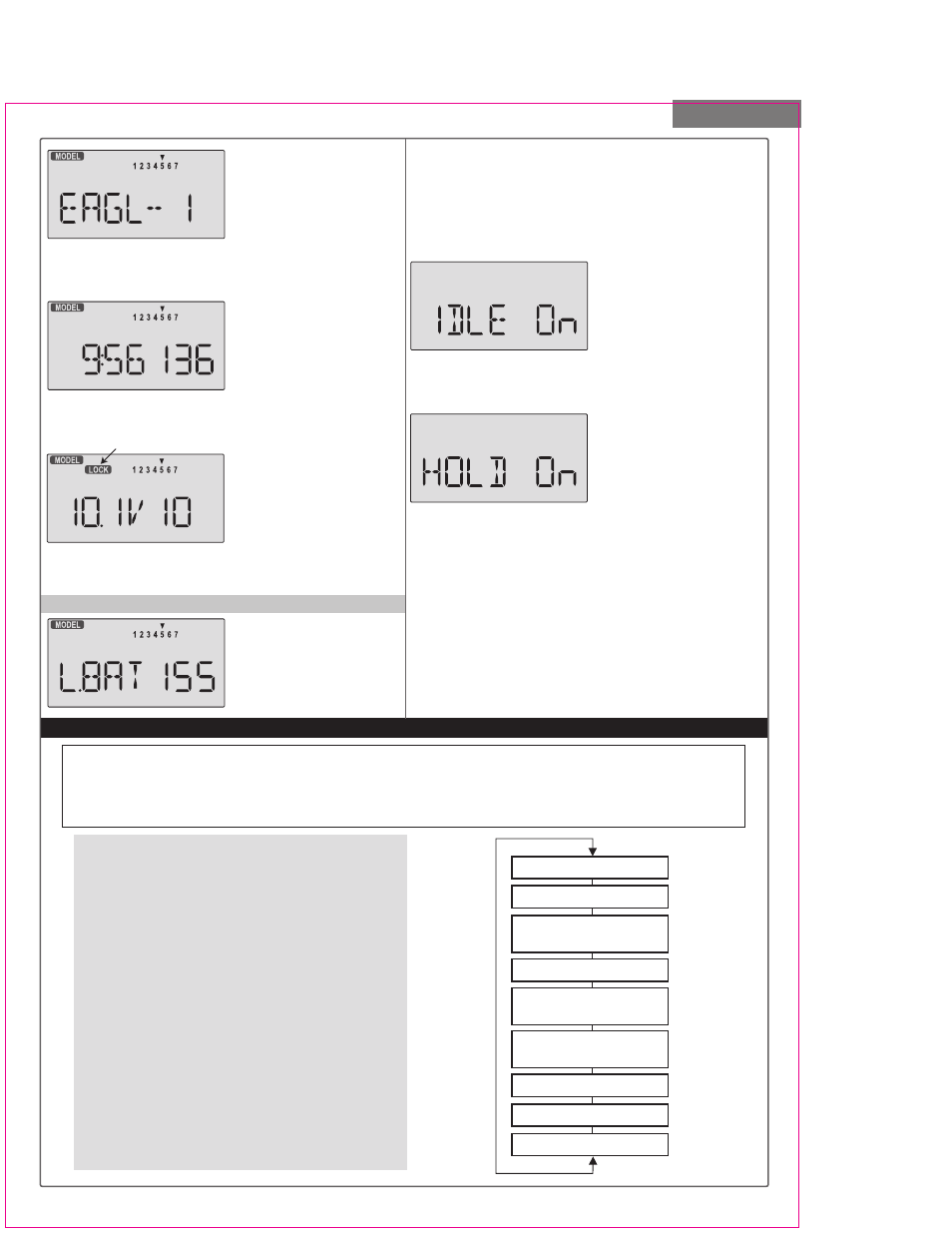

The operating time is still shown on the right. If you reset
this each time you charge the system, you will have a
good idea of how long you can safely operate.

WHEN THE BEEPER SOUNDS, LAND YOUR MODEL AS

SOON AS POSSIBLE BEFORE LOSS OF CONTROL DUE

TO A DEAD TRANSMITTER BATTERY.

The IDLE ON warning is

displayed when the trans-

mitter is powered up with

the Idle-up switch on in the

helicopter mode only.

You can turn this off by moving the Flt. Mode switch back.
For your safety, the transmitter will not broadcast until this
alarm is ended.

The HOLD ON warning is

displayed when the trans-

mitter is powered up with

the Throttle hold switch on

in the helicopter mode only

when throttle hold values are programed.
You can turn this off by moving the Flt. Cond. switch
back. For your safety, the transmitter will not broadcast
until this alarm is ended.

The LOW BATTERY warn-

ing is displayed when the

transmitter battery voltage

drops below 9.3 volts, and

a beeper will beep.

Pressing the Up button

again gives the Model

Name display. If you've

named your model, it will

appear here so you can be

sure you have recalled the correct memory. If you do not
name the model, you'll have to remember which model
memory it's stored within by the memory number.

Pressing the start/stop

button gives the Timer

display, with a stopwatch

display on the left, and

operating time on the right.

This also starts the timer, so hit the start/stop key again
to stop it. Hitting the Cursor Left (Off) button resets the
timer and returns you to the display mode.

Pressing the Lock button

locks the throttle servo

and holds it where you

last commanded it. This

may be used as a safety

feature when you are carrying the model and transmitter
to ensure you don't accidentally give throttle. It is shown
by the LOCK indicator.

Model Setup Functions

9

Model Setup Functions

This section describes the model setup functions that are used to choose all of the operating features of a
particular model memory. These functions are used to select the model memory, the model type (from air-
planes, gliders, and helicopters), set the stopwatch, and other useful functions. These functions are used
to set up a new model or a new model memory, to switch between memories, and to change transmit shift.

Map of Basic Menu Functions (see right)

M.SEL Model select

10

COPY Data Copy

10

ACRO Acrobatic model mode

10

HELI

Helicopter model mode

10

GLID

Glider model mode

10

2WNG Two Servo Wing (GLID only)

10

4WNG Four Servo Wing (GLID only)

10

NOR

Normal swashplate (HELI only) 10

120'

120'Swashplate (HELI only)

10

180'

180'Swashplate (HELI only)

10

****

Model Name (four letters +

up to three numbers)

11

SFT.N Transmit Shift

11

TIME

Timer setup

12

REST Reset Memory

12

Warning Displays

Power On While Pressing
both Edit/Display keys

Model Select [M. SEL]

Copy Model [COPY]

Model Type

[ACRO] [HELI] [GLID]

Model Name [ABCD-199]

Wing Type (GLID only)

[4WNG] [2WNG]

Swashplate type (HELI only)

[NOR] [120] [180]

Shift Dir. [SFT.N][SFT.P]

Time Setup [TIME XX]

Reset Memory [REST]

LOCK indicator
