6.V-Tail (RUD NAV)
V-tail planes with independent Rudder
for navigation control.
Traditional aircraft
layout with no Aileron
1. Normal
The rudder servo must be connected to
FY-41AP aileron servo output (AIL)
V-tail without aileron 2. Elevons
V-tail servo has to connect to FY41AP
Differential Servo 1 & 2 output.
Airship 4.Normal (RUD NAV)
Due different airship configurations,
use with caution. Carry out test flights
to confirm normal function.

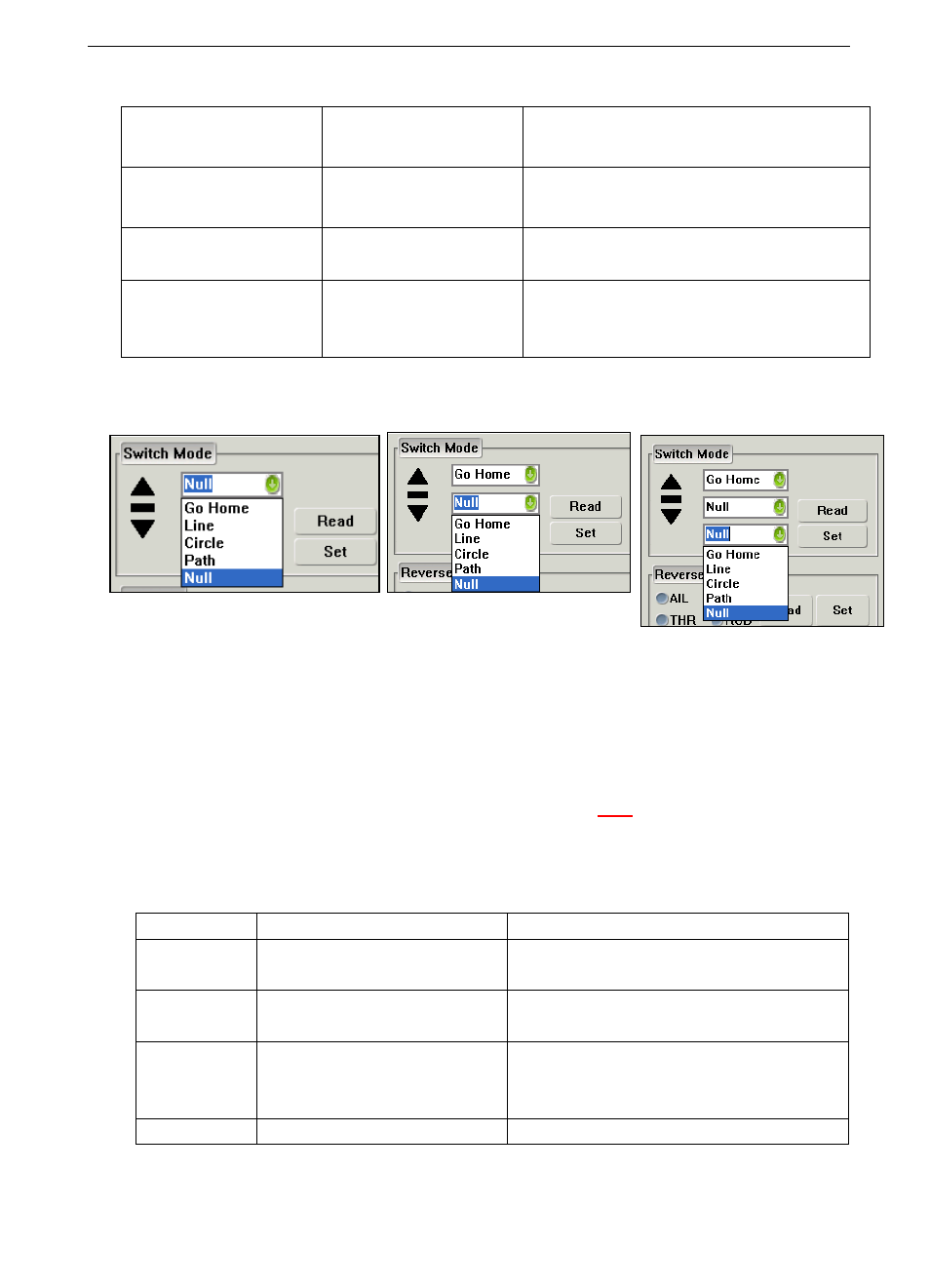

(15) ‘SWITCH MODE’ SW-2 FUNCTION SETTING
(i) The Switch Mode setting allows you to select the function of each
3-Way switch position that controls the SW-2 channel.
(ii) NOTE: SW-2 has priority over SW-1. Only when SW-2 is in the
„Null‟ Mode can SW-1 work. Therefore „Null‟ should be one of the
options for SW-2, otherwise SW-1 will not work.
(iii) For the other two SW-2 switch positions, you can select any of the
following Navigation functions:
SW2 Mode Function Remark
Null SW-2 Deactivated
SW-2 set to NULL, Flying mode is
controlled by SW-1.
Go Home Auto Return To Launch
On activation, plane will automatically
return to launch (RTL) point.
Line
Fixed altitude & Heading
lock flight Mode
With no controlling input from the
pilot, the plane will automatically lock
current heading & maintain altitude.
Circle Auto Circling Mode (ACM) Automatically fly, circling a fixed point.
