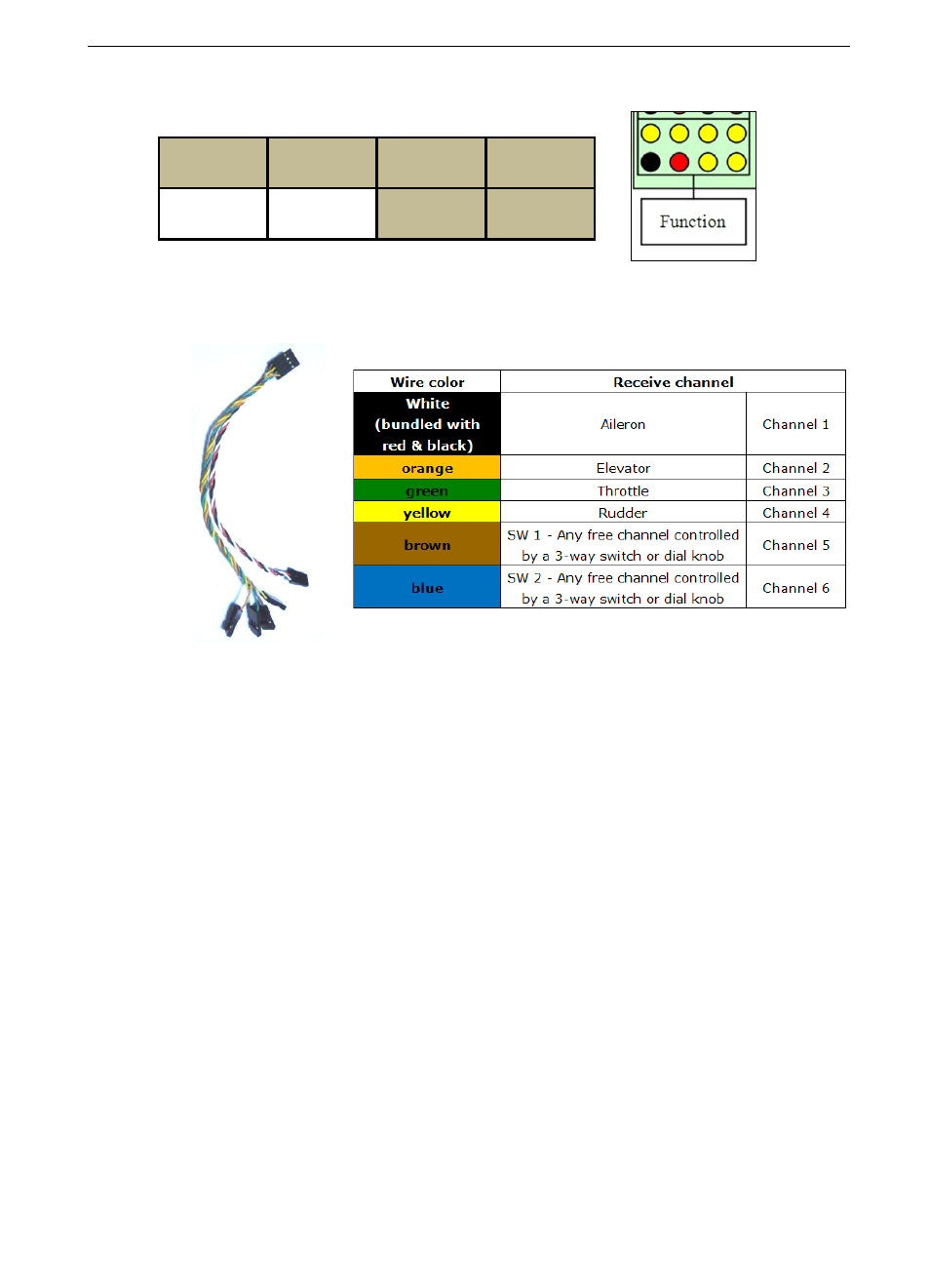

b) FUNCTION PINS connection interface：
SW1 RUD THR ELE
GND VCC AIL SW2
i) The Function Pins connect the FY41AP to your RC Receiver via the
supplied plug and wires. Note the wires are colour coded:
ii) SW1 & SW2: Connect to your RC Receiver channels that will control
the FY41AP flight modes.
iii) RUD: Rudder RC Receiver port (Ch 4).
iv) THR: Throttle RC Receiver port (CH 3)
v) ELE: Elevator RC Receiver port (CH 2)
vi) AIL: Aileron RC Receiver port (CH 1)
vii) VCC : +5V power supplied from FY41AP to RC Receiver.
viii) GND: Connected to RC Receiver GND (–ve).
Connecting the FY41AP to the RC Receiver
(1) FY-41AP requires a minimum of 6-channel RC receiver.
(2) 4 Receiver channels are used for aileron (Ch 1), elevator (Ch 2),
throttle (Ch 3) & rudder (Ch 4).
(3) 2 free Receiver channels are required to control the FY-41AP Flight
Modes via SW1 & Navigation Mode via SW2.
