GuiLin FeiYu Electronic Technology Co., Ltd. http://www.feiyudz.cn E-mail: [email protected]
Page 31
 The software prompts Initialization Success upon complete gyro reset.
 WARNING : Do Not press this Init GYRO button during flight!

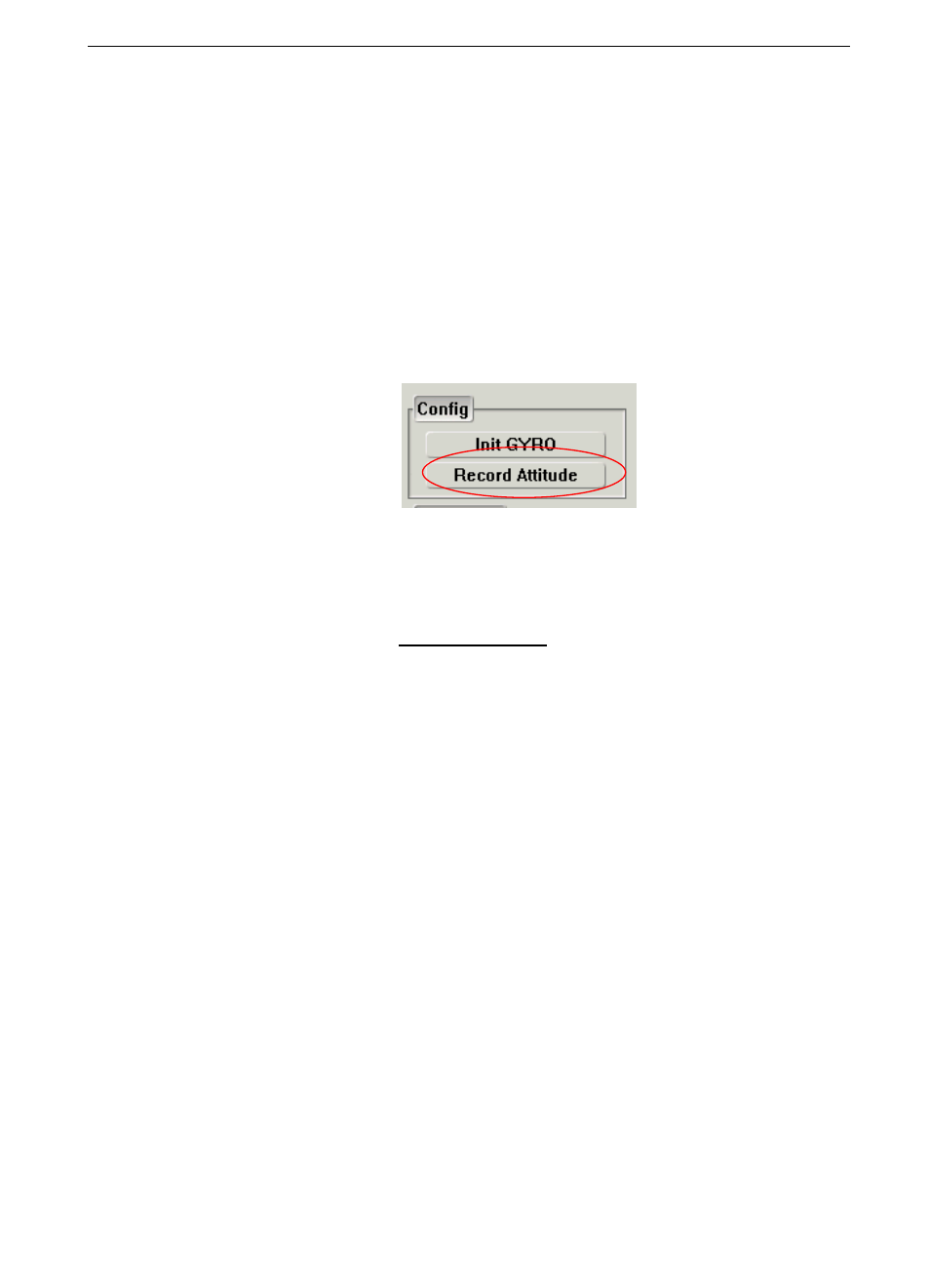

Record Attitude ：
 This function is used to eliminate any installation deviation from the
default „0‟ (zero) horizontal angle. A non horizontal level can cause
Auto Balance Mode flight deviation (Refer FY-41AP INSTALLATION
POSITION in this manual).
 There are two methods to Record horizontal Attitude.
 Method 1 (Basic Method):
(i) Place your plane on a table, and manually adjust the plane position
so that it is perfectly level.
(ii) Connect the FY41AP to your PC (USB red wire removed).
(iii) Power up the FY41AP.
(iv) Connect to Setting Software.
(v) Activate Auto Balance Mode (ABM), check that all control surface
are at neutral. If not, adjust via the servo links.
(vi) Press Record Attitude. The FY41AP have now recorded your
aircraft horizontal position.
 Method 2 (Accurate Method)
(i) In this method, you will need to connect your FY41AP to your field
computer via the FY Data Radio (e.g. FY606).
(ii) Link the Setting Software to the FY41AP via the Data Radios.
(iii) Fly your plane in ABM and adjust trims until the plane flies perfectly
balanced.
(iv) Press Record Attitude. The FY41AP records your aircraft attitude
for perfectly level flight.
