Page 24
SETTING CORRECT SERVO DIRECTION
a) After FY41AP, servos, RC Receiver & ESC / Motor installation, it is time to
test the control surfaces movement and ESC function.
b) Power up the system and check that the servo direction (ailerons, elevator,
rudder, differential servo, ESC / Motor function, etc.) using your RC
Transmitter.
c) If the direction is not right, go to your radio transmitter menu and reverse
the channel as done normally.
AUTO BALANCE MODE (ABM) SERVO MOVEMENT CHECK & SETTING
a) After the above is completed, it is time to check the automatic stabilized
servo movement.
b) Activate the Stabilized Mode via your RC Transmitter 3-Way switch (SW1).
c) Observe Automated AILERON movement


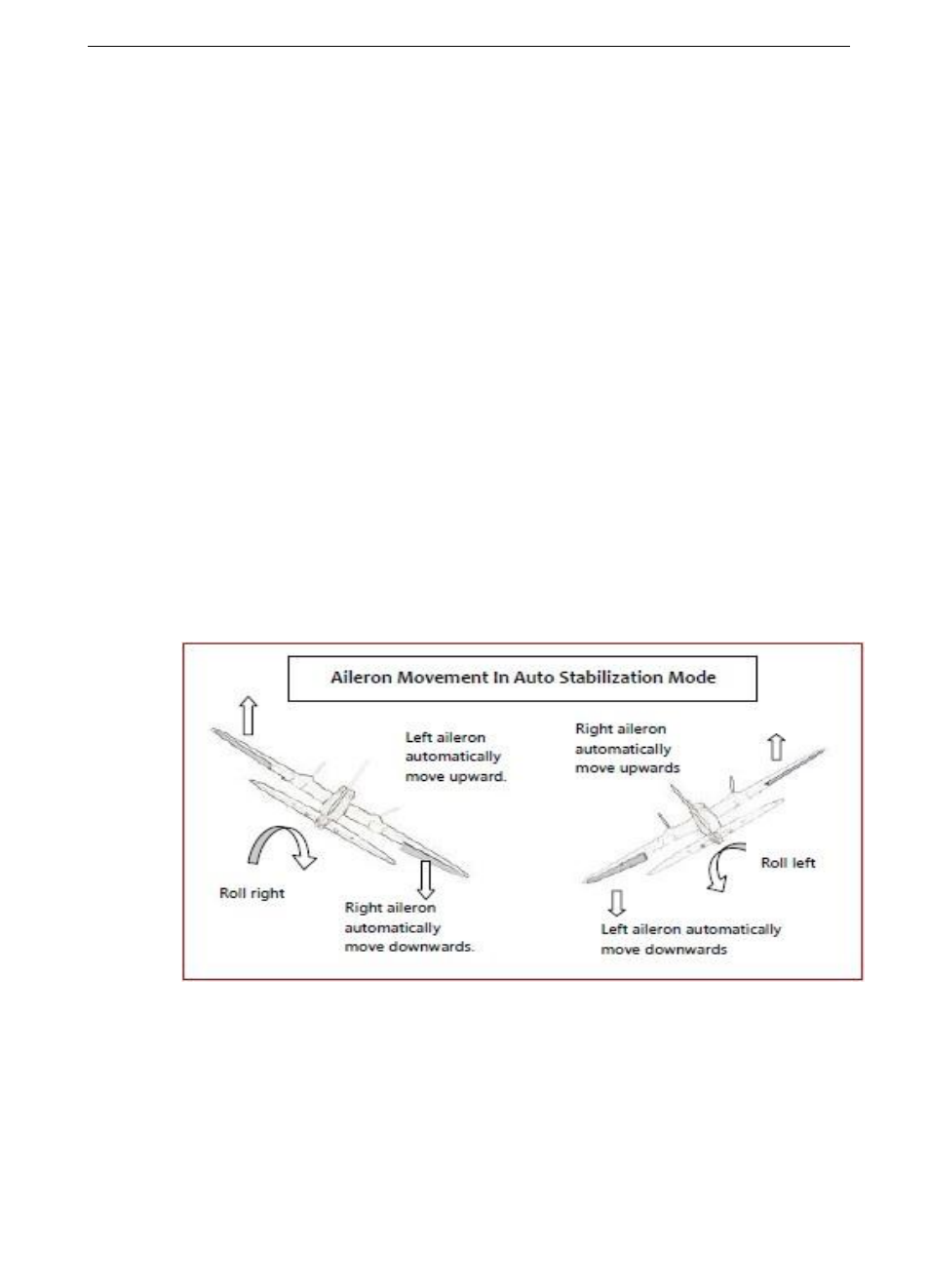

Roll the plane as shown below and observe the servo movement:

RIGHT Roll the plane & the right aileron should automatically move
downwards, while the left aileron moves up.

LEFT Roll the plane & the left aileron should automatically move
downwards, while the right aileron should move up.
