Page 12

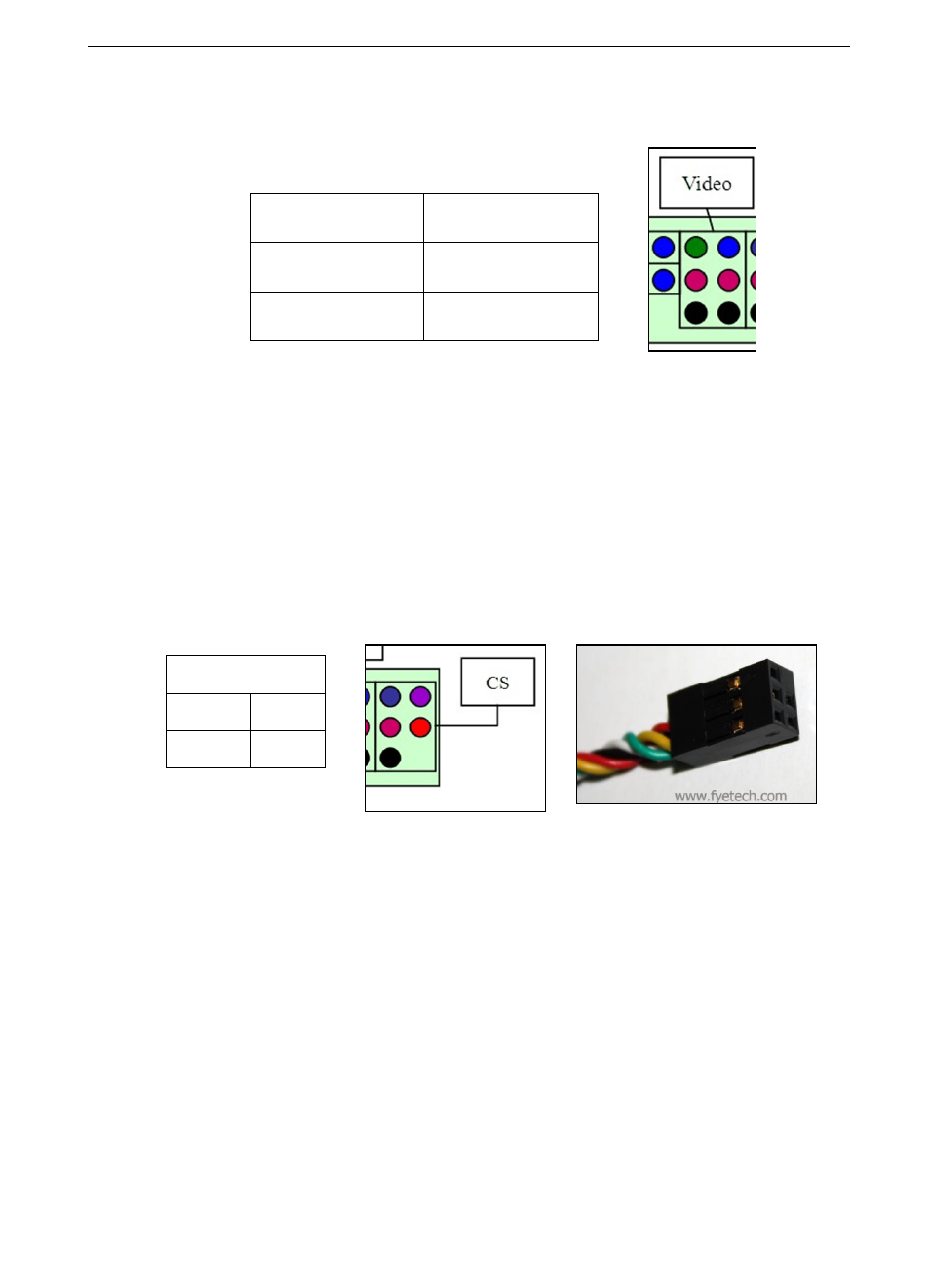

e) Video Signal In/Out interface：
V-out V-in
12V 12V
GND GND
a) V-out：connect to video transmitter
b) V-in： connect to FPV Camera video output
c) 12V： 12 Volt output supply to video transmitter and camera
( make sure your equipment is rated 12 volts! )
d) GND：connect to video transmitter or camera –ve.
e) CS (Current Sensor) interface：
CS
12V VCC
GND
a) CS : Two pin interface for Current Sensor Data .
b) 12V : Provides + 12V power to FPV Camera and video
Transmitter
c) VCC : Provide +5V power to FY41AP, RC Receiver, GPS
Module & Data Radio
d) GND : Connect to Ground (-ve)
