FeiYu Tech FY-41AP User Manual
Page 12
GuiLin FeiYu Electronic Technology Co., Ltd. http://www.feiyudz.cn E-mail: [email protected]
Page 11

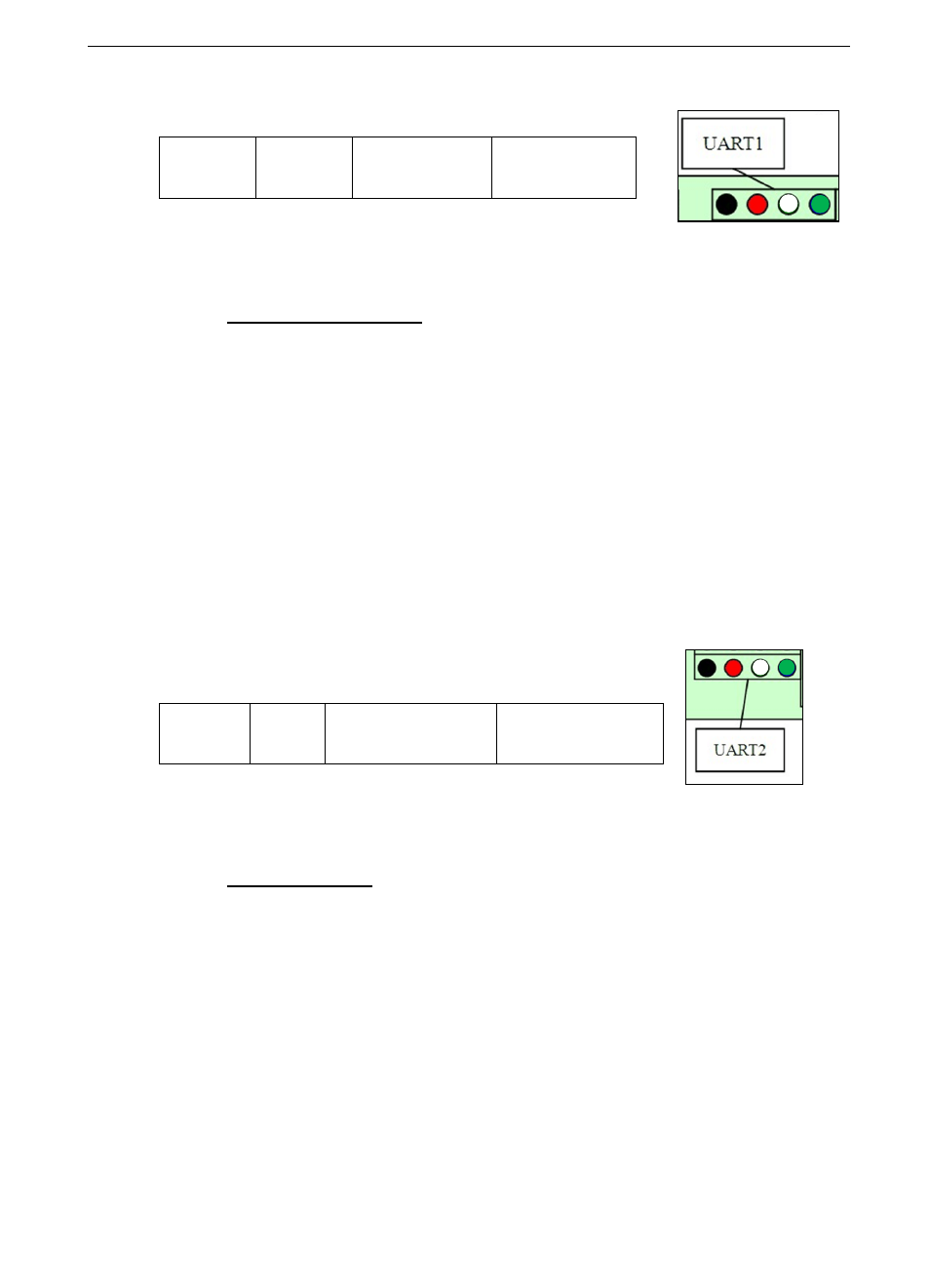

c) UART1 module interface：
GND
VCC
UART1-TXD
UART1-RXD
This port is used to:
Connect to your PC via supplied USB cable to update the FY41AP
autopilot firmware.
Connects to FY Data Radio for communication via FY-GCS
a) UART1-TXD ： TX port.
b) UART1-RXD ： RX port.
c)
VCC
：
+5V output port to power Data Radio or input
power via PC USB supply (during firmware
upgrading).
d) GND
：
GND output port.
d) UART2 module interface：
GND
VCC
UART2-TXD
UART2-RXD
This port is used to:
Connect to your PC via supplied USB cable to update the FY41AP
OSD firmware.
a) UART2-TXD
：
TX port.
b) UART2-RXD
：
RX port.
c)
VCC
：
+5V input via USB supply
(during firmware upgrading).
d)
GND
：
GND output port.
