FY-41AP LED instruction
a) FY-41AP outputs 3 LED colors to indicate flight modes: red, blue and green.
b) It also outputs white for Gyro resetting.
c) Examples of LED flashing indication:
green LED flash means GPS location has been fixed (>4 satellites)
Red & blue flashes working modes.
While static and in any flight mode the LED flashes purple light, this
indicates the module needs a Gyro Reset.

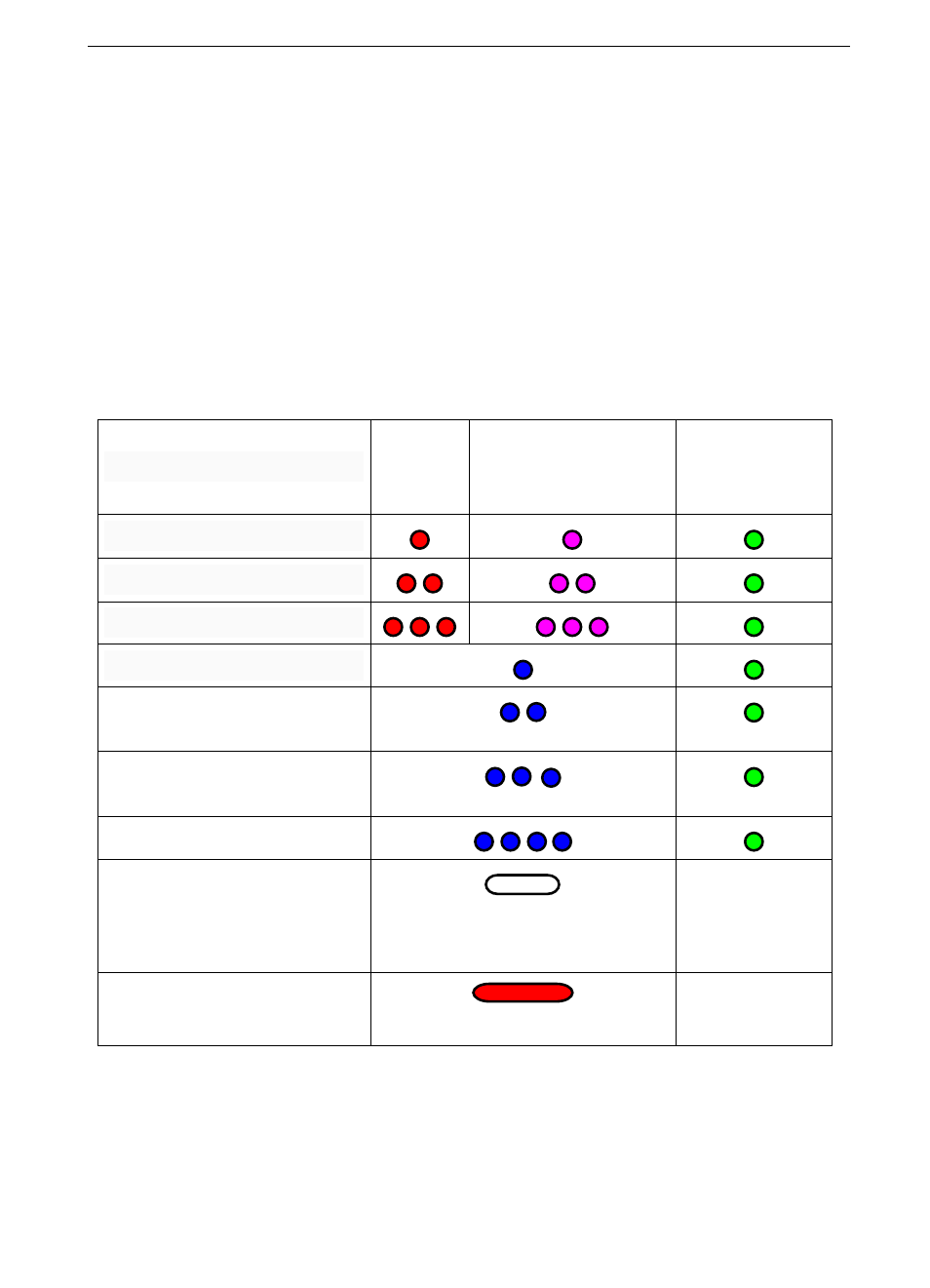

Operating Mode
LED
Gyro Needs Reset
or module senses
movement
GPS lock
(>4 Satellites)
Manual Mode
Stabilized Mode
3D Mode
Return To Launch Mode
Fixed Altitude & Heading
Lock Flight Mode
Preset Path & Waypoint
Navigation Mode
Auto Circling Mode
During Gyro reset
Flash white light for one
second
Too much vibration
Red light Stay on solid
