FeiYu Tech FY-41AP User Manual
Page 27
GuiLin FeiYu Electronic Technology Co., Ltd. http://www.feiyudz.cn E-mail: [email protected]
Page 26

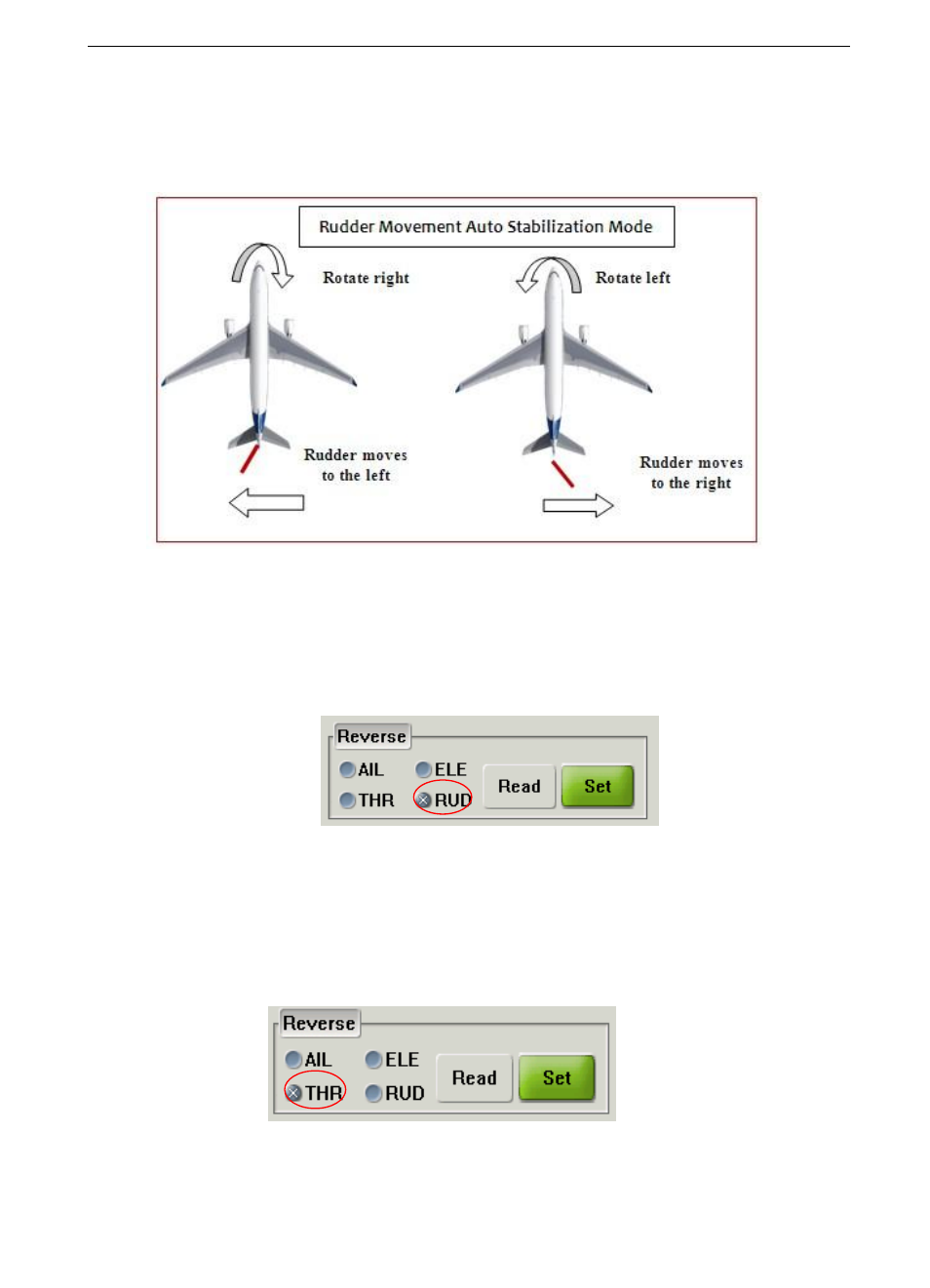

e) Observe Automated RUDDER movement
● Rotate the plane as shown below:
CLOCKWISE rotate your plane & the rudder should move to the Left.
COUNTER CLOCKWISE rotation & the rudder should move to the Right
If the servo movement is incorrect, reverse via the setting software or
OSD.
f) ESC/ THROTTLE CONTROL SURFACE MOVEMENT CHECK
Check that the throttle function is normal in Autobalance Mode.
If the ECS / Motor does not activate normally, reverse the ESC signal
output via setting software or OSD.
