EXFO FVA-3150 Variable Attenuator User Manual
Page 35
Setting Up Your Variable Attenuator
Variable Attenuator
29
Selecting and Using an Attenuation Display Mode
Any value within the attenuation range may be selected as the reference.
When Reference mode is enabled (by selecting Ref):
the current absolute attenuation setting becomes the reference value
and appears in the lower portion of the display; and
0.000 dB (relative attenuation) is displayed in the upper portion of the
display.

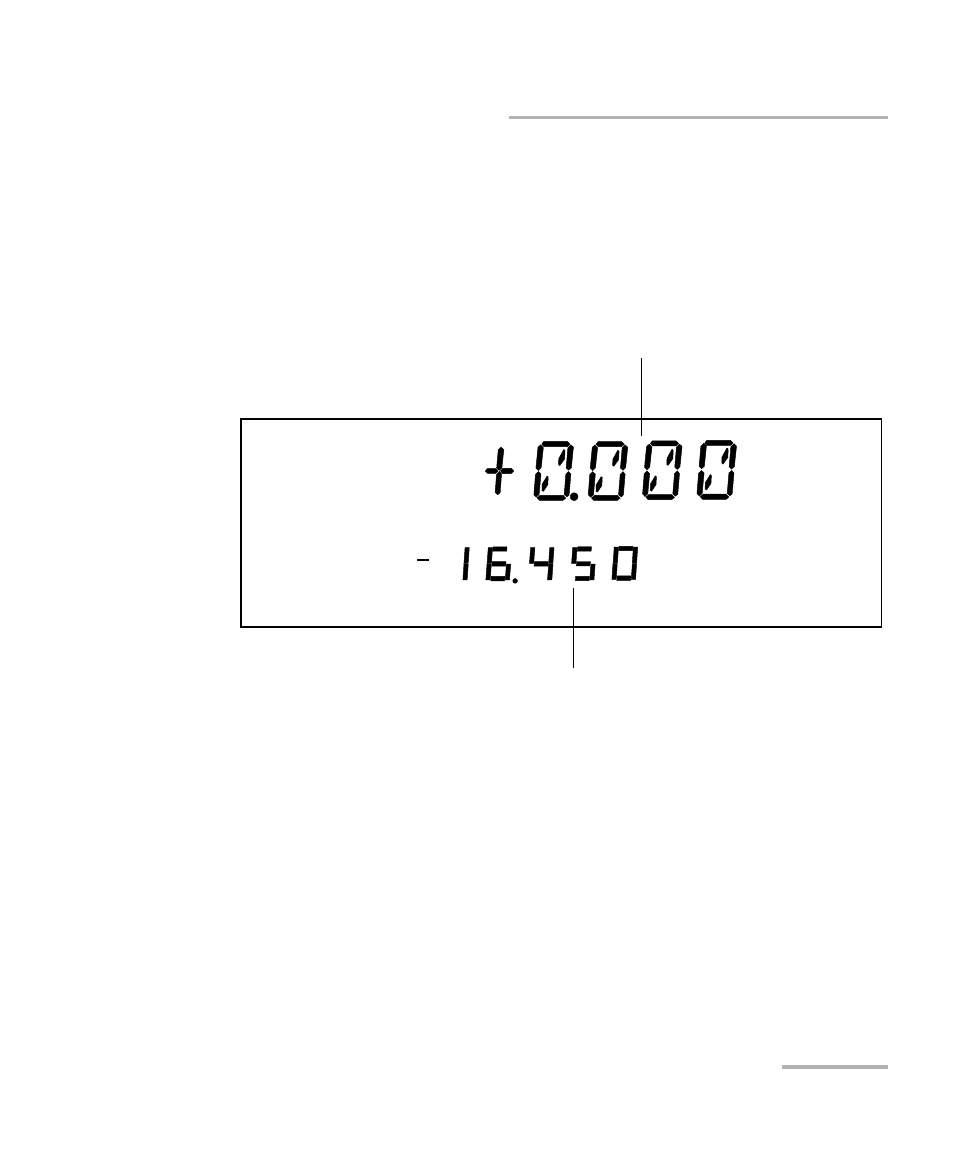

If the attenuation is increased by 1.0 dB, the upper digits (relative
attenuation) will display -1.000 dB and the lower digits (absolute
attenuation) will indicate -17.450 dB.
dB
Ref
dB
Relative attenuation
Absolute attenuation
