Getting Started With Your
Variable Attenuator
Installing your FVA-3150 Variable Attenuator
in a Rackmount

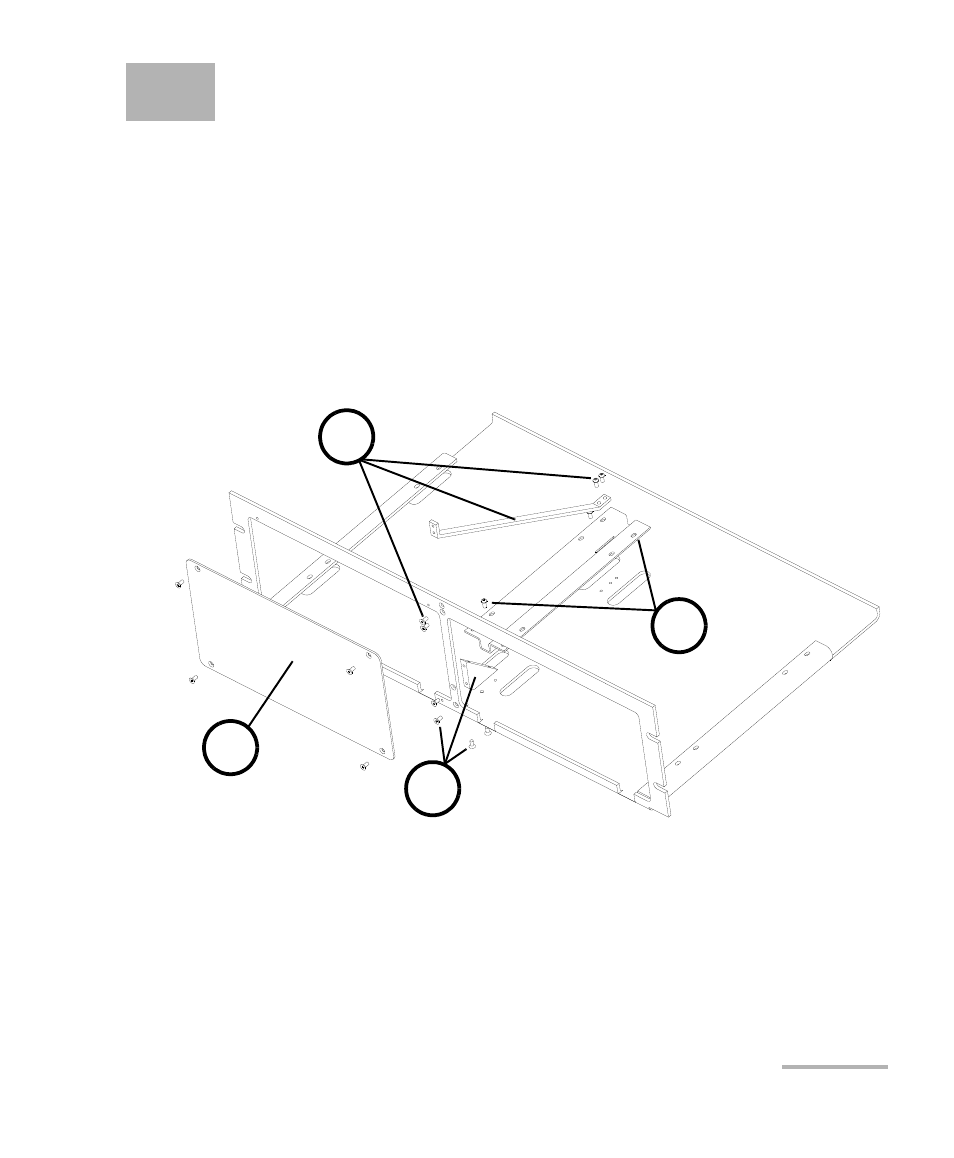

You can place your FVA-3150 Variable Attenuator in a rackmount to
facilitate its usage.
To install the rackmount:
1. Fix the angle iron using four flat Phillips screws.
2. Fix the rackmount bracket to the frame using two round Phillips
screws.
3. Fix the rackmount stiffener using two flat Phillips screws (for the front
panel) and two round Phillips screws.
4. If your rackmount will contain only one unit, fix the rackmount cover
plate to the empty part of the frame using four flat Phillips screws.
2
3
4
1
