EXFO FVA-3150 Variable Attenuator User Manual
Page 18
Getting Started With Your Variable Attenuator
12
FVA-3150
Installing your FVA-3150 Variable Attenuator in a Rackmount
To install your FVA-3150 Variable Attenuator in a rackmount:

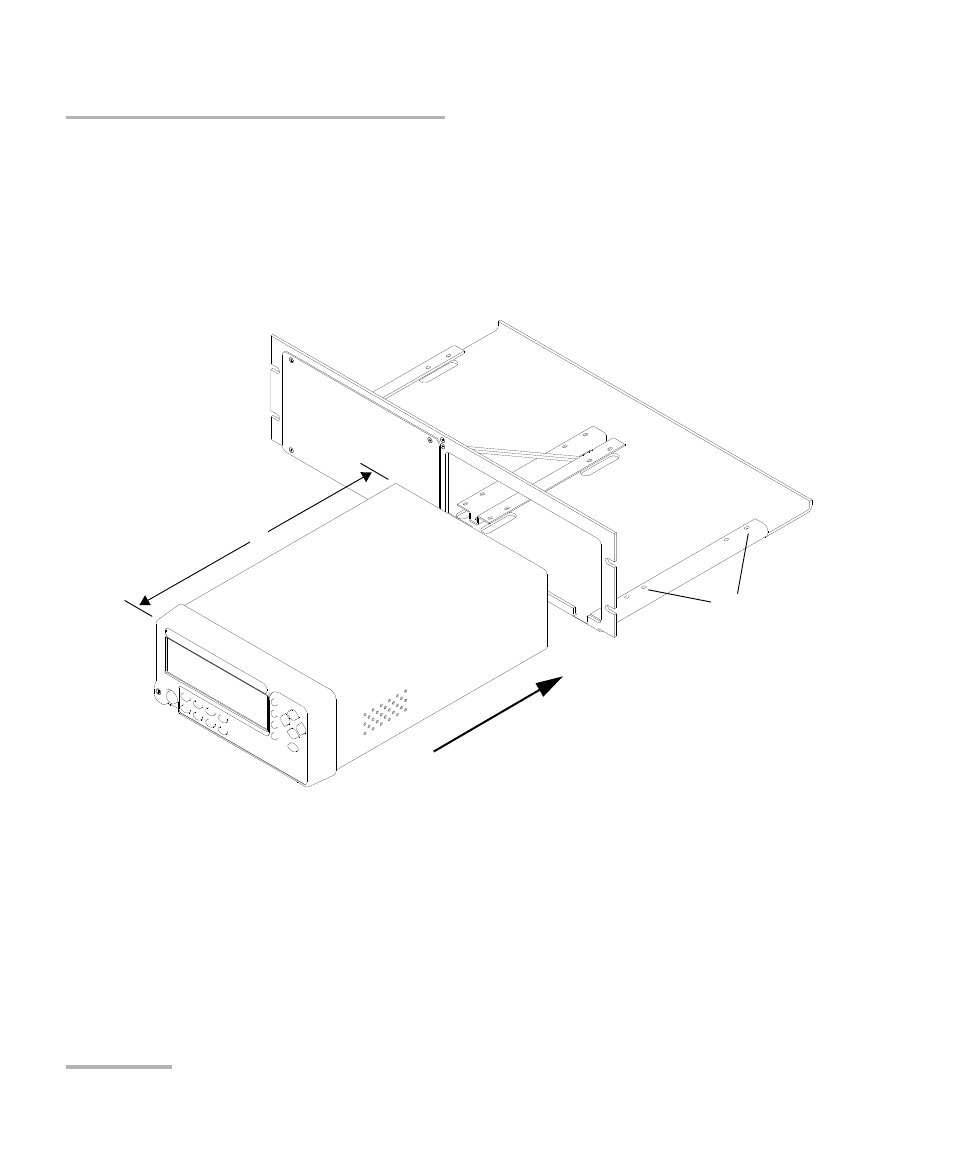

1. Slide the benchtop unit into the rackmount and tighten it from
underneath using the four cover fixing screws.
If measurement X on the illustration exceeds 11.125 in., fix the unit into
the four holes identified as A. Otherwise, use the other four holes.
2. If a second benchtop is to be installed, remove the cover plate and
repeat step 1.
X
A
